Our team is happy to fulfil custom orders, offer special bulk discounts you cannot get from the website. Please get in touch today to discuss your needs.
Product Details
| Length | Width | Thickness | Sqm / Sheet | Box Quantity | Sqm / Box |
| 1000mm | 550mm | 10mm | 0.55 | 28 | 15.4 |
| 600mm | 550mm | 10mm | 0.033 | 28 | 9.24 |
| 1000mm | 350mm | 10mm | 0.35 | 28 | 9.8 |
| 550mm | 350mm | 10mm | 0.1925 | 56 | 10.78 |
| 250mm | 350mm | 10mm | 0.087 | 56 | 4.9 |
| 150mm | 350mm | 10mm | 0.052 | 84 | 4.41 |
| 50mm | 350mm | 10mm | 0.0175 | 252 | 5.25 |
- All sizes can be used on floors, walls, ceilings, roofs and terraces.
- The 550 mm wide sizes are particularly suitable for indoor installations where frame pitch 60 is used (the internal distance between upright and upright is 550 mm).
- The 350 mm wide sizes are particularly suitable for outdoor installations where the 40 pitch of the structure is used. (the internal distance between upright and upright is 350 mm).
Isolcore CZ Panels represent the next generation of thermal insulation technology. These advanced CZ vacuum panels are engineered to deliver outstanding thermal performance, combining extremely low thermal conductivity with an innovative structure that’s impermeable to gas and steam. By dramatically reducing the mobility of air inside, these vacuum insulated panels maintain their insulation properties and structural integrity over time, even at low pressures.

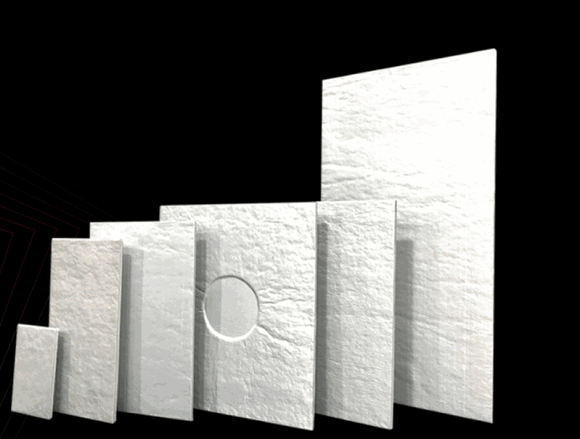

Isolcore vacuum panels consist of a pressed mineral component which is vacuum-packed by a special casing. The core of the CZ panel is mainly made of glass fiber and while the special casing consists glass fiber fabric and aluminum, which makes it much more resistant to cut and erosion, compared to all other vacuum panels currently on the market.
Vacuum Insulation Panels are deprived of the air inside them to obtain very low pressures: this process greatly reduces the mobility of the few air molecules remaining. In this way, the thermal conductivity decreases reaching values even lower than 0.002 W/mK. Reducing the air inside the panels the result is a reduction in energy transmission by thermal conduction, radiation and convection which is due to the high insulation standard of the product. This process removes the air’s thermal conductivity and the warm transfer obtaining a highly insulating product. Isolcore CZ Panels are rated A2 for fire resistance, providing added safety in critical applications.
Benefits:
The main advantages od th Vacuum Insulation Panels are the following:
- Its high insulating performances ( 20 times higher than those of traditional insulation products) significantly lower energy costs
- Its low depth, it is the most thinniest high performing insulation.
- Its thermal performance are lasts 3 times longer over the time than traditional insulation products
- It can be placed also on those buildings that must follow some restrictions related to the landscape they are located in, their history or to the environment laws of their Country
Key Benefits:
- Ultra-low thermal conductivity for superior thermal insulation
- Advanced vacuum panels with a sealed barrier impermeable to gas
- Maintains performance by reducing the mobility of air inside
- Compact, short depth design ideal for space-constrained areas
- Durable construction combining fiberglass, EPS, and vacuum technology
- Excellent fire resistance (A2)
- Reliable insulation that stands up to length over time
- Flexible installation system compatible with multiple substrates
Applications:
Isolcore Cz panel is highly recommended in the construction field to insulate:

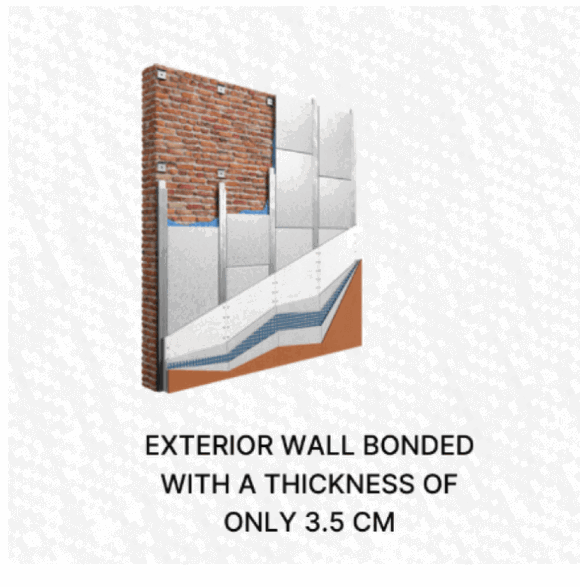

- Exterior walls (behind a false wall - total figure of thickness 3-3.5 cm)

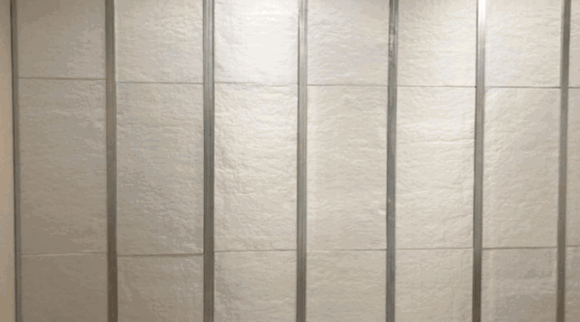

- Interior walls (behind a false wall - total figure of thickness 2.5 cm)

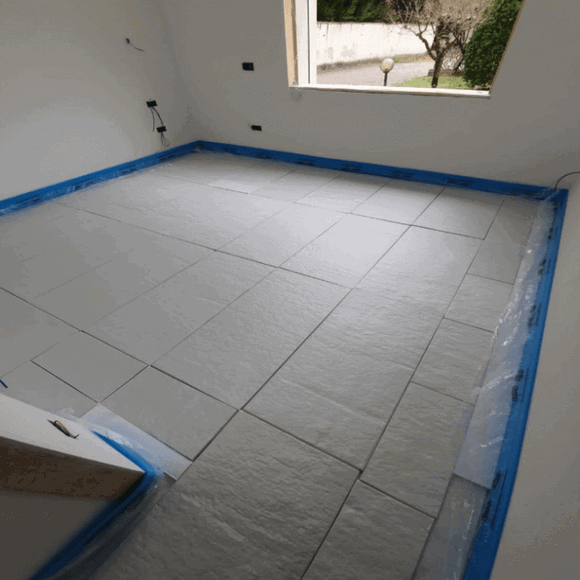

- Terraces floors
- Ceiling/garage
- Undersceed (with or without underfloor heating)
For Installation Manuals please contact us
- Isolcore CZ panels are designed to be the world's most thinest and best performing insulation
- They have ~20 times better insulation compared to traditional insulation.
- Its Thermal conductivity of just 0.002 W/mK*, saves energy and costs like no other insulation
- Ideally used to insulated external walls, internal walls, Terraces floors and ceilings
- Please note - For non-box quantities, pelase get in touch. Lead time 7-10 working days.
- For 13mm, 20mm and 30mm vacuum insualtion panels, please get in touch
- For Installation Manuals please contact us
| Insulation Type | Vacuum Insulated panels |
| Brand | Isolcore |
| Material | Fibreglass Core |
| Thickness | 10 mm |
| Thermal conductivity (K-Value) | 0.002 W/mK |
| Fire Rating | Class A2 |
| Compressive Strength | 140 - 180 kPa |
| Density | 400 kg/m3 |

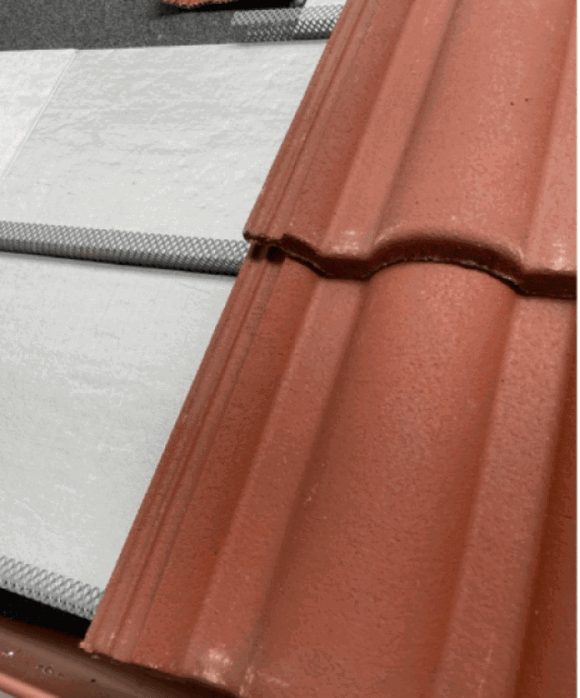

| Applications | Roof, walls (internal and exterior), floor |
| Lead Time | 7-10 working days |
| Order Value | Delivery Charges |
|---|---|
| Any | Free Delivery |
Returns & Refunds:
- Once your order is confirmed, orders cannot be cancelled
- Replacements and returns are applicable only in case of Damaged products.
- In case of damages, please get in touch via email with photos of the damaged insulation, we will advise accordingly
