Rockwool Fire Barriers effectively prevent the passage of fire and inhibit the spread of smoke within roof and ceiling voids. The fire protection boards offer excellent fire resistance, thermal and acoustic insulation to the applications. It is made of stone wool and has a galvanised wire mesh which is stitched to one side.
The fire proof insulation board by Rockwool is developed to prevent the spread of flames and inhibit heat and smoke through concealed spaces in buildings. They effectively absorb any airborne sound, providing acoustic insulation. The fire protection boards are long-lasting, do not rot or sag over time. The fire barriers can be fixed quickly with concrete decks, timber and steel, meaning they reduce installation time and costs.
Product Specifications:
|
Length(m) |
Width(m) |
Thickness(mm) |
Pack Coverage (m2) |
|
4 |
1 |
50 |
4 m2 |
|
3.5 |
1 |
60 |
3.5 m2 |
Key Features:
- The fire barrier by Rockwool is Patented ‘quick-fit’ system for up to 1-hour fire resistance
- Fire protection boards are suitable for void heights up to 10.5 meters
- They provide acoustic insulation and protect against airborne sound.
- The fire resistant boards are flexible, easy to install and accommodate movement
- They enable quick installation - thereby reducing installation cost and time.

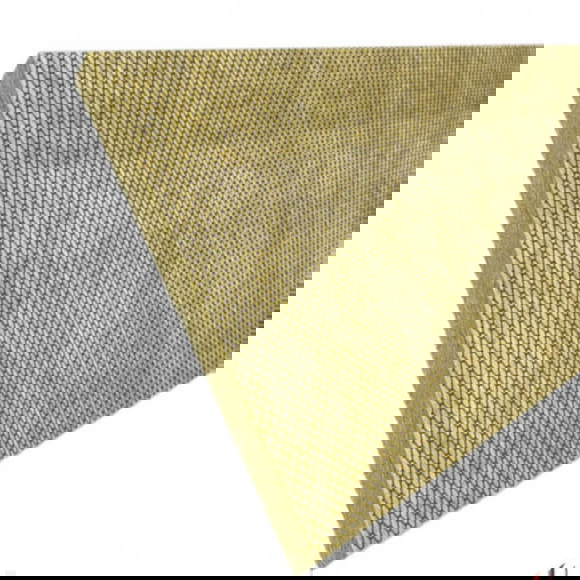

- The galvanised steel mesh of the fire barrier enhances its strength.
Applications:
Fire protection boards can be used on:
- Pitched roof voids
- Head of the wall
- Concealed ceiling spaces
- Multiple substrates
- Fire protection of structural steelwork
Product Details:
- Reaction to Fire: Euroclass A1 - Fire Barrier and Fire Barrier Slab
- Acoustic Performance: up to 50dB
- Material: Rock wool
- Rockwool fire barrier gives excellent fire resistance.
- Sizes available: 4m x 1m x 50mm and 3.5m x 1m x 60mm
- Long-lasting insulation does not sag or slump over time.
- Gives superior thermal and acoustic insulation
- Easy to install and carry.
- Fire boards are strengthened by galvanised steel mesh.
| Insulation Type | Fire Barrier |
| Brand | Rockwool |
| Length | 4m and 3.8m |
| Thickness | 50mm and 60mm |
| Width | 1m |
| Fire Classification | Euroclass A |
| Material | Rock wool |
| Acoustic Performance | up to 50dB |
| Free Collections Available |
|---|
| Save on delivery charges and collect the order for free from a warehouse near you. Just choose the In-Store Pickup option at the checkout or call: 03303130245 |
| Free pick-up locations include - Dundee, Glasgow, Birmingham, Cardiff, Dagenham, Fareham, Washington, Newmarket, Nottingham, Leeds and Bristol |
| Delivery Terms | |
|---|---|
| Order Value (Excluding VAT) | Delivery Charge (Excluding VAT) |
| No Minimum Order | Free delivery within 25 miles of Erdington, Birmingham |
| Above £620 | Free Delivery |
| £185- £620 | £50 |
| Below £185 | £100 |
Product Availability:
We stock Rockwool insulation in select warehouses across the UK. You are requested to please fill out the form above or call us if you are interested in purchasing the product from us.
We will share a no-obligation quote as soon as possible with you and you can proceed accordingly if you like our prices.
Returns:
- You can cancel the order anytime before we confirm your order via email and get a full refund.
- Cancellation after order confirmations are sent may attract a restocking fee.
- If this Rockwool fire barrier is no longer required/ordered in excess, we can collect the same from you. A restocking fee may apply. You are requested to inform us by the same via email or call within 21 days from the date of receipt.
- In case of faulty or damaged products, please email us and we will assist you accordingly
Please refer to our delivery information page for more information
Verified Buyer
Rockwool Stone Wool Fire Barrier is designed to improve fire safety in construction projects. With an impressive fire resistance rating of up to EI 120, it's suitable for ceiling voids, partition walls, and timber trusses. Each unit measures 1000mm x 3700mm with a thickness of 50mm, covering 3.7m² while weighing 500 kg/m². This fire barrier meets rigorous European safety standards and is compatible with pipes and cables. It can be easily installed using metal hammer fixings and Rockwool Firepro Acoustic Sealant. For a deeper understanding of its applications and installation techniques, you might find the following details helpful.
Key Takeaways
- Rockwool Stone Wool Fire Barrier offers fire resistance ratings up to EI 120, ensuring effective fire protection in various applications.
- The product is suitable for installation in ceiling voids, partition walls, timber trusses, and concealed spaces.
- With a foil face on both sides, it enhances durability and flame resistance while providing effective insulation.
- Installation is flexible, utilizing metal hammer fixings and Rockwool Firepro Acoustic Sealant for improved fire and sound performance.
- The fire barrier complies with European fire safety standards and UK building regulations, ensuring reliability for construction projects.
Product Overview
The Rockwool Fire Barrier system is specifically designed to meet the rigorous demands of fire stopping applications. This innovative solution comes in various dimensions, with a standard size of 1000mm x 3700mm and a thickness of 50mm.
It's engineered for effective fire resistance, boasting a rating of up to EI 120*. The foil face on both sides boosts durability and improves resistance to flames and smoke, making it a reliable choice for your projects.
When it comes to installation techniques, you'll find that the Fire Barrier is perfect for concealed spaces, such as above plasterboard partitions and within timber trusses. This strategic placement helps inhibit the spread of flames, ensuring safety within your building.
Each unit covers an area of 3.7m² and weighs 500 kg/m², making it a substantial option for various construction needs.
Applications and Usage
When protecting your building from fire hazards, the applications of the Rockwool Fire Barrier stand out for their versatility and effectiveness.
This innovative solution can be installed in various locations, ensuring robust fire resistance across diverse structural designs. You can easily incorporate it into concrete soffits, voids above plasterboard partitions, and even timber truss constructions, whether parallel or perpendicular.
Here are some key applications you might consider:
- Ideal for ceiling voids and partition walls, mitigating fire risks in concealed spaces.
- Compatible with service penetrations, allowing seamless integration with pipes and cables.
- Improves fire safety in doorways by pairing with fire-resisting single leaf timber door sets.
- Offers flexible installation techniques suited to multiple construction scenarios.
Technical Specifications
Designed for high-performance fire stopping applications, the ROCKWOOL Fire Barrier boasts a fire resistance rating of up to EI 120*. This makes it an excellent choice for those who prioritize safety and durability in their projects.
The Fire Barrier is available in dimensions of 1000mm x 3000mm, making it versatile for various installation techniques.
Weighing in at just 3.8 kg/m², the product is easy to handle, while its standard thickness of 50mm provides effective insulation. If you're looking for improved durability, consider the foil-faced variants like the Fire Barrier Plain 60mm, designed specifically to inhibit the spread of heat and smoke in concealed spaces.
When you compare performance, the ROCKWOOL Fire Barrier is classified to BS EN 13501-2:2016 and tested under BS EN 1364-1:2015 for non-load bearing walls, ensuring its reliability in critical situations.
Compliance and Safety Standards
When considering ROCKWOOL Fire Barriers, it's essential to understand the compliance and safety standards they meet.
These products are rigorously tested and certified under various fire safety regulations, ensuring they provide effective fire resistance.
You can access detailed technical data sheets and compliance certifications to help you make informed decisions for your construction projects.
Regulatory Compliance Requirements
Regulatory compliance is essential for ensuring the safety and effectiveness of construction materials, and ROCKWOOL Fire Barriers excel in this area.
These barriers adhere to various regulatory frameworks, which helps you navigate compliance challenges with confidence. The products are classified under BS EN 13501-2:2016, ensuring they meet European fire safety standards.
Here are some key compliance features of ROCKWOOL Fire Barriers:
- Tested under BS EN 1364-1:2015 for fire resistance in non-load bearing walls.
- Complies with BS EN 1634-1:2014+A1:2018, relevant to door and shutter assemblies.
- Meets UK building regulations, making them suitable for diverse construction projects.
- Adheres to BS476 Part 6 & 7 Class O Standard, preventing fire spread and smoke development.
Fire Safety Certifications
Fire safety certifications play an essential role in ensuring that construction materials like ROCKWOOL Fire Barriers meet the highest safety standards. These certifications provide you with confidence that the products you choose are tested and verified for their fire resistance capabilities.
The ROCKWOOL Fire Barrier, for instance, is classified to BS EN 13501-2:2016, demonstrating compliance with rigorous fire safety regulations.
During the certification process, it undergoes extensive testing. It's been evaluated under BS EN 1364-1:2015 for non-load bearing walls, proving its effectiveness in preventing fire spread. Additionally, it meets UK building regulations, making it versatile for various construction applications.
Recognized for its performance in door and shutter assemblies, the product is also evaluated per BS EN 1634-1:2014+A1:2018. With a remarkable fire resistance rating of up to EI 120, it improves safety in building designs significantly.
Product Testing Standards
ROCKWOOL Fire Barrier products undergo rigorous testing to guarantee compliance with established safety standards, providing you with peace of mind in your construction projects.
These products are designed with fire performance in mind, ensuring they meet vital safety benchmarks.
To understand how these barriers perform, here are some key testing methods they undergo:
- Classified to BS EN 13501-2:2016, confirming their fire performance standards.
- Tested under BS EN 1364-1:2015 for non-load bearing walls, showcasing their fire resistance capabilities.
- Evaluated per BS EN 1634-1:2014+A1:2018 for door and shutter assemblies, ensuring versatility in various applications.
- Compliance with UK building regulations, reinforcing their safety credentials on a national level.
With fire resistance ratings up to EI 120, subject to specific application conditions, you can trust that *ROCKWOOL Fire Barrier products are built to protect.
These testing methods and standards not only improve the safety of your projects but also contribute to a sense of belonging, knowing you're using reliable materials that prioritize protection.
Your construction efforts deserve the best, and these products deliver just that.
Transitioning to Fire Barrier EN
As the construction industry evolves, staying updated with the latest standards is essential.
Shifting to Fire Barrier EN, which launches on May 15, 2024, offers significant conversion benefits. By adopting this new product, you guarantee compliance with the latest fire safety measures, which improves the overall safety of your projects.
The older Fire Barrier certification expires on May 1, 2024, leading to a six-month discontinuation period before the older product is formally retired on November 15, 2024.
Updating your project specifications to Fire Barrier EN not only streamlines your product range but also simplifies the installation process.
With clear installation tips, you can navigate the change smoothly, guaranteeing that your team is well-prepared and confident in using the new product.
Fire Barrier EN's improved features support better compliance with updated regulations, benefiting both current and future projects.
Related Products and Resources
Explore related products and resources that boost your fire barrier installations and overall project efficiency.
By integrating these items into your project, you can improve your fire safety measures and streamline your installation techniques.
Here's a handy list of products to consider:
- Fire Barrier Lacing Wire: A 0.5kg coil, approximately 103m long, priced at £5.70, perfect for securing fire barriers.
- Aluminium Foil Tape: This self-adhesive roll measures 100mm x 45m and costs £11.25, ideal for sealing installations effectively.
- M6 x 50mm Metal Hammer Fixings: Sold in packs of 100 for £18.49, these fixings guarantee secure installation of Fire Barrier products.
- Rockwool Firepro Acoustic Sealant: Available in boxes of 25 tubes for £57.38, it improves both fire and acoustic performance.
When you compare these products, you'll notice how they work together to create a robust fire barrier system.
Understanding the installation techniques associated with each product will help you achieve superior results.
Frequently Asked Questions
Can ROCKWOOL Be Used as a Fire Block?
Yes, you can use Rockwool as a fire block. Its impressive fire resistance and insulation properties make it an excellent choice for protecting spaces while ensuring your environment remains safe and comfortable for everyone.
Does ROCKWOOL Provide Fire Protection?
Yes, Rockwool provides excellent fire protection, offering impressive fire resistance while also enhancing thermal insulation. You can trust it to create safer spaces, ensuring your peace of mind in every construction project you undertake.
How to Install a Rockwool Fire Barrier?
When installing a fire barrier, follow these installation tips: keep the area clean, cut to fit snugly, and securely attach it. You'll enjoy improved safety and peace of mind, knowing you're protecting your space effectively.
What Is the Difference Between ROCKWOOL and Stone Wool?
You'll find that "rockwool" and "stone wool" refer to the same material. Both offer excellent insulation properties, but rockwool products are tailored for specific applications, enhancing performance in thermal, acoustic, and fire-resistant contexts.
Conclusion
In summary, rockwool stone wool fire barriers offer effective fire protection for various applications. Their technical specifications guarantee compliance with safety standards, making them a reliable choice for construction projects. Shifting to Fire Barrier EN can improve your building's safety measures. By considering related products and resources, you can further boost fire resistance in your designs. Ultimately, choosing rockwool stone wool fire barriers is a smart decision for improving safety and performance in any structure.a
