By insulating your floor, you can save nearly 10% on energy bills. XPS foam boards are the most cost-effective way to save energy and money. Made with extruded polystyrene these XPS boards have a low thermal conductivity that does not let heat pass through the fabric easily. Hence they save both energy and money.
Their high compressive strength nearly 30tonnes/m2, makes them ideal for load-bearing application, meaning they are perfect for floor and underfloor insulation. They can be simply laid on the surface in a staggered arrangement if employed with the underwood heating aluminium foil method.
Prowarm XPS underlays can also be used with underfloor heating mat systems on concrete/screeded floors. They, however, should not be used on timber substrate floors with a ceramic tiled finish.
XPS insulation boards are easy to install and light in weight. They are unaffected by moisture due to their hydrophobic nature. They are dimensionally stable. XPS boards do not support the growth of moulds or develop rot as they are not made of any organic material.
Product Specifications:
- Length: 1200mm
- Width: 600mm
- Thickness Available: 6mm, 10mm, 20mm, 30mm and 50mm
- Coverage/board: 0.72sq.m
- Thermal Conductivity: 0.035W/(m.K)
- Working Temperature: -50 - +75
- Compressive Strength: ≥ 300 - ≥ 700 kPa
Key Features:
- XPS boards give superior thermal insulation
- They have high compressive strength making them ideal for underfloor and floor insulation applications
- Water-resistant XPS boards. They are hydrophobic in nature
- Lightweight extruded polystyrene insulation. Easy to install.
- Cost-effective floor insulation solution.
- Please note the Prowarm XP-Pro cannot be plastered over the top of.
Applications:
Prowarm XPS insulation boards are ideal for:
- Underfloor Insulation
- Floor Insulation
- Can also be with underfloor heating mat systems on concrete/screeded floors.
Installation:
Depending on the type of heating system being installed, different ProWarm XP-PRO Board installations are possible.

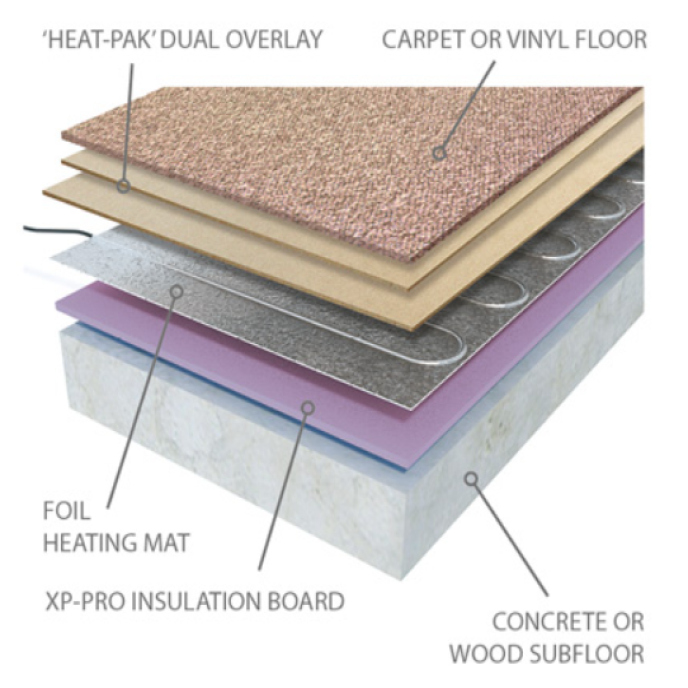

They are simply installed in a staggered brick bond pattern for our underwood heating system, and then the heating mat is placed on top.

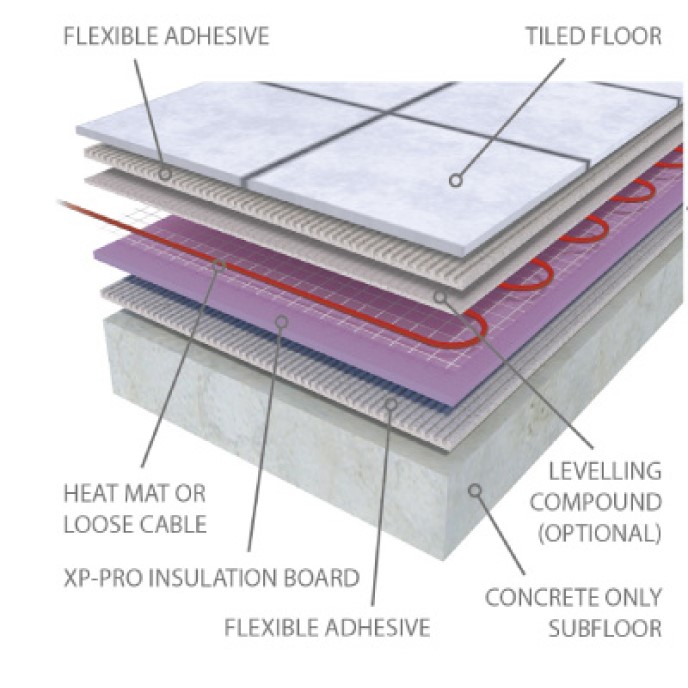

For under-tile systems, the boards must adhere to the subfloor with a suitable flexible tile adhesive (this is in the case of concrete subfloors only)
| Insulation Type | Insulation Board |
| Brand | Prowarm |
| Material | Extruded polystyrene |
| Product Code | Prowarm XP-PRO |
| Length | 1200 mm |
| Width |
600 mm |
| Thickness | 6mm, 10mm, 20mm, 30mm and 50mm |
| Board Coverage | 0.72 sq.m |
| Thermal Conductivity | 0.035 W/mK |
| Service Temperature | -50 - +75 °C |
| Compressive Strength | ≥ 300 - ≥ 700 kPa |
| Reaction To Fire | Euroclass E |
| Application | Floor and underfloor insulation |
| Order Value | Delivery Charges (Excluding VAT) |
|---|---|
| Any Order Value | £4.2 anywhere in the Mainland UK |
Returns and Cancellations:
- You can cancel your order and get a full refund before we confirm your order via email.
- Orders cancelled after the email confirmation is sent, may attract a restocking fee.
- You are welcome to return the products ordered in excess/no longer required, via post or couriers, provided they are in the original packaging and in a resalable condition within 14 days of delivery. Return requests made after 14 days will not be entertained.
- If wrong products were delivered or delivered items are faulty, please email us and we will assist you accordingly.
For more information, please refer to our Delivery information page
Product Features
- XPS board size: 1200 x 600mm
- Thickness Available: 6mm, 10mm, 20mm, 30mm & 50mm thickness.
- XPS foam gives superior thermal insulation. Thermal Conductivity: 0.035W/(m.K)
- Ideal for underfloor insulation.
- XPS boards have high compressive strength (30tonnes/m2). Ideal for load-bearing applications
- Cost-effective and lightweight polystyrene insulation boards
- Hydrophobic, Water-resistant XPS Insulation
