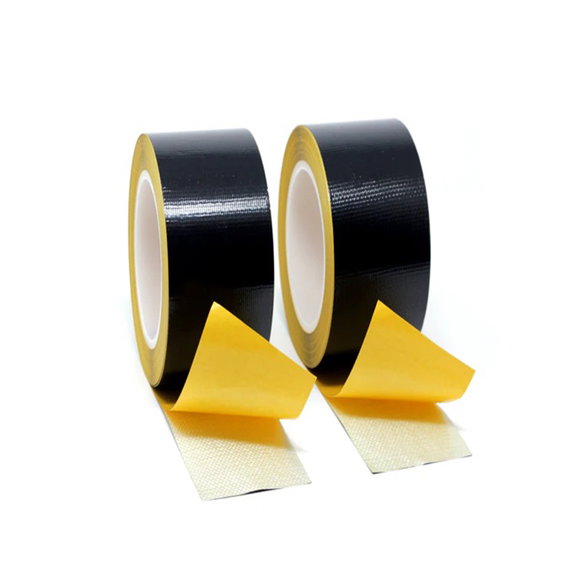

Partel's Echoseal Alu FR is a premium, fire-resistant adhesive tape designed for long-lasting structural protection. It features a heavy-duty aluminium surface finished with a specialized black lacquer, creating an elite barrier against fire, moisture, dust, and environmental wear.
Key Features:
- Advanced Fire Safety: Built on a specialized fire-resistant adhesive that actively resists flame and heat.
- Euroclass Fire Rated: Individually certified as Euroclass B (EN 13501-1).
- Elite System Rating: Achieves a superior Euroclass A2-s1, d0 system rating when paired with the Partel Izoperm Plus FR membrane (covering up to 10% of the surface area).
- Moisture Control: Ensures controlled, regulated water vapour diffusion to protect structural integrity.
- Heavy-Duty Build: Engineered with superior tensile strength, tear resistance, and elite aging resistance.
- Effortless Application: Designed for fast installation across both interior and exterior environments.
Ideal Applications
- Membrane Sealing: Optimised for overlaps on Partel Izoperm Plus FR, Exoperm Mono Duro and Ecofoil membranes.
- Structural Joints: Perfect for sealing critical window and door connections.
- Substrate Compatibility: Delivers maximum adhesion on all Partel aluminium-based building membranes .
Installation Guide
- Prepare: Ensure the surface is dry, free from frost, dust, grease, and loose debris.
- Cut & Peel: Cut the tape to your required length and peel back the protective release liner.
- Apply: Press the tape firmly onto the substrate to fully activate the pressure-sensitive adhesive.
- Echoseal Alu FR is 75mm wide and 25M long.
- This self-adhesive sealing tape provides an airtight, vapour-tight, and waterproof barrier for critical construction joints.
- It is certified under reaction to fire class B-s2, d0.
- Aluminium surface with black lacquer
- Easy to install, can be used both externally and internally
- Works well with Izoperm Plus FR, Exoperm Mono Duro 200 and Ecofoil membrane
| Product Type | Fire rated Adhesive Tape |
| Product Code | Echoseal Alu FR |
| Brand | Partel |
| Length | 25 M |
| Width | 75 mm |
| Material | Aluminium foil/ glass fibre. |
| Reaction to Fire | Euroclass B |
| Tearing resistance | 200 / 300 N |
| Resistance to water penetration | W1 |
| Sd Value | 1500 m |
| Delivery Terms | |
|---|---|
| Order Value (Excluding VAT) | Delivery Condition |
| Orders below £620 | £35 |
| Orders between £620- £1230 | £30 |
| Orders between £1231- £2460 | £28 |
| Orders Above £2460 | Free Delivery |
