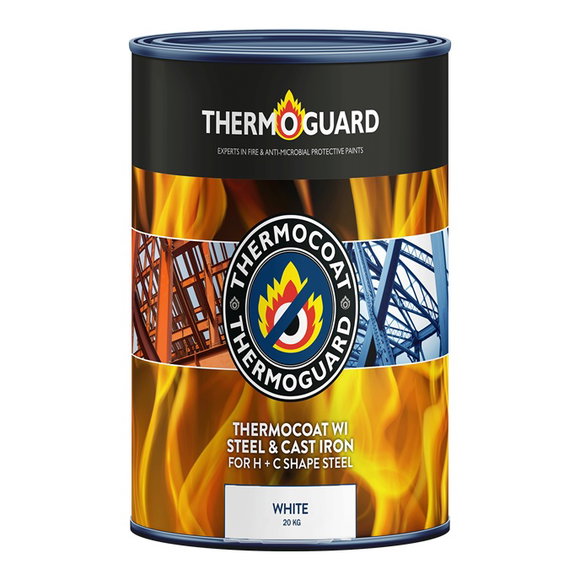

Thermoguard Thermocoat WI is the ultimate water-based intumescent paint system providing essential fire protection to structural steel and cast iron. This high-performance intumescent coating is engineered to offer up to 90 minutes of fire resistance to load-bearing elements of structures, ensuring safety and compliance. When exposed to heat, the paint undergoes a chemical reaction, causing the expansion of an insulating char layer that protects the steel from reaching critical failure temperatures.
Key Features
- Water-Based Formula: Thermocoat WI is a water-based intumescent paint, making it low-odour, 2010 compliant and safe to use in accordance with the manufacturer's instructions.
- Efficient Application: Achieves superior fire protection with a minimum number of coats, saving time and labour costs. The paint may be applied by brush or airless spray.
Uses:
- Thermoguard Thermocoat WI is optimised for Universal Beams, Columns and other open section steel.
- Thermocoat WI is optimised to protect I, channel, shaped steel and hollow bracing
- It is designed for inside use only
Preparation:
Steel and cast iron should be free from rust and millscale and primed with Thermoguard Steel Fire Paint Primer to 75 microns DFT ( or alternative good quality anti-corrosive primer compatible with intumescent paints) in accordance with manufacturer’s
instructions. Treat galvanised surfaces with “T” wash/Mordant solution & prime with zinc phosphate or other primer for steel.
Application Conditions:
- Maximum Relative Humidity 80%
- Minimum ambient temperature 4°C
- Minimum Steel Temperature 3°C above Dew Point
Application:
Thermocoat WI may be applied by brush, roller or airless spray. To achieve the best finish in the shortest time, spray application is recommended. Prior to application the contractor should contact Thermoguard’s Technical Department and obtain a basecoat
application schedule. To assist correct application in accordance with this schedule, a wet film gauge will be supplied with the order. Further wet film gauges will be provided on request.
- Maximum wet film thickness per brush coat – 800 microns
- Maximum wet film thickness per spray coat – 1400 microns
Spray Application:
- Spray Equipment- Airless Spray Pump
- Use equipment recommended by manufacturer for the application of high viscosity intumescent paints.
- Filter size 30 mesh. 10mm hose 3/8” diameter with no whip end.
- Tip Size 319, 321, 419, 421
- Care should be taken to clean filters regularly. Cleaning should be undertaken with water.
Important - Please Note:
All orders/ enquiry must complete the specification form so the correct product/products/ quantities can be specified. These forms will align with building control and fire certification requests. Please send the filled form to [email protected]
- Thermacoat WI is a water-based intumescent paint system, Designed for internal use
- It provides up to 90 mins fire resistance to structural steel and cast iron, requires minimum coats.
- Available in 2.5Kg, 5Kg and 20Kg packs. White colour and Matt Finish
- Thermoguard Thermocoat WI is optimised for internal Universal Beams, Columns and other open section steel.
- Please note - Product is non-returnable. If unsure or if you have any questions, please contact us before making a purchase
| Product Type | Intumescent Paint |
| Product Code | Thermocoat WI |
| Brand | Thermoguard |
| Pack Size | 2.5KG, 5KG, 20KG |
| Application Method | Brush, Roller, Spray |
| Touch Dry | Brush: min. 2 hours/ Spray: min. 4 hours |
| Dry to Recoat | Minimum 4 hours (Brush), 10 Hrs (Spray) |
| Dry for Topcoat | Brush: min. 10 hours/ Spray: min. 48 hours |
| Colour | White |
| Finish | Matt |
| Fire Rating | 90 Minutes |
| VOC Levels | Ultra-Low (5-49 g/l) |
| Application Method | Brush, Roller, Spray |
| For Use On | Steel, Cast iron |
| Dry to Recoat | Brush: min. 4 hours/ Spray: min. 10 hours |
| Water / Solvent Based | Water |
| Steel Specification Form | |
| Order Value | Delivery Charges | ||
|---|---|---|---|
| Up to £370.00 | £12 | ||
| Above £370 | Free Delivery | ||
| Delivery charges are dependent on the distance from our factory in Derbyshire. | |||
