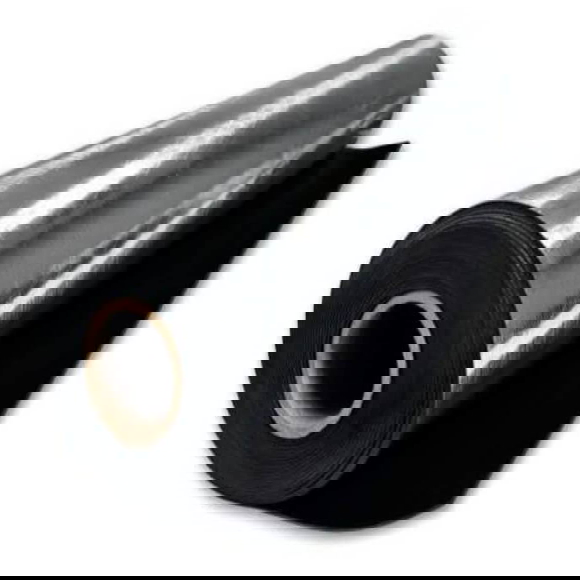

INS AC110 Acoustic Pipe Insulation Wrap, engineered by INS Acoustics Limited, is a high-performance wrap is a self-adhesive membrane supplied on a lightweight roll, ensuring ease of application for applications such as soil and rainwater pipes.
This acoustic pipe insulation roll cosnsits of a nitrile laminate bonded to a layer of viscoelastic butyl with a mylar foil finish. An easy peel release paper protects the self-adhesive backing butyl adhesive. The butyl glue creates a barrier that keeps any possible moisture accumulation at bay.
INS acoustic wrap is thin and flexible pipe insulation wrap that can be easily installed as it adhers to wide range of conventional building materials, including PVC and steelwork. It is class ‘O’ rated and meets the stringent building regulations and sound insulation testing requirements.
INS AC110 soil pipe insualtion is provided ready to use, requires no curing or drying time, and produces an immediate bond around pipes.
Key Features:
-
High Performance : Pipe wrap insulation is designed to offer thermal and acoustic insualtion in every application. The nitrile ruubber offers a thermal conductivity of 0.035 W/mK at 20degC, making sure the pipes retain heat and funtion at optimum capacity.
Furthermore, pipe insulation rolls contain a viscoelastic acoustic membrane technology, providing efficient soundproofing while also acting as a vapor barrier, enhancing overall insulation performance.
-
Self-Adhesive Membrane: The acoustic wrap is a self-adhesive pipe lagging with high-quality butyl adhesive that adheres to quickly and easily to most conventional building materials, including PVC and steelwork. Provides with easy release adhesive backing, it allows for easy installation without the need for additional adhesives or tapes.
- Thin and Flexible: Despite its high-performance capabilities, this pipe insulation wrap remains thin and flexible, making it easy to handle and install even in tight spaces or complex configurations.
-
Compliance and Safety: Meets stringent building regulations and safety standards, including Class ‘O’ fire rating, ensuring peace of mind and compliance with regulatory requirements.
- Long-lasting Performance: Highly durable material designed to withstand the rigors of industrial use, ensuring long-lasting performance and reliability in demanding environments.
Applications:
- INS AC110 is ideally used to insulate and provide sound insulation in rainwater and soil pipes in temperatures not exceeding +90°C.
Installation:
AC110 in most applications is bonded directly to the soil pipe. The product is designed to stick direct as it is also a vibration damping material and reduces the energy from running water. No prior lagging is required.
Depending on the type of pipe, techinique of installation and other factors, for straight pipe runs, the AC110 on its own offers significant soundproofing. If the pipe is to be fully exposed, then we'd also recommend installing a layer of our Acousti-Lag Flex on top of the AC110 at the bends as this is where most of the noise is prominent as the water hits the bends. To further improve soundproofing in soil pipes, you could apply the AC110 and then box the pipe in to enhance the acoustic performance.
| Insulation Type | Pipe Wrap Insulation |
| Brand | INS-Acoustic |
| Code | AC110 |
| Length | 5M |
| Width | 500mm |
| Thickness | 4mm |
| Coverage | 2.5 Sqm |
| Material | Nitrile laminate bonded to a layer of viscoelastic butyl with a mylar foil finish |
| Adhesive | Butyl |
| Thermal Conductivity | 0.035 W/mk |
| Service Temperature | -4°C to +85°C |
| Application Temperature | +5°C to +50°C |
| Fire Ratings | Class O (Nitrile) / Class A (Butyl) |
| Colour | Mylar Finish |
| Application | Used on soil pipes and Rain water pipes |
| Order Quantity | Delivery Charges |
|---|---|
| 1Roll |
£ 30+VAT |
| Pallet Charges thereafter. Apply on all orders | |
Returns, Cancellations and Refunds:
- You are free to cancel your order before we send you an order confirmation email and get a full refund
- Once the order is confirmed and an estimated delivery date is issued via email, Orders cannot be cancelled.
- Incorrectly ordered Goods can be returned within 14 days of delivery at our discretion. The customer is responsible for ensuring the goods are returned back to the address provided, in good condition where they will be inspected prior to processing any refunds.
- For incorrect, damaged or faulty products, please contact us immediately after you receive delivery and we will assist accordingly.
Product Features
- INS AC110 thermal acoustic wrap is 5M long, and 500mm wide. covers 2.5 Sqm.
- It is a cold adhesive nitrile laminate is bonded to a layer of viscoelastic butyl with a mylar foil finish for direct application to soil pipes
- Class 'O' rated insulation wrap, ideally used on rainwater and soil pipes in temperatures not exceeding +90°C.
- Self-Adhesive foil insulation roll for pips that easy adheres to conventional building materials, including PVC and steelwork.
- Pipe wrap insulation offers excellent weather, acoustic and water resistance properties
You May Also Like
Shop now. Pay later.
We support Clearpay. With Clearpay you can Pay it in 4 interest-free instalments.
Subject to credit approval. T&C apply.
Shop now. Pay in 30 days.
We accept Klarna. Pay up to 30 days later. No interest. No fees, when you pay on time.
T&C apply. Credit subject to status.
Customer Reviews
“ Works wonderfully. Extremely happy to have tried this lagging. i will be back for more. Thank you ve...”Daniel S.
Verified Buyer
Our Customers Include
Elevate your space effortlessly with INS AC110 Acoustic Soil Pipe Insulation. Enjoy noise reduction, durability, and easy installation in a self-adhesive 5m x 500mm x 4mm design. The product provides impressive soundproofing benefits and boosts overall acoustic performance. It meets Class 'O' fire rating standards and has a thermal conductivity of 0.035 W/mK at 20°C, ensuring efficient insulation. Lightweight and flexible, it bonds quickly to PVC and steel surfaces for a precise fit. Discover how this insulation solution can create a quieter environment and improve your sound quality effectively.
Key Points
- Highly effective noise reduction capabilities
- Self-adhesive for easy and quick installation
- Durable cold adhesive nitrile laminate construction
- Meets Class 'O' fire rating standards
- Enhances acoustic performance and insulation
Product Features
When assessing the INS AC110 Acoustic Soil Pipe Insulation, you will find an array of impressive product features that improve its performance and versatility. The acoustic advantages of this insulation are truly noteworthy. It efficiently reduces noise, ensuring a quieter environment in your home or workplace. This benefit is especially valuable if you appreciate peace and tranquillity in your surroundings.
Furthermore, the material durability of the INS AC110 insulation is outstanding. Made with a cold adhesive nitrile laminate, this insulation is engineered to endure the test of time. Whether it's rainwater or soil pipes, you can depend on the robustness of this product to offer long-lasting safeguarding. This durability guarantees that you won't need to be concerned about frequent replacements or upkeep, providing you with a feeling of reassurance and peace of mind.
Customer Feedback
If you're thinking about the INS AC110 Acoustic Soil Pipe Insulation, you'll find it helpful to learn about its performance and user feedback.
These details can give you a better idea of the product's advantages and benefits. Hearing from people who have used it can assist you in making a well-informed choice for your acoustic insulation requirements.
Product Performance Insights
Customers are absolutely delighted by the remarkable noise reduction offered by the INS AC110 Acoustic Soil Pipe Insulation. This product excels at reducing noise from rainwater and soil pipes, demonstrating its acoustic effectiveness.
With dimensions of 5m x 500mm x 4mm, this insulation provides extensive coverage for effective soundproofing. The self-adhesive feature makes installation easier, saving time and effort. The butyl adhesive ensures a secure bond to PVC and steel surfaces, increasing longevity.
Furthermore, this insulation meets Class 'O' fire rating and safety requirements, prioritising safety and compliance across different applications. Enjoy the benefits of reduced noise levels and enhanced acoustic performance with the INS AC110 Acoustic Soil Pipe Insulation.
User Experience Highlights
Notable for its ease of handling and installation, the INS AC110 Acoustic Soil Pipe Insulation impresses users with its self-adhesive feature. Customers appreciate the convenience it offers when fitting onto PVC and steel pipes without the need for additional banding.
The insulation's soundproofing benefits, combined with a thermal conductivity of 0.035 W/mK at 20°C, guarantee efficient heat retention and a quieter environment. Additionally, meeting Class 'O' fire rating standards boosts safety and compliance.
Users have reported that the INS AC110 insulation improves overall insulation performance and soundproofing in various applications. Enjoy the handling advantages and soundproofing benefits of this insulation, making it a practical choice for your pipe insulation needs.
Customer Feedback
Customers have praised the INS AC110 Acoustic Soil Pipe Insulation for its excellent product performance and ease of installation.
The insulation has a thermal conductivity of 0.035 W/mK at 20°C, ensuring efficient insulation. Additionally, its Class 'O' fire rating provides reassurance regarding safety.
This product is commended for improving overall insulation performance and complying with strict building regulations for reliability in challenging environments.
Product Performance
When looking for a reliable solution to reduce noise in rainwater and soil pipes, the INS AC110 Acoustic Soil Pipe Insulation stands out with its effective performance. Customers have experienced a noticeable decrease in noise, and the insulation's thermal efficiency, with a thermal conductivity of 0.035 W/mK at 20°C, ensures superb insulation for your pipes. The use of viscoelastic acoustic membrane technology in this product enhances soundproofing, making it an excellent option for those seeking to minimize unwanted noise. Here is a table summarising the key features of the INS AC110 Acoustic Soil Pipe Insulation:
|
Feature |
Description |
Benefit |
|
Noise Reduction |
Significant reduction in rainwater and soil pipe noise |
Creates a peaceful atmosphere |
|
Thermal Efficiency |
High thermal conductivity of 0.035 W/mK at 20°C |
Energy-saving insulation |
|
Fire Safety Rating |
Class 'O' fire rating ensures safety and compliance |
Provides peace of mind regarding safety |
Ease of Installation
For a smooth installation experience, consider the INS AC110 Acoustic Soil Pipe Insulation with its user-friendly self-adhesive design. Customers find this insulation easy to work with due to its lightweight roll and thin, flexible structure, making handling and application a breeze. Save time and materials during setup as no extra banding is needed.
The self-adhesive backing guarantees quick bonding to PVC and steelwork surfaces, allowing for instant placement. Need a precise fit? No problem - simply cut the insulation to size with sharp scissors. These installation tips guarantee a smooth process, while the quick setup feature of the INS AC110 Acoustic Soil Pipe Insulation improves convenience for all your pipe insulation needs.
Technical Specifications
With a thermal conductivity of 0.035 W/mK at 20°C, the INS AC110 Acoustic Soil Pipe Insulation offers efficient insulation performance. This insulation incorporates a viscoelastic acoustic membrane technology for effective soundproofing and meets Class 'O' fire rating standards, ensuring safety and compliance. Designed for temperatures not exceeding +90°C, it is suitable for various applications. The insulation features a thin and flexible construction, allowing for easy handling and installation on PVC and steelwork.
|
Technical Specifications |
|
|
|
Material Composition |
Viscoelastic Acoustic Membrane Technology |
|
|
Acoustic Efficiency |
Effective Soundproofing |
|
|
Temperature Resistance |
Suitable for temperatures not exceeding +90°C |
|
|
Installation Methods |
Easy handling and installation on PVC and steelwork |
|
Installation Guide
To effectively install the INS AC110 Acoustic Soil Pipe Insulation, begin by ensuring the surface is clean and dry. This step is vital to allow the self-adhesive backing to adhere properly.
Start at one end of the pipe and slowly wrap the insulation around it, pressing firmly to secure it in place. As you progress, make sure to overlap the edges slightly for a seamless fit.
For best results, avoid stretching the insulation excessively, as this may impact its soundproofing benefits. Additionally, take care to smooth out any wrinkles or air pockets that may form during installation.
These simple installation tips will help you maximise the soundproofing benefits of the INS AC110 Acoustic Soil Pipe Insulation, providing you with a quieter and more comfortable environment.
Hints for Applying
Consider preparing the surface meticulously before applying the INS AC110 Acoustic Soil Pipe Insulation to guarantee excellent outcomes. Start by making sure the surface is clean, dry, and free from dust, grease, and loose materials. Use sharp scissors to cut the self-adhesive membrane accurately to the required size for a precise fit. After application, press down firmly on the membrane to avoid air bubbles and establish a secure bond. Seal joints with Bostik T303 Self-Adhesive Bright Foil Tape for added protection and insulation. Following the manufacturer's guidelines and recommendations is vital for the best results and effective application.
Soundproofing benefits of the INS AC110 Acoustic Soil Pipe Insulation include reducing noise transmission and improving overall acoustic performance. For maintenance tips, regularly inspect the insulation for any signs of damage and replace if necessary to maintain its effectiveness in soundproofing your space. By following these application tips and maintenance suggestions, you can maximise the benefits of the INS AC110 Acoustic Soil Pipe Insulation and enjoy a quieter environment.
Frequently Asked Questions
How do you soundproof an internal soil pipe?
To soundproof an internal soil pipe, use soundproofing techniques to reduce internal plumbing noise effectively. Select insulation with appropriate thermal conductivity and fire ratings. Apply thin, flexible, self-adhesive material to enhance sound insulation performance on PVC and steelwork.
Should you insulate waste pipes?
You should definitely insulate waste pipes. It helps with noise reduction, maintains water temperature, and improves system efficiency. The benefits of insulation are significant for both your comfort and the longevity of your waste pipe system.
How do you soundproof a waste pipe?
To sound insulate a waste pipe, begin by wrapping it with self-adhesive acoustic insulation. Ensure a snug fit for efficient noise reduction. These do-it-yourself solutions help to make spaces quieter by reducing sound vibrations from water flow, creating a peaceful environment.
What is Acoustic Insulation of Pipes?
To soundproof pipes, insulate them with materials like INS AC110. Enjoy peace and quiet with reduced noise from HVAC systems. Adhere to UK regulations, create serene environments, and enhance productivity. Take advantage of energy efficiency and legal compliance.
Conclusion
To summarise, the ins ac110 acoustic soil pipe insulation is a reliable and straightforward solution for soundproofing your plumbing system. With self-adhesive backing and robust construction, it provides efficient noise reduction in various situations.
Users have praised its quality and effectiveness, making it a popular choice for both homeowners and professionals. Improve your plumbing system with this insulation for a quieter and more peaceful environment.
