Water produces a lot of noise when flowing through pipes which can be quite irritating, especially in an industrial or commercial setup. Noisy pipes can decrease workplace efficiency and cause health hazards. Bostik W110 can help you tackle these noisy pipes and ducts.

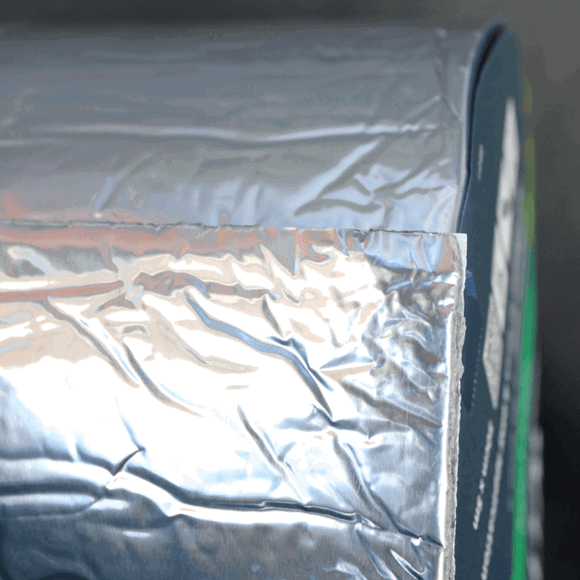

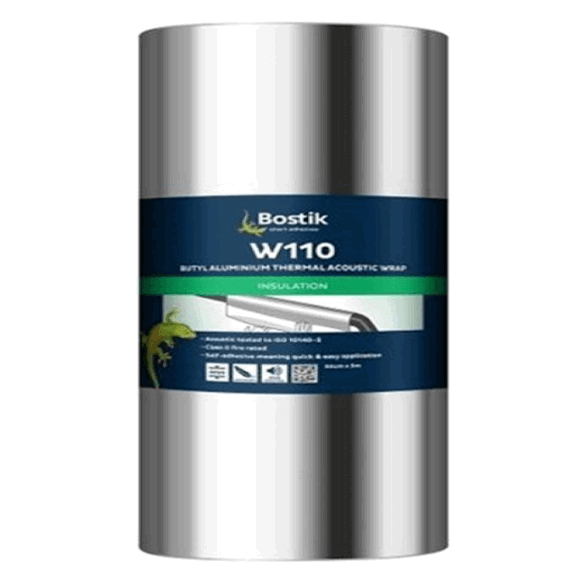

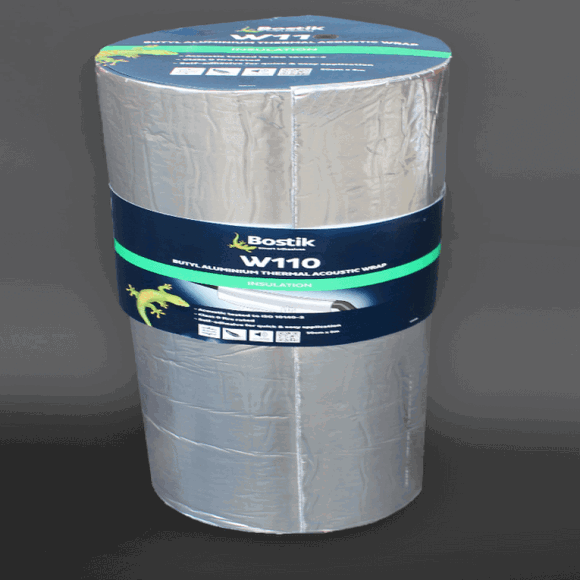

Bostik W110 is a self-adhesive, compact, lightweight, high-performing acoustic insulation roll made of a thermal acoustic layer laminated between two layers of pressure-sensitive butyl and finished with an aluminium face.
These foil insulation rolls have a high-tack butyl adhesive that can adhere easily to almost any surface, including steel, plastic and PVC. They are easy to install and do not need any special tools or devices. Acoustic pipe lagging significantly saves installation time.
Soundproofing insulation also gives superior thermal insulation. It is Class O rated, which means it complies with the building regulation and also gives exceptional fire insulation. It can be used to insulate and soundproof pipes working in temperatures as low as -30°C and as high as +90°C temperature range
Key Features:
- Gives superior sound insulation to all kinds of pipe and ductwork.
- Specially used to insulate and soundproof plastic rainwater s sewage pipes.
- Easy to apply due to the hi-tack butyl adhesive.
- Gives excellent fire Insulation. Class O rated.
- Lightweight insulation roll. Easy to work with and install.
- Thermal conductivity of 0,045 W/m.K. Ensures superior thermal insulation
- Acoustic pipe insulation can also be used on PVC and steel pipework
- No curing or waiting period, easy and quick installation
Applications:
- Bostik W110 Acoustic pipe insulation wrap is used to insulate and soundproof plastic rainwater pipes.
- They also give superior sound insulation to sewage pipes
- Soundproofing pipe insulation can also be used to insulate and soundproof pies and ductwork in the H&V system.
- It can also be used to soundproof steel and PVC pipe and ductwork.
Installation:
- The surface of the pipe or duct that you plan to use this soundproof insulation on needs to be dust-free, free of grease, loose debris and absolutely dry.
- Measure the diameter of the pipe and cut the insulation roll to size, making sure there is a minimum 25mm overlap.
- Take off the protective lining. Align the wrap over the surface and secure it. Progressively pull the wrap taut as you remove the protective lining, and then apply good pressure all over the surface to remove air gaps. Ensure that you do not touch the adhesive surface.
- Make sure the overlap is well attached. You can further secure the acoustic pipe lagging using foil tapes.
Please note that appropriate personal protection must be worn when installing Bostik W110 acoustic pipe insulation wrap. The installation must be carried out in a well-ventilated area and in accordance with manufacturer guidelines and Health and safety data sheet
| Insulation Type | Acoustic Pipe and Duct Insulation Wrap |
| Brand | Bostik |
| Material | PE foam, Aluminium Foil |
| Adhesive | Butyl Adhesive |
| Length | 4.5 Meters |
| Width | 500mm |
| Thickness | 4.5mm |
| Thermal Conductivity | 0.045 W/m.K |
| Fire Ratings | Class O |
| Application Temperature | +5°C to +40°C |
| Service Temperature | -30°C to +90°C |
| Application | Pipe and Duct Insulation |
| Free Collections Available |
|---|
| Save on delivery charges and collect the order for free from a warehouse near you. Just choose the In-Store Pickup option at the checkout or call: 03303130245 |
| Free pick-up locations include - Glasgow, Birmingham, Cardiff, Dagenham, Chorley Gosport, Oxfordshire, Fareham, Washington, Newmarket, Nottingham and Leeds |
| Delivery Terms | |
|---|---|
| Order Value (Excluding VAT) | Delivery Condition |
| No minimum order |
Free Delivery within 25 Miles of Erdington, Birmingham |
| Orders above £125 | Free Delivery within 25 miles of our warehouses in Glasgow, Birmingham, Cardiff, Dagenham, Chorley Gosport, Oxfordshire, Fareham, Washington, Newmarket, Nottingham and Leeds. |
| Orders above £370 | Free Delivery across mainland GB |
| Delivery Charges | Carriage costs start from £19.50, Ex.VAT for postcodes that do not fall under the free delivery criteria |
Returns/Refunds And Cancellations:
You can cancel your order and get a full refund anytime before we confirm your order via email.
Orders cancelled after the order confirmation is sent, may attract a restocking fee.
If you want to return insulation that was ordered in excess or not of use anymore, you can return them within 3 weeks from the date of receipt, provided they are unused and in a resalable condition. Please contact us via email and we will assist you accordingly.
If the product is damaged, then you are within your rights to claim an exchange or a refund. For more information, please refer to our delivery information page.
For more information on returns and deliveries, please refer to our delivery information page.
Product Features
- Bostik acoustic pipe and duct insulation roll is 4.5m in length and 500mm wide.
- Its thickness is 4.5mm. Roll coverage is 2.25sq.m
- These pipe insulation rolls give superior acoustic insulation.
- Ideal to insulate plastic rainwater, soil pipes and other HVAC applications.
- Self-adhesive soundproofing insulation. Easy to install.
- Pipe Insulation on a roll gives excellent thermal insulation
- Class O pipe insulation. Complies with Building regulations
You May Also Like
Shop now. Pay later.
We support Clearpay. With Clearpay you can Pay it in 4 interest-free instalments.
Subject to credit approval. T&C apply.
Shop now. Pay in 30 days.
We accept Klarna. Pay up to 30 days later. No interest. No fees, when you pay on time.
T&C apply. Credit subject to status.
Customer Reviews
“ Super product. its sad they took it off the market”Grace T.
Verified Buyer
Our Customers Include
Enhance your pipe soundproofing with Bostik W110. This self-adhesive wrap guarantees easy setup and strong moisture protection for long-lasting quality. For installation, clean the surface, peel, align, and press down firmly. Roll-press to avoid air bubbles and seal joints with Bostik T303 Bright Foil Tape for best performance. Versatile in various settings, this wrap reduces noise in industrial spots, dampens sound in homes, and creates a peaceful environment in commercial places. Explore further benefits of using Bostik W110 for your sound insulation needs.
-
Self-adhesive membrane for plastic rainwater and soil pipes.
-
Provides efficient soundproofing in various settings.
-
Ensures quick and easy installation process.
-
Offers strong moisture protection for long-lasting insulation.
-
Compatible with PVC and steelwork for versatile applications.
Understanding Bostik W110 Features
Bostik W110, a self-adhesive membrane for plastic rainwater and soil pipes, offers versatile application due to its ability to adhere to PVC and steelwork. This compatibility with PVC guarantees easy installation on various surfaces, making it a convenient choice for your soundproofing needs. The W110 wrap not only provides soundproofing benefits but also offers moisture resistance, ensuring a long-lasting solution for your pipe insulation requirements.
The easy application process of the W110 wrap eliminates the hassle of curing time, allowing you to enjoy quick and efficient installation. Its moisture-resistant properties guarantee that your pipes are well-protected against environmental factors, providing longevity assurance for your investment. With the W110 wrap, you can trust that your pipes will be effectively insulated while enjoying the peace of mind that comes with a high-quality, PVC-compatible product.
Installation Process of W110 Wrap
Before installing the W110 wrap, make sure the surface is clean, dry, and free from dust, grease, and loose materials. For proper application, unwind the roll, cut it to size, peel off the liner, align it over the surface, and press down well for an adhesive bond.
Remember to roll-press to prevent air bubbles and establish a strong connection with the surface. To enhance reinforcement and protection, seal joints using Bostik T303 Self-Adhesive Bright Foil Tape.
Following these steps diligently will help achieve the desired acoustic insulation performance of the W110 wrap. Ensuring a clean and dry surface, using the roll pressing technique, sealing joints effectively, and establishing a strong adhesive bond are essential for the successful installation of the W110 wrap.
Applications of Acoustic Pipe Insulation
To fully utilize the acoustic pipe insulation capabilities of the W110 wrap, consider its versatile applications in different settings and structures. The soundproofing benefits of the Bostik W110 Acoustic Pipe Insulation Wrap make it a valuable asset for noise reduction in various environments.
In industrial applications, this insulation solution can help minimize disruptive sounds from machinery or equipment, creating a more peaceful work environment. For residential soundproofing, the W110 wrap offers an effective way to reduce noise transmission between rooms or floors, enhancing overall comfort and privacy within homes.
Additionally, in commercial settings, this product provides insulation solutions that contribute to a quieter and more enjoyable atmosphere for employees and customers alike. Whether it's for industrial facilities, residential buildings, or commercial properties, the Bostik W110 wrap delivers high-performance acoustic insulation that meets the diverse needs of different spaces.
Enhance your piping system with Bostik W110 for excellent insulation that's easy to install and provides reliable protection against moisture buildup.
With its butyl aluminum thermal acoustic layer and instant bonding capabilities, this wrap guarantees high-quality performance for a variety of applications.
Say farewell to waiting for curing time and hello to efficient and effective insulation with Bostik W110.
Experience the benefits of superior pipe insulation firsthand and elevate your system with confidence.
