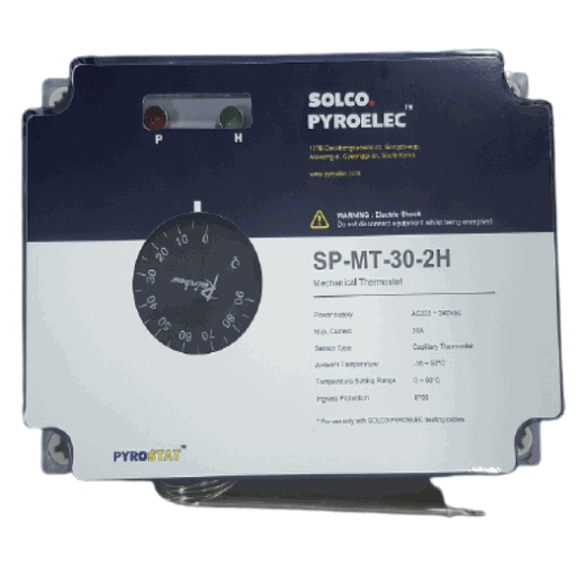

The Solco Pyroelec SP-MT-30 is an electro-mechanical temperature controller with a built-in mechanical dial to control and set the temperature. The device has signal lamps that indicate Power and Load On. The mechanical temperature controller has high accuracy, suitable for trace heating applications. The settings of the mechanical thermostat can be programmed easily.
The electro-mechanical temperature controller is designed to provide cost-effective and value for money On/Off control over trace heating circuits. It is predominantly suited for freeze protection trace heating applications. It is a sleek modern design and is easy to read and clean.
Product Specifications:
- Ambient Temperature: -10°C to +50°C
- Enclosure Dimensions: 125mm x 175mm x 100mm
Model
|
Rated Voltage
|
Temperature Setting Range
|
SP-MT-30-2L
|
220 Vac – 240Vac, 50/60 Hz
|
-30°C to +30°C
|
SP-MT-30-2H
|
220 Vac – 240Vac, 50/60 Hz
|
0°C to +90°C
|
SP-MT-30-1L
|
110Vac to 120 Vac, 50/60 Hz
|
-30°C to +30°C
|
SP-MT-30-1H
|
110Vac to 120 Vac, 50/60 Hz
|
0°C to +90°C
|
Key Features:
- The mechanical thermostat is a cost-effective product.
- Built-in mechanical dial to control and set the temperature.
- Predominantly suited for freeze protection applications.
- It is a sleek modern design and is easy to read and clean.
- The mechanical temperature controller has high accuracy.
- The mechanical thermostat is user-friendly.
Applications:
- Provides user-friendly measurement and control for Solco Pyrolec heating cables.
Product Details:
- Enclosure Material: Polycarbonate
- Temperature Setting Range: Models SP-MT-30-1L / 2L = -30°C to +30°C and models SP-MT-30-1H / 2H = 0°C to +90°C.
- No. of Terminals (Rated Cross Section): 6.0 mm²
- Control Method: On/Off
- Max. Load Current: 30A
- Temperature Sensor Type: 1m Capillary Oil Type, (stainless steel probe).
