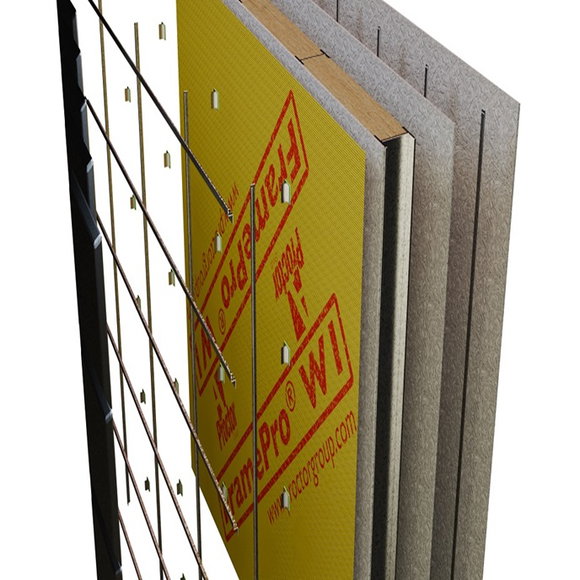

Proctor FramePro W1 is a high-performance vapour permeable air barrier and wall underlay designed to provide a simplified and robust method of achieving low air leakage rates in modern construction projects. Manufactured by Proctor Group, this breathable membrane combines excellent vapour permeability with airtightness, helping to improve energy efficiency and narrow the performance gap between as-designed and actual energy performance.
Supplied in a convenient 1.5m x 50m roll, Proctor FramePro W1 is flexible and lightweight, allowing for easy installation while maintaining outstanding durability on site. Its resilient composition resists punctures and tears, reducing the likelihood of failures to meet designed airtightness targets, particularly when installed alongside Wraptite tape and other compatible sealing products.
Key Features
- High-Performance Vapour Permeable Membrane: Combines excellent vapour permeability with airtightness to help maintain a healthy and energy-efficient building envelope.
- Simplified Air Barrier Solution: Provides a simplified and robust method of achieving low air leakage rates in residential and commercial construction.
- Improves Energy Efficiency: Helps narrow the performance gap between as-designed and actual energy performance by supporting consistent airtightness.
- Vapour Permeable Air Barrier: Allows water vapour to pass through the membrane while reducing unwanted air leakage.
- Water Resistant Protection: Protects wall structures from wind-driven rain and external moisture while maintaining breathability.
- Flexible and Lightweight: FramePro W1 is designed for easy installation and handling on site, reducing installation time and labour.
- Resists Punctures and Tears: Resilient composition resists punctures and tears during installation for improved durability and reliability.
- UV and Weather Resistant: Provides temporary but reliable performance during installation and exposure to external environmental conditions.
- FramePro W1 Vapour Permeable Membrane is 1.5m wide, 50m long, covers 75 sqm.
- It is vapour permeable, airtight wall underlay, which is flexible allowing for simple installation
- Water resistant to Class W1 for reliable weather protection.
- Supports moisture management by allowing water vapour to escape, and BBA Certified - 24/7182.
| Product Type | Vapour Permeable Membrane |
| Product Code | FramePro W1 |
| Brand | Proctor |
| Length | 50M |
| Width | 1.5M |
| Thickness | 0.4mm |
| Coverage | 75 sqm |
| Mass per unit area | 100 g/m2 |
| Reaction to fire | Class E |
| Water vapour resistance Sd | 0.02m |
| Material | Triple layer polypropylene micro-porous film laminate |
| Order Quantity | Delivery Charges |
|---|---|
| 1 - 3 Rolls | £36 +VAT |
| 4- 6 Rolls |
£65 +VAT |
| 7 - 35 Rolls | £100 +VAT |
