Product Details
| Board Thickness | Aerogel Thickness | MgO Board Thickness |
| 11mm | 5mm | 6mm |
| 16mm | 10mm | 6mm |
| 21mm | 15mm | 6mm |
| 26mm | 20mm | 6mm |
| 31mm | 25mm | 6mm |
| 36mm | 30mm | 6mm |
| 41mm | 35mm | 6mm |
| 46mm | 40mm | 6mm |

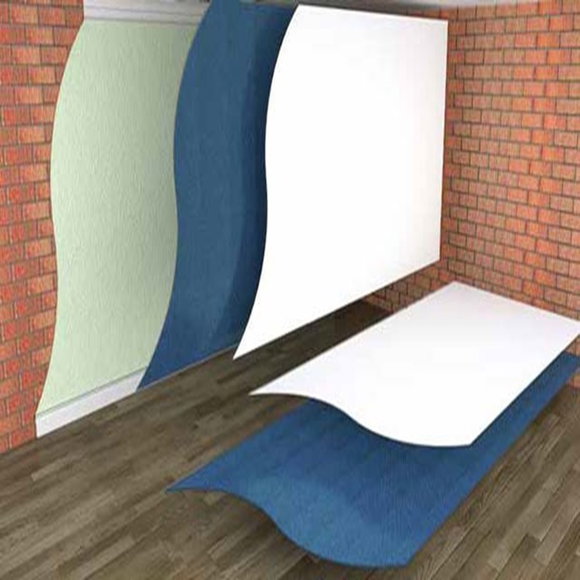

Spacetherm A-Rated Multi Thermal Laminate from the A Proctor Group is a high-performance thermal insulation solution designed to deliver exceptional thermal efficiency where space is limited. Combining advanced Spacetherm Aerogel Insulation technology with a durable 6mm magnesium oxide board, this innovative laminate offers outstanding thermal performance within a slim profile.
At the core of the system is the Spacetherm Aerogel Blanket, a highly efficient silica-based insulation blanket with extremely low thermal conductivity and class A fire ratings. This aerogel layer is bonded to a 6mm Magnesium Oxide Board and together they help achieve excellent U-values while minimising wall build-up thickness. This aerogel board makes the product ideal for refurbishment, retrofit, and new-build projects where maximising internal space is important. Spacetherm A1 blanket is available
in various thickness in multiples of 5.
Key Features
- Advanced Spacetherm Aerogel Insulation: Incorporates high-performance Spacetherm aerogel insulation technology for superior thermal efficiency.
- Excellent Thermal Performance: Provides outstanding thermal performance with minimal thickness requirements.
- Low Thermal Conductivity: The silica aerogel insulation blanket delivers exceptionally low thermal conductivity values.
- Helps Achieve Low U-Values: Designed to improve building fabric performance and achieve lower U-values.
- Space-Saving Insulation Solution: Ideal for projects where maintaining usable internal floor space is essential.
- High-Performance Thermal Laminate: Provides an effective insulation solution for challenging applications.
Applications
- Internal wall insulation
- Floor Applications
- Refurbishment projects
- Retrofit insulation upgrades
- Heritage building renovations
- Residential properties
- Commercial buildings
*Please note the Spacetherm A1 material is A1 Fire Rated, for any components laminated to this product it will no longer achieve this rating.
- Aerogel insulation and magnesium oxide board achieve Class A1 reaction to fire performance when tested to EN 13501*
- Excellent thermal performance with a thin profile.
- Helps achieve low U-values where space is limited.
- Spacetherm Multi offers constant long term thermal performance 50 years+.
- Board size: 2400mm x 1200mm
| Product Type | Thermal Laminate |
| Product Code | Spacetherm A-Rated Multi |
| Brand | Proctor |
| Length | 2.4M |
| Width | 1.2M |
| Thicknesses | 11mm, 16mm, 21mm, 26mm, 31mm, 36mm, 41mm, 46mm |
| Reaction to Fire | Class A1 |
| Material | Aerogel bonded to 6mm Magnesium Oxide (MgO) facing board |
| Order Quantity | Delivery Charges |
|---|---|
| 1 - 39 Sheets | £140 +VAT |
| Above 39 Sheets | Free Delivery |
