Discover the revolutionary Spacetherm Wall Liner, a high-performance aerogel insulation solution designed to significantly improve the thermal performance of your internal walls without the need for mechanical fixings. Developed by the Proctor Group, this advanced wall liner offers an unparalleled combination of efficiency and ease of application.

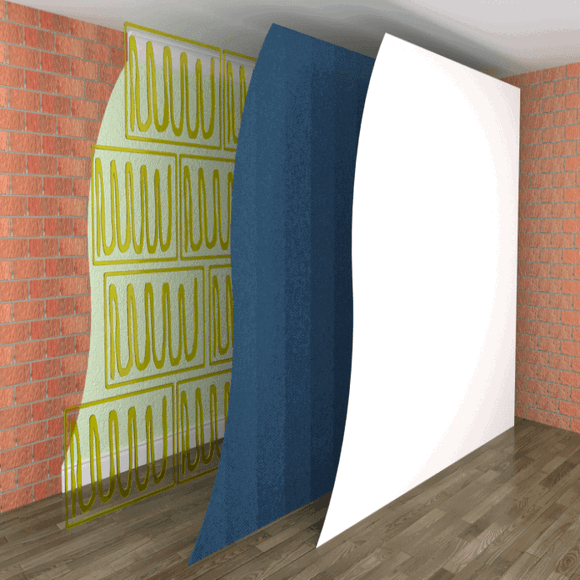

Spacetherm WL is a 13mm thick, high-performance laminate consisting of a 10mm aerogel insulation blanket bonded to a breathable, fire-resistant magnesium oxide (MgO) board. This innovative insulation system provides similar performance to traditional plasterboard laminates at a fraction of the thickness, preserving valuable room space.
Ideal for existing solid wall properties and refurbishment projects, Spacetherm Wall Liner helps achieve drastically improved U-values, enhancing comfort and reducing energy costs. Unlike other solutions, its unique design allows for bonding directly to the wall surface, eliminating the need for mechanical attachments.

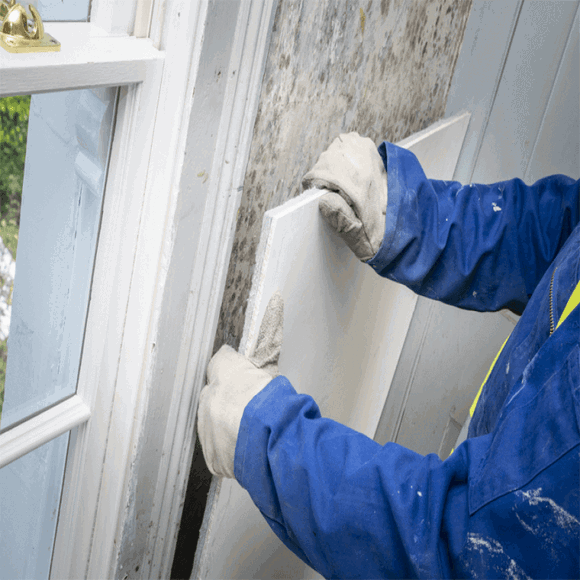

Spacetherm WL is adhesively bonded to the wall using Insta-Stik adhesive and can be finished to provide a key for further decoration. It can be painted or wallpapered over, seamlessly integrating into any interior design.
Key Features:
Ultra-Thin Aerogel Insulation (13mm Total Thickness): This is perhaps the most unique and impactful feature. Unlike traditional bulky insulation, Spacetherm WL achieves high thermal performance at an incredibly minimal thickness. This directly addresses the common issue of losing valuable room space during insulation upgrades.
Bonded Installation (No Mechanical Fixings Required): The ability to simply bond the liner directly to existing walls simplifies installation, reduces labour and avoids the need for intrusive mechanical fasteners that can be challenging, especially in older solid wall constructions.
Magnesium Oxide (MgO) Facing: The incorporation of an MgO board is unique. This provides a breathable, non-combustible (Spacetherm A1 rating), and stable surface that can be directly decorated (painted or wallpapered), eliminating the need for additional plasterboard layers in many cases.
Superior Thermal Performance at Minimal Thickness: Spacetherm WL offers a U-value improvement comparable to much thicker materials. Spactherm 1 wall liner has a very low thermal conductivity of just 0.0195W/mK, that contributes to its high performance
Ideal for Solid Wall Refurbishment: This product specifically targets a challenging area of insulation. Its thin profile and bondable nature make it uniquely suited for upgrading the thermal efficiency of existing solid walls without extensive structural changes or significant loss of interior space, a common limitation with other solutions.
Developed by Proctor Group: Leveraging the reputation and expertise of the Proctor Group adds credibility and assurance of quality for a specialized product.
- Spacetherm wall liner is 13mm thick, 1.2M long and 595mm wide, covers 0.71 Sqm.
- Spacetherm WL incudes 10mm Spacetherm A1 aerogel insulation blanket bonded to 3mm Magnesium Oxide Board (MgO)
- It is intended to be fixed to internal surfaces of existing solid walls without using mechanical fixings.
- Spacetherm WL gives superior and leading thermal performance, in limited space.
- Constant long term thermal performance 50 years+
| Product Type | Wall Liner |
| Brand | Proctor Group |
| Product Code | Spacetherm WL |
| Length | 1200 mm |
| Width | 595 mm |
| Thickness | 13mm |
| Coverage | 0.71 Sqm |
| Thermal Conductivity @ 23°C | 0.0195 W/mK |
| Maximim Operating Temperature | +650°C |
| Density | 184 kg/m3 |
| Applications | Solid Internal wall insulation |
| Order Quantity | Delivery Charges |
|---|---|
| 1 - 10 Sheets | £85 +VAT |
| Above 10 Sheets | Free Delivery |
Receiving Delivery:
This will be a signed delivery. Customers are requested to check the order on receiving them for any damages. All damages must be reported on the delivery note before the driver leaves. Damages not reported on the delivery note will not be entertained
Returns, Cancellations and refunds:
You are free to cancel your order before we send you an order confirmation email and get a full refund
Once the order is confirmed and shipped cannot be cancelled.
Incorrectly ordered Goods can be returned within 14 days of delivery at our discretion. Customer returns the goods to a forwarding address that will be provided via email.
Once returned, the items will be inspected and provided they are in a re-saleable condition, refund will be processed. A 25% restocking fee may be applicable.
