Product Details
| Board Thickness | Aerogel Thickness | Plasterboard Thickness | Plywood Thickness |
| 23.5mm | 5mm | 12.5mm | 6mm |
| 28.5mm | 10mm | 12.5mm | 6mm |
| 33.5mm | 15mm | 12.5mm | 6mm |
| 38.5mm | 20mm | 12.5mm | 6mm |
| 43.5mm | 25mm | 12.5mm | 6mm |
| 48.5mm | 30mm | 12.5mm | 6mm |
| 53.5mm | 35mm | 12.5mm | 6mm |
| 58.5mm | 40mm | 12.5mm | 6mm |
Proctor Spacetherm A-Rated Direct Fix is a high-performance aerogel insulation board developed by the Proctor Group to provide exceptional thermal efficiency with minimal wall build-up. Utilising advanced Spacetherm aerogel technology, this innovative board delivers outstanding thermal performance while maintaining a slim thickness, making it ideal for projects where space is limited.

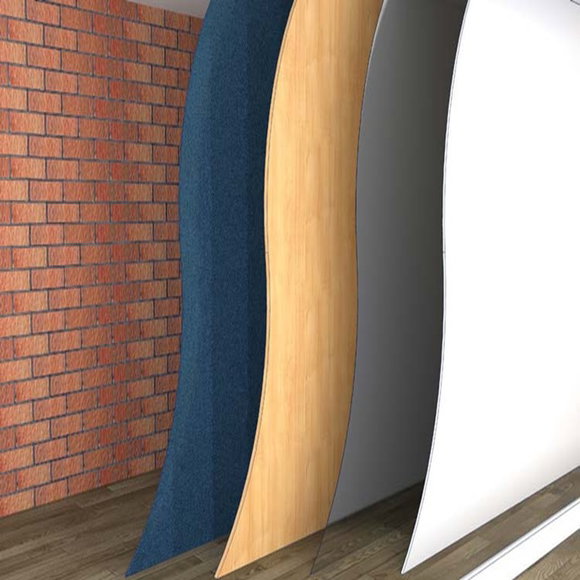

At the core of the system is a high-performance silica aerogel insulation layer, renowned for its low thermal conductivity and excellent insulation properties. This enables the laminate to achieve superior thermal results compared to traditional insulation materials of a similar thickness. Spactherm aerogel is attahed to a reinforced plasterboard with pre-bonded plywood, this board simplifies installation and maximises space.
Proctor Spacetherm Direct Fix system is designed for direct installation onto suitable internal wall surfaces, helping to reduce heat loss, improve building performance, and minimise the risk of condensation. Its practical 2400mm x 1200mm board size allows for efficient coverage and straightforward installation across a wide range of applications.
Key Features
- Advanced Spacetherm Aerogel Technology: Incorporates high-performance silica aerogel insulation for exceptional thermal efficiency.
- Excellent Thermal Performance: Delivers outstanding insulation performance with minimal wall thickness.
- Thin Insulation Solution: Provides effective thermal insulation while maximising usable internal space. Ideal for refurbishment and retrofit projects where space is limited.
- Direct Fix Installation: Designed for easy installation directly onto suitable wall substrates.
- Helps Reduce Heat Loss: Improves the thermal efficiency of buildings and reduces energy consumption.
- Manufactured by the Proctor Group: Part of the trusted Proctor Spacetherm range of insulation products.
- Spacetherm A-Rated Directfix is 2.4mm long and 1.2mm wide. It is available in various thicknesses.
- This aerogel plasterboard consists of Spacetherm A1 insulation blanket with an additonal pre-bonded plywood reinforcement to the plasterboard
- Exceptional thermal performance in a slim profile
- Helps achieve low U-values where space is limited
- Free delivery on full pallet order!
| Product Code | Aerogel Plasterboard |
| Brand | Proctor |
| Length | 2.4M |
| Width | 1.2M |
| Plasterboard Thickness | 12.5mm |
| Plywood Thicknesss | 6mm |
| Reaction to Fire | Class A1 |
| Material | 12.5mm foil backed plasterboard and 6mm plywood reinforcement bonded to required thickness of fibre reinforced silica Aerogel blanket. |
| Order Quantity | Delivery Charges |
|---|---|
| 1 - 39 Sheets | £140 +VAT |
| Above 39 Sheets | Free Delivery |
