Product Details
| Thickness | Length | Width | Coverage per board | Specifications | Suitable for Pipework |
| 15mm | 1200mm | 600mm | 0.72 Sqm |
‘Universal’ design – radius returns and 3x cross runs at one end of boards. 150mm c/c |
10mm OD pipe |
| 18mm | 1200mm | 600mm | 0.72 Sqm | ‘Universal’ design – radius returns and 3x cross runs at one end of boards 150mm c/c | 12mm OD pipe |

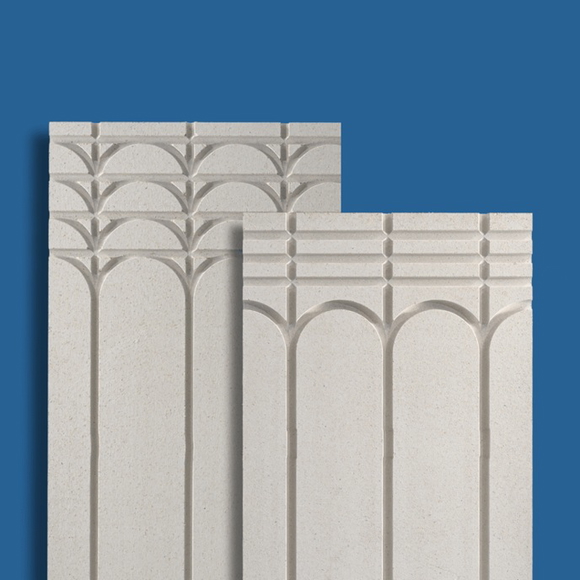

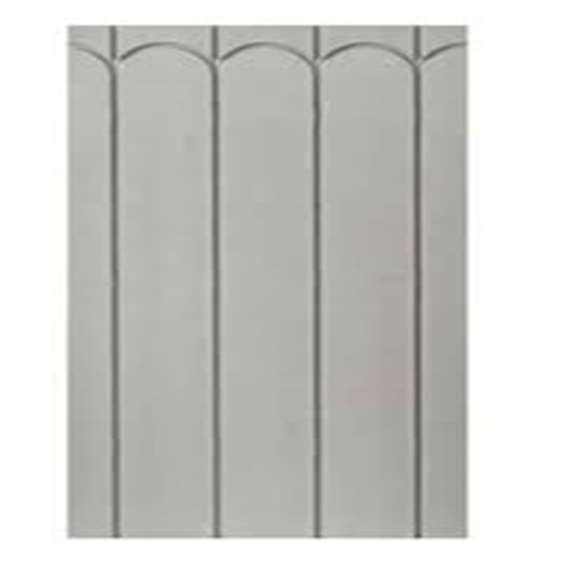

Resonate Heatdeck system is a high-performance underfloor heating board, crafted from reinforced gypsum. Its CNC-routed panels are precisely engineered to create optimal heating conditions for both new construction and renovation projects. This innovative dry system eliminates the long drying times associated with wet screed, offering a superior insulation and heat distribution method for modern construction. It's the ultimate heating board for achieving optimum underfloor heating performance with minimal floor height build-up.
Key Features
- Low Profile: Minimises impact on floor height.
- High Performance: Provides fast and efficient heat transfer.
- Dry System: A 100% dry system, allowing floor finishes to be installed quickly.

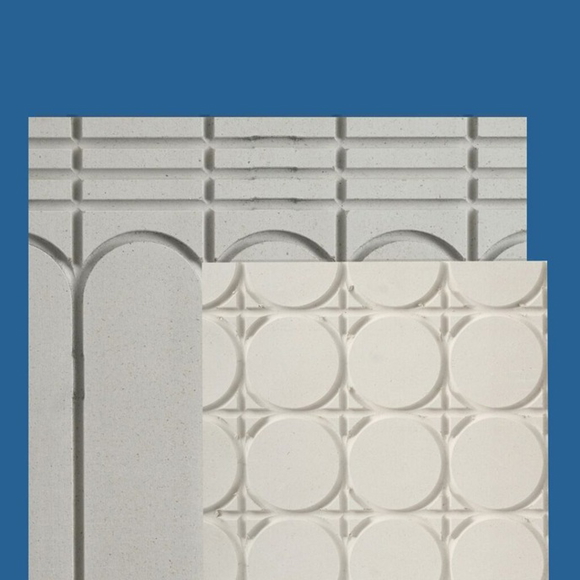

- Durable Material: Manufactured from reinforced gypsum with CNC routed panels (Straights, circles, radius returns and universal)
- Versatile: Suitable for both new builds and refurbishment projects.
Applications
Resonate Heatdeck is used:
- Concrete in-situ floor.
- Solid timber joisted floor.
- Resonate heatdeck underfloor heating baord is 1.2M long and 600mm wide. Available in 2 thicknesses -
- These are High heat retention underfloor heating boards for energy savingsm enables efficient and fast transfer of heat
- Suitable for all types of 10, 12mm pipework.
- It is a 100% dry system that is able to accept floor finishes (carpets, wood floors, ceramic tiles etc)
| Product Type | Underfloor Heating Board |
| Product Code | Heat Deck |
| Brand | Resonate |
| Thickness (Height) | 15mm, 18mm |
| Length | 1200 mm |
| Width | 600 mm |
| Spacing | 150mm c/c |
| Material | Gypsum |
| Colour | Grey |
| Thermal Conductivity | 0.32 W/mk |
| Delivery Terms | |
|---|---|
| Pallet Charges apply to deliveries. £65 +VAT per pallet |
