Product Details
| Thickness | Length | Width | Coverage per board | Specifications | Suitable for Pipework |
| 18mm | 1200mm | 600mm | 0.72 Sqm |

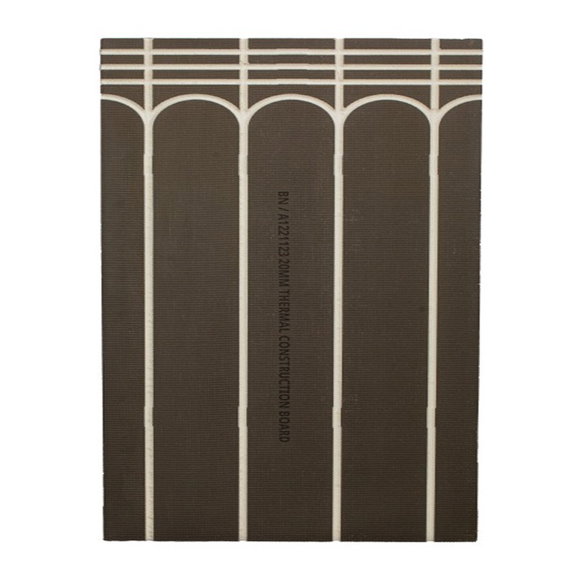

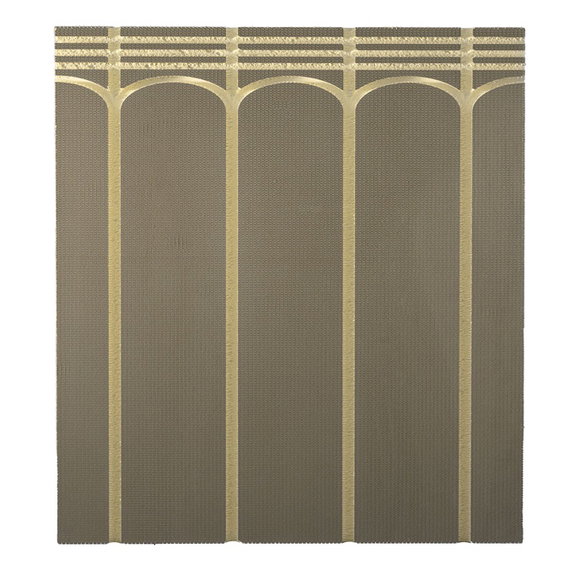

‘Universal’ design – Radius returns and 3x cross runs machined into a ‘straights’ panel. 150mm c/c |
12mm OD pipe |
| 20mm | 1200mm | 600mm | 0.72 Sqm | ‘Universal’ design – Radius returns and 3x cross runs machined into a ‘straights’ panel 150mm c/c | 16mm OD pipe |
Resonate Heatbacker board from Resonate Systems Ltd is a high-performance, overlay board specifically engineered for wet underfloor heating systems beneath tiled floors. Heat backer overlay boards are designed to enable fast and efficient transfer of heat.
Constructed from a 300kPa XPS (extruded polystyrene) core with glass fibre reinforced cement facing on both sides, this overlay board provides a robust, stable and energy-efficient foundation. It is precision-manufactured with CNC routed grooves to ensure the secure and straightforward placement of UFH pipes, significantly reducing heat loss downwards and directing warmth upwards into the room for optimal energy efficiency. Its low profile design makes it an ideal solution for both new build and refurbishment projects where floor height is a critical consideration.
Applications
Resonate Heatbacker board is a versatile solution designed for a wide range of uses in both residential and commercial settings. It is designed for tiled flooring to be laid directly over.
- Heat backer is a low profile overlay tile backer board designed for tiled floor applications.
- It has a lightweight, 300kPa, XPS core panels with glass fibre reinforced cement facing on both sides
- 18mm and 20mm thick pipes suitable for 12mm and 16mm OD underfloor heating pipes respectively
- CNC routing options: Straight, radius returns and universal.
| Product Type | Underfloor Heating Overlay Boards |
| Product Code | HeatBacker |
| Brand | Resonate |
| Compressive Strength (kPa) | 300 kPa |
| Length | 1200mm |
| Width | 600mm |
| Thickness | 18mm / 20mm |
| Delivery Terms | |
|---|---|
| Pallet Charges apply to deliveries. £65 +VAT per pallet |
