Product Details
| Thickness | Length | Width | Coverage per board | Specifications | Suitable for Pipework |
| 15mm | 1200mm | 600mm | 0.72 Sqm |
‘Universal’ design – radius returns and 3x cross runs at one end of boards. 150mm c/c |
10mm OD pipe |
| 18mm | 1200mm | 600mm | 0.72 Sqm | ‘Universal’ design – radius returns and 3x cross runs at one end of boards 150mm c/c | 12mm OD pipe |

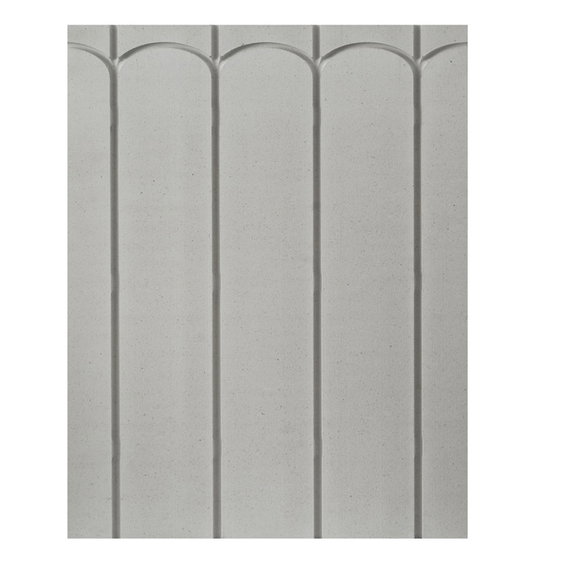

Resonate Heatdeck system is a high-performance underfloor heating board, crafted from reinforced gypsum. Its CNC-routed panels are precisely engineered to create optimal heating conditions for both new construction and renovation projects. This innovative dry system eliminates the long drying times associated with wet screed, offering a superior insulation and heat distribution method for modern construction. It's the ultimate heating board for achieving optimum underfloor heating performance with minimal floor height build-up.
Key Features
- Low Profile: Minimises impact on floor height.
- High Performance: Provides fast and efficient heat transfer.
- Dry System: A 100% dry system, allowing floor finishes to be installed quickly.
- Durable Material: Manufactured from reinforced gypsum with CNC routed panels (Straights, circles, radius returns and universal)
- Versatile: Suitable for both new builds and refurbishment projects.
Applications
Resonate Heatdeck is used:
- Concrete in-situ floor.
- Solid timber joisted floor.
| Delivery Terms | |
|---|---|
| Pallet Charges apply to deliveries. £65 +VAT per pallet |
