Upgrade your living space with the power combination of natural wood fibre insulation and lime. Designed specifically for insulating cold masonry solid walls on the inside, Warmshell Internal Wall Insulation Kit offers unparalleled thermal performance while maintaining the breathability and health of your interior home environment.
Key Features:
-
Advanced Wood Fibre Insulation: Crafted from premium wood fibre, Warmshell woodfibre insulation boards provide exceptional thermal efficiency, effectively reducing heat loss and minimising energy consumption. With a low thermal conductivity of 0.044 W/mK, these 40mm wood fibre boards help insulate a 10SQM area easily, thanks to its Tongue-and-groove edge profiling.
Furthermore, the wood fibre insulation has a density of 195 kg/m3, which helps with sound insulation.
-
Condensation Control: Say goodbye to dampness and condensation issues. This internal wall insulation system includes a combination of breathable nature wood fibre insulation and lime.
Wood fibre boards are naturally breathable, vapour open, capillary active and hygroscopic in nature, while the breathable lime is anti-septic and helps wick moisture away, keeping your walls draft-free. The internal wall insulation unit prevents moisture buildup, maintaining a comfortable and healthy indoor climate.
- Sustainable Choice: By choosing our Warmshell Internal Wall Insulation Kit, you're opting for an environmentally friendly solution. Wood fibre is a renewable resource, and our commitment to sustainability extends throughout the manufacturing process.
What does the Warmshell Internal Wall Insulation Kit Include:
The internal wall insulation system is designed to insulate a 10SQM of the solid masonry wall. The kit includes:

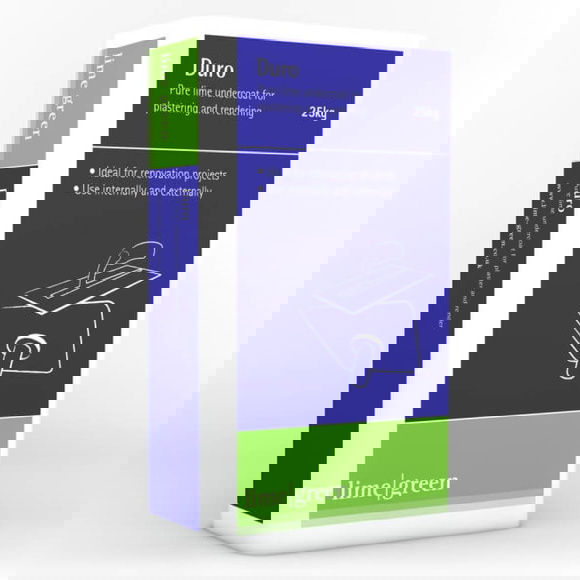

Lime Green Duro: A breathable, moisture-wicking, draft-proofing and levelling layer. The kit includes 7 Bags - 25Kg(per bag)
Warmshell Baord Adhesive: The board adhesive helps to fully bond the wood fibre insulation to the Duro. The system includes 4 bags of 20Kg each of the board adhesives

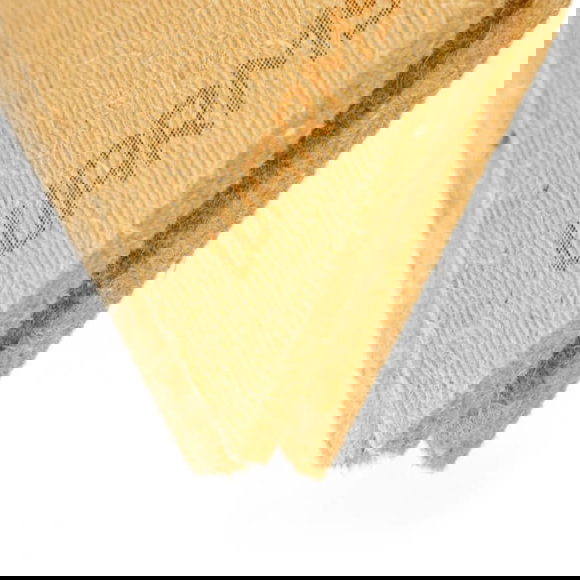

Warmshell Wood Fibre Boards: A 40mm high-performing, highly insulating and moisture buffering insulation board with T&G profiling. To insulate a 10 SQM area, the kit includes 10 boards of Warmshell Woodfibre XL T&G 40 mm. One board size is 1860 x 590mm (1.097m2) at 40mm thickness.

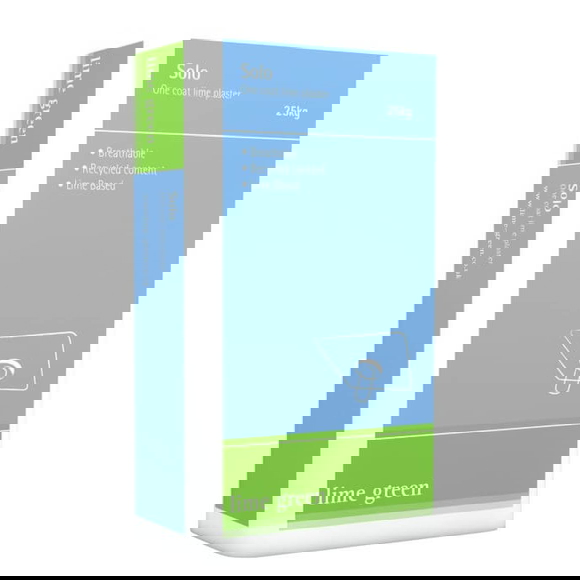

Solo Onecoat Lime Plaster: For a final decorative finish. The internal wall insulation system includes 7 bags of 25Kg each of the Lime plaster

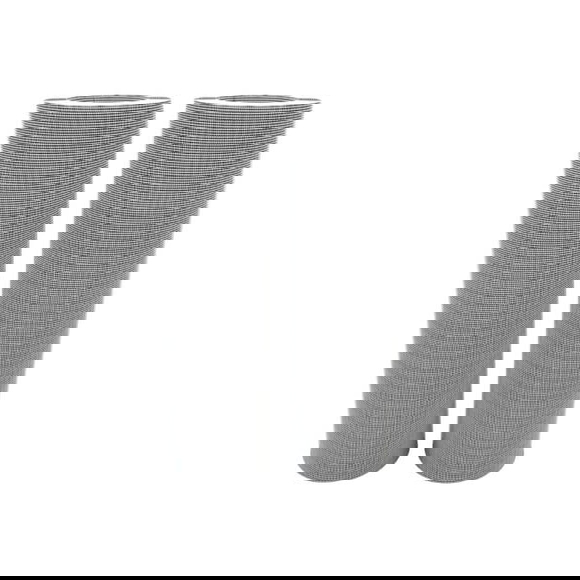

Lime Green Solo Mesh: One roll of 1m x 50m mesh to help install the lime plaster.
How to go about insulating Warmshell Internal Wall Insulation:
Access: The first step is to carefully access the building, its location and the technical requirements before you start insulating. You need a sound understanding of how much energy you lose through your walls and how much you can realistically save. A U-value analysis can of course help in this direction.
Design: Once you've assessed the building and have a better understanding, of the best way to insulate it internally, you can use the Warmshell Internal's comprehensive information to design and specify the work in detail. Warmshell Internal wall insulation system is independently assessed, verified and audited by KIWA and is fire tested, achieving a classification of Class B, s1, d0.
You will find the list of the system specification in the NBS Source
Installation: For a complete set of instructions refer to the installation guide or the installation video
| Product Type | Internal Wall Insulation |
| Material | Lime And Wood Fibre |
| Brand | Lime Green |
| Kit Includes |
7 x 25Kg Lime Green Duro 4 x 25Kg Warmshell Board Adhesive 10 x 1860 x 590 x 40mm Warmshell Wood fibre Boards (1.097m2/Board) 7 x Lime Green Solo One Coat Lime Plaster 25 kg 1 x Lime Green Solo Mesh 1m x 50m |
| Thermal Conductivity (Woodfibre Board) | 0.044 W/mK. |
| Density (Woodfibre Board) | 195 kg/m3. |
| Compressive Strength (Woodfibre Board) | 200 kPa at 10% deformation according to EN 826. |
| Fire Performance (System) | Reaction to fire to EN 13501-1, Class B-s1, d0. |
Receiving Delivery: We urge you to check the delivery properly for any damages as soon as you receive the order. Any damages must be mentioned in the delivery note before the driver leaves otherwise we will be unable to replace damaged goods.
If you are unsure, please call us.
Returns, Cancellations and refunds:
You are free to cancel your order before we send you an order confirmation email and get a full refund
Once the order is confirmed and an estimated delivery date is issued via email, Orders cannot be cancelled.
Damaged goods
Customers are requested to inform via email or phone of damaged items within 48 hours from the time of delivery with photographic evidence. We will advice accordingly on email.
Product Features
- The IWI kit is a complete, healthy and safe method for insulating cold masonry walls from the inside.
- The internal wall insulation system includes 40mm Warmshell wood fibre boards and everything you need to safely insulate a 10m2 internal wall area
- The system includes breathable plasters and eco friendly wood fibre insulation for a healthier home
- Independently fire tested in the UK, Achieves a classification of Class B, s1, d0
- Complies with building regulations and KIWA BDA Agrement
- Also available in 80mm, 100mm or 120mm by full pallet for 20 – 30m2 areas. Price on application.
