Passivhaus Insulation and Airtightness: A Guide for UK Readers

The Passivhaus standard represents a globally recognised benchmark for energy efficiency in buildings, originating in Germany during the 1990s. This rigorous standard prioritises a "fabric first" approach, emphasising the optimisation of the building envelope to achieve exceptional thermal comfort and minimal energy consumption.

Its increasing adoption in the UK reflects a growing awareness of its potential to deliver significant energy savings, enhanced occupant comfort, and a substantial reduction in carbon footprint. As the UK strives to meet its commitment to net-zero emissions by 2050, the principles of Passivhaus design offer a crucial pathway towards a more sustainable built environment.

While initial perceptions might suggest higher upfront costs, the long-term financial and environmental benefits, coupled with the increasing availability of materials and expertise, are making Passivhaus an increasingly attractive option for UK construction projects.

At the heart of the Passivhaus philosophy lie five key principles, with insulation and airtightness playing a pivotal and interconnected role. These principles work in concert to dramatically reduce the energy required for heating and cooling buildings, ensuring a comfortable indoor environment throughout the year.

Achieving the stringent Passivhaus standards necessitates a holistic design approach where insulation and airtightness are not merely add-ons but are integral to the overall performance of the building. Notably, the Passivhaus standard is performance-based, setting clear energy consumption and comfort targets without prescribing specific materials, thereby allowing for innovation and adaptation to the UK market's unique context.

How Insulation and Airtightness Drive Passive House Efficiency

Superinsulation forms a cornerstone of Passivhaus design, involving the use of exceptionally high levels of insulation in all elements of the building envelope, including walls, roofs, and floors. The target U-values for opaque elements in UK Passivhaus buildings typically range between 0.10textand0.15textW/m2textK. This represents a significant improvement compared to the thermal performance requirements of typical UK building regulations.

For instance, current UK regulations generally permit much higher U-values for walls, roofs, and floors, resulting in greater heat loss. The benefits of such high levels of insulation are manifold, including a substantial reduction in the need for both heating and cooling, leading to significant energy savings.

Furthermore, superinsulation enhances the overall thermal performance of the building, provides superior soundproofing, can increase its durability, and improves its resilience to temperature fluctuations and even power outages. The considerable difference in U-values between Passivhaus and standard UK construction underscores the radical enhancement in thermal efficiency that Passivhaus aims to achieve.

While implementing thicker insulation layers might entail a slightly higher initial investment, the long-term energy cost savings and the marked improvement in indoor comfort within Passivhaus buildings often more than compensate for this initial outlay.

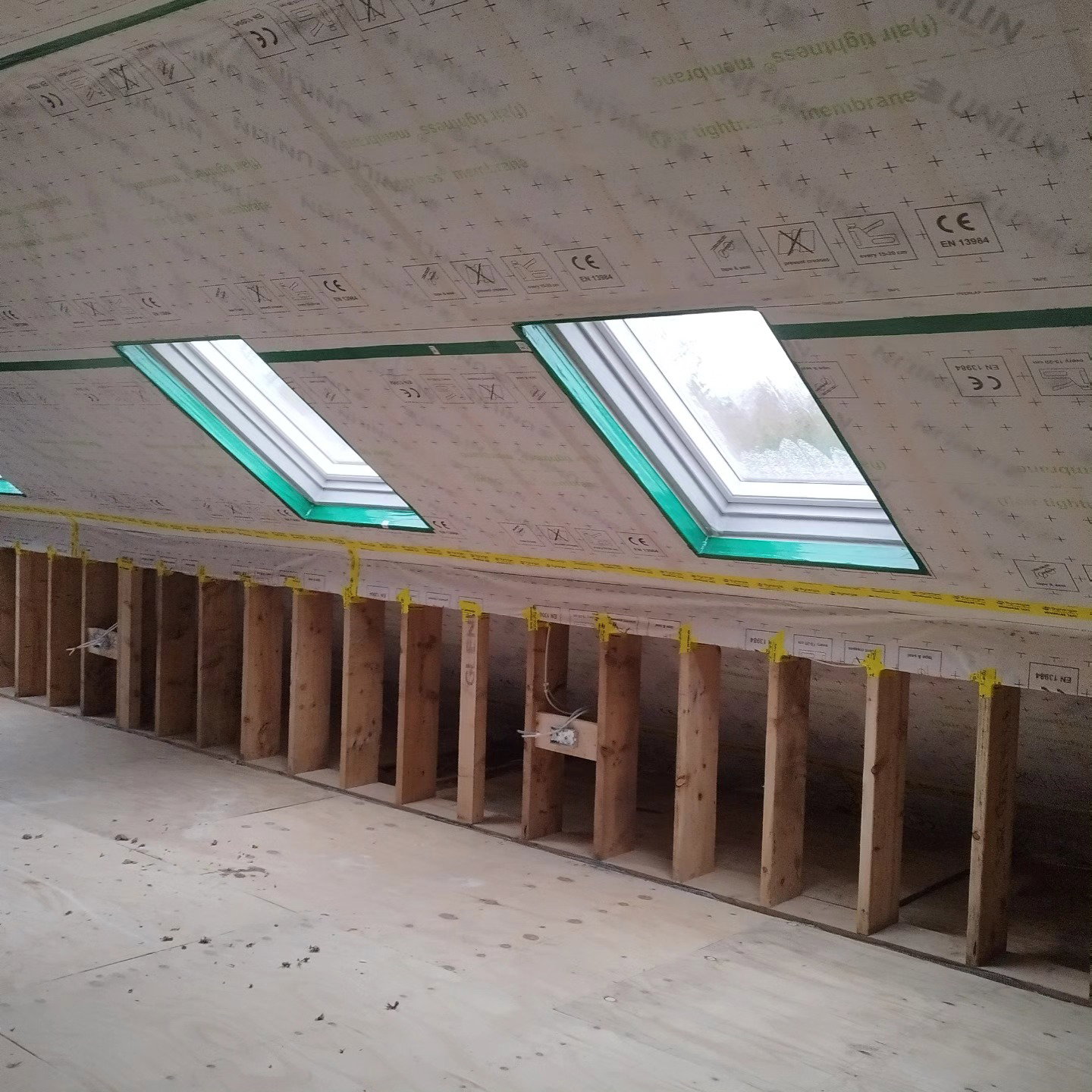

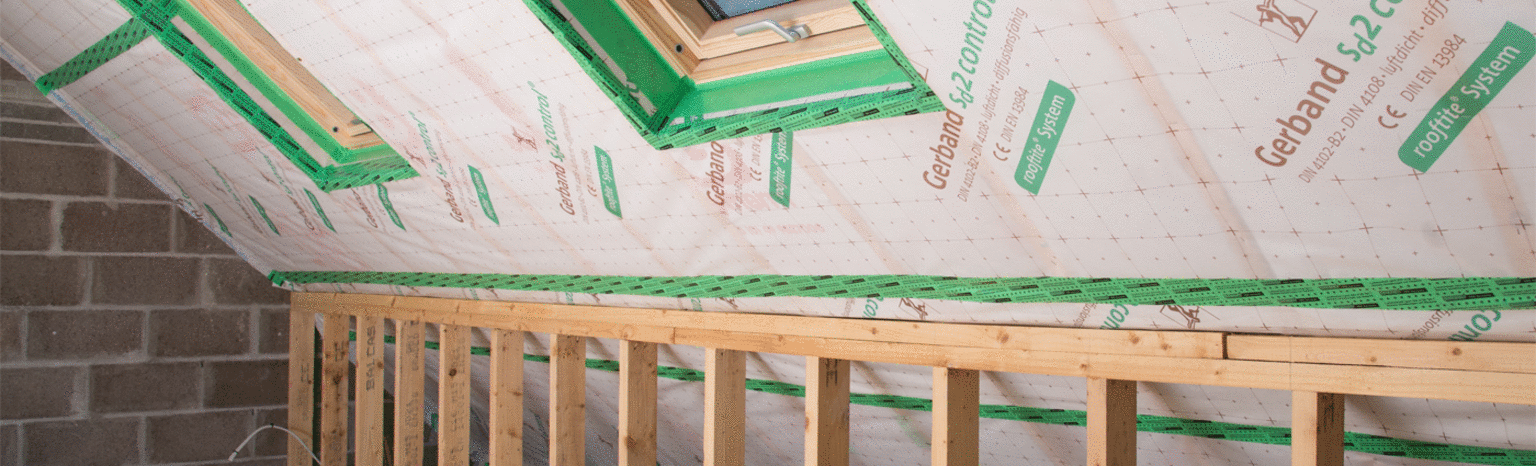

Airtightness is equally critical in achieving Passivhaus efficiency, playing a vital role in preventing uncontrolled air leakage. Such leakage can lead to substantial heat loss in winter and heat gain in summer, as well as causing uncomfortable draughts and potentially contributing to moisture problems within the building fabric.

The Passivhaus standard sets a very stringent airtightness target: a maximum of 0.6 air changes per hour at a pressure of 50textPascals(ACH_50text). This is considerably more demanding than the airtightness requirements stipulated by current UK building regulations, which permit significantly higher levels of air permeability.

The benefits of achieving such a high level of airtightness include a marked reduction in energy consumption for heating and cooling, a significant improvement in indoor comfort by eliminating draughts and maintaining consistent temperatures, enhanced indoor air quality when coupled with a Mechanical Ventilation with Heat Recovery (MVHR) system, and the prevention of moisture damage and the growth of mould within the building structure.

The Passivhaus airtightness standard is notably more rigorous than UK building regulations, demanding meticulous attention to detail in both the design and construction phases. Achieving these levels of airtightness often requires the use of specialised materials and construction techniques, along with thorough testing, such as the blower door test, to verify that the stringent performance targets are met.

Navigating the UK Regulatory Landscape for Passive House Construction

The primary regulations governing energy performance in buildings across the United Kingdom are Part L of the Building Regulations (Conservation of Fuel and Power) in England and Wales, Part F (Conservation of fuel and power) in Northern Ireland, and Section 6 (Energy) in Scotland. These regulations establish minimum standards for air permeability and thermal efficiency in new and existing buildings.

However, these minimum standards are generally less stringent than the performance targets set by the Passivhaus standard. For example, the maximum allowable air permeability under current UK building regulations is significantly higher than the airtightness target for a Passivhaus.

While the Future Homes Standard in England aims to raise energy efficiency in new dwellings, its proposed targets still fall short of the comprehensive requirements of the Passivhaus standard in several key areas. In contrast, the Scottish Government has previously announced intentions to introduce new minimum environmental design standards for all new build housing that would be largely equivalent to the Passivhaus standard, indicating a growing recognition within parts of the UK of the need for more ambitious energy efficiency targets.

Despite ongoing advancements in UK building regulations, the Passivhaus standard currently stands as a leading international standard that significantly surpasses these minimum requirements, offering a pathway to truly low-energy buildings. The potential for a wider integration of Passivhaus equivalent performance requirements within the UK Building Regulations framework holds the promise of a transformative shift towards more sustainable and energy-efficient construction practices across the nation.

Passivhaus certification in the UK is administered by several organisations accredited by the Passive House Institute, with the Passivhaus Trust acting as a key UK affiliate promoting the standard. Achieving this certification involves a rigorous process that ensures the building meets all the demanding criteria of the Passivhaus standard.

Notably, obtaining Passivhaus certification can be considered as exceeding and fully satisfying all relevant UK Building Regulations pertaining to energy performance. The Passivhaus Planning Package (PHPP) serves as the preferred energy modelling methodology for Passivhaus certification, allowing designers to accurately predict the building's energy performance and optimise the design accordingly.

A crucial aspect of Passivhaus certification is the requirement for independent verification by accredited certifiers. This ensures quality assurance and confirms that the design targets are not only met on paper but are also achieved in the constructed building.

While Passivhaus certification remains voluntary in most of the UK (though Scotland is moving towards incorporating similar standards), pursuing it provides a robust and internationally recognised framework for achieving exceptional levels of energy efficiency and overall building performance that go far beyond the basic compliance requirements of standard building regulations.

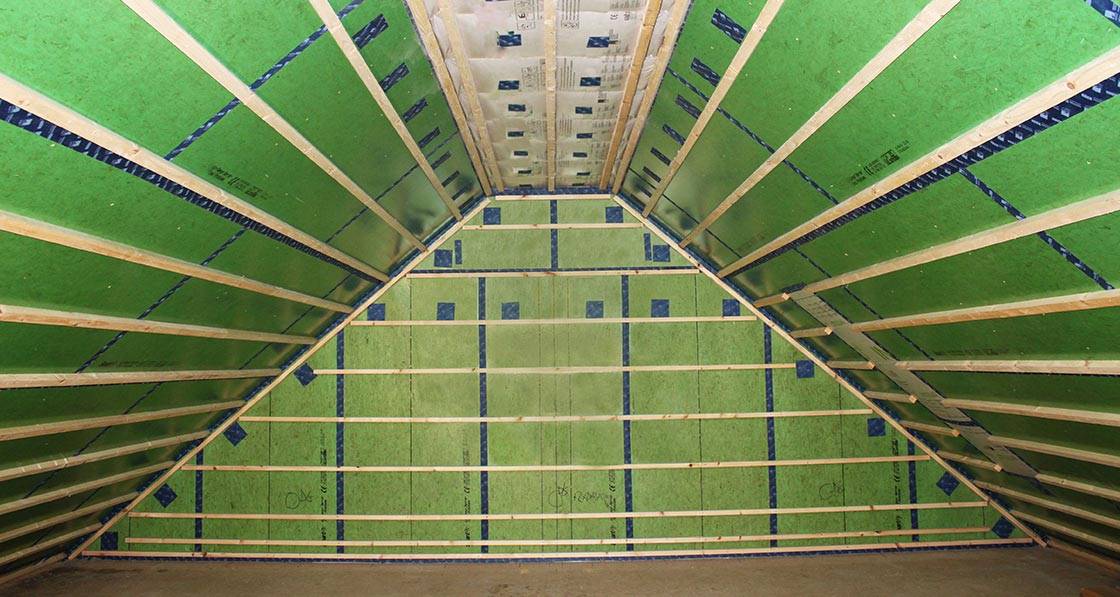

Internal Insulation Materials: Key Choices for UK Passivhaus Buildings

Internal insulation plays a crucial role in achieving the high thermal performance standards required for Passivhaus buildings in the UK. It contributes to the overall thermal resistance of the building envelope, helping to maintain a comfortable indoor climate with minimal energy input.

Key properties to consider when selecting internal insulation include its thermal conductivity (which determines its U-value), thermal mass (the ability to store heat), breathability (allowing moisture vapour to pass through), and embodied energy (the energy consumed in its production and transportation). The benefits of effective internal insulation include improved thermal comfort, significant reductions in energy bills, and the potential for enhanced indoor air quality, particularly when using natural and breathable materials.

Several insulation materials are commonly used for internal applications in UK Passivhaus buildings:

• Mineral Wool: This category includes both glass wool and rock wool, which are widely used due to their good thermal and acoustic insulation properties and their non-combustible nature. Mineral wool is readily available and relatively cost-effective, making it a popular choice for filling cavities between wall studs or within service voids.

• Rigid Foam Insulation: Materials like Expanded Polystyrene (EPS), Extruded Polystyrene (XPS), Polyisocyanurate (PIR), and Polyurethane (PUR) offer high levels of thermal resistance. PIR and PUR, in particular, have very low thermal conductivity, allowing for high performance with relatively thin profiles, which can be beneficial in space-constrained areas. These rigid foam boards can be used to create continuous layers of insulation or incorporated into insulated plasterboards for internal walls and ceilings. Fire safety regulations may influence the use of certain rigid foam insulations.

• Natural Fibre Insulation: Sustainable and environmentally friendly options such as wood fibre, sheep's wool, hemp, and cellulose offer good thermal performance along with breathability and the ability to regulate moisture. Some of these materials, like wood fibre, can also contribute to thermal mass. Natural fibre insulations are available in rolls or batts for installation between studs or as rigid boards for direct application. They can also improve indoor air quality.

• Spray Foam Insulation: Both open-cell and closed-cell spray foam can provide excellent airtightness and good R-values by filling cavity voids. This makes them potentially effective in achieving both insulation and airtightness in a single application, particularly in complex areas or for sealing around penetrations.

• Vacuum Insulation Panels (VIPs): These panels offer exceptionally low thermal conductivity, allowing for very high levels of insulation with minimal thickness. While often more expensive, VIPs are ideal for retrofit projects or situations where space is limited.

• Insulated Plasterboards: These composite boards combine a layer of insulation with a plasterboard facing, simplifying the internal wall and ceiling construction process by providing both insulation and a finished surface.

The selection of the most suitable internal insulation material for a UK Passivhaus building often involves a careful consideration of various factors. These include the desired level of thermal performance, the project budget, sustainability goals, the need for breathability to manage moisture within the UK's climate, and the ease of installation.

Given the UK's temperate climate, which can often be humid, materials with good moisture management properties might be preferred in certain applications to mitigate the risk of condensation within the building fabric. Furthermore, achieving the demanding U-value targets of the Passivhaus standard frequently requires the use of significantly thicker layers of conventional insulation compared to standard UK construction practices. This necessitates careful planning during the design phase to accommodate these increased insulation thicknesses.

External Insulation Materials: Options and Considerations for UK Climates

External Wall Insulation (EWI) is a highly effective method for enhancing the thermal performance of buildings, and it plays a crucial role in Passivhaus construction in the UK. Applying insulation to the exterior of the building has several advantages, including the minimisation of thermal bridging, the protection of the underlying building structure from the elements, and the potential for improving the building's aesthetic appearance.

When selecting external insulation materials for a UK Passivhaus project, key properties to consider include their thermal conductivity, fire performance in compliance with UK regulations, resistance to the UK's often challenging weather conditions, and their compatibility with various render and cladding finishes.

Several types of external insulation materials are commonly used in the UK:

• Expanded Polystyrene (EPS): This is one of the most popular and generally cost-effective insulation materials used in EWI systems. EPS is lightweight and easy to work with, offering good thermal performance. Graphite-enhanced (grey) EPS provides even better thermal conductivity compared to standard white EPS, allowing for thinner insulation profiles to achieve the same level of performance.

• Mineral Wool: Known for its good thermal performance and non-combustible properties, mineral wool is a popular choice for EWI systems, particularly where fire safety is a paramount concern. While it can be slightly more challenging to work with than EPS and needs to be kept dry during installation, its excellent fire resistance makes it a preferred option in many situations.

• Phenolic Insulation: This type of insulation offers some of the highest thermal performance among commonly available materials, allowing for very thin insulation layers to achieve demanding U-values. Phenolic insulation has good fire performance characteristics. However, it tends to be more expensive than some other options and requires careful handling to keep it dry during installation.

• Extruded Polystyrene (XPS): With its rigid structure and inherent resistance to water, XPS is often used in applications where the insulation might be exposed to moisture, such as around foundations and in some EWI systems. It also offers good compressive strength.

• Wood Fibre Insulation: This is a highly sustainable option with excellent green credentials. Wood fibre insulation is breathable and can also contribute to the thermal mass of the building, helping to regulate internal temperatures. It is particularly well-suited for use in conjunction with timber frame construction.

• Polyisocyanurate (PIR) and Polyurethane (PUR): These rigid foam insulations offer high levels of thermal performance with relatively thin panels. They are used in EWI systems. However, it is important to be aware of UK building regulations regarding the use of combustible insulation materials in external walls, particularly for buildings exceeding certain heights.

Given the UK's frequently wet and variable weather conditions, the durability and weather resistance of external insulation materials are critical factors in their selection. The chosen material must be able to withstand prolonged exposure to rain, wind, and temperature fluctuations without degrading or losing its insulating properties.

Combining external insulation with a breathable construction approach, especially when utilising natural materials like wood fibre, can be particularly beneficial in creating a healthy and comfortable indoor environment in UK Passivhaus buildings by allowing moisture vapour to escape and preventing the build-up of condensation.
