Product Details:
| Thickness (mm) | Length(mm) | Width (mm) | Boards/Pack | Pack Coverage (sqm) |
| 4 | 1250 | 600 | 10 | 7.5 |
| 6 | 1250 | 600 | 8 | 6 |
| 10 | 1250 | 600 | 6 | 4.5 |
| 12.5 | 1250 | 600 | 6 | 4.5 |
| 20 | 1250 | 600 | 5 | 3.75 |
| 30 | 1250 | 600 | 4 | 3 |
| 40 | 1250 | 600 | 3 | 2.25 |
| 50 | 1250 | 600 | 2 | 1.5 |
| 60 | 1250 | 600 | 2 | 1.5 |

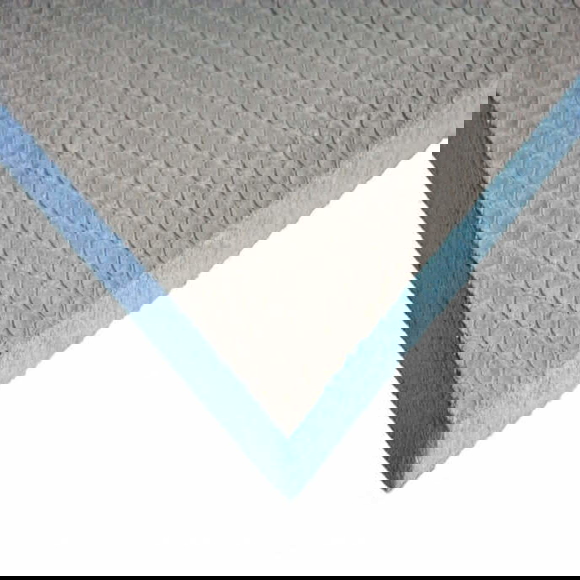

Marmox Multiboard is a versatile and high-performance insulation board that is perfect for a wide range of applications. It is made from a high-density extruded polystyrene core. Each face of the Multiboard is covered with a close woven fibreglass mesh embedded into a cement polymer mortar.
Marmox Multiboard has a thermal conductivity (boards above 10mm thickness) between 0.033 to 0.036W/mK, which helps save energy. Using these boards as internal wall insulation
panels will significantly improve the wall’s U value whilst also reducing the risks of surface condensation and mould growth.
Top-grade thermal laminates/thermal plasterboards comprise either PIR or phenolic foam which offers better insulation than XPS. But the fact to note here is that types of boards consist of a sheet of ~ 10mm thick plasterboard which is non-insulating material. But, Marmox multiboard is all insulation.
The cementitious skin of the Marmox Multiboards is moisture absorbent and thier core is completely impermeable to water which is why Marmox Multiboard can be used as a moisture barrier. With Marmox Multiboard you can be sure that its insulating properties will not deteriorate if the wall or floor becomes damp, which is not something you can say regarding PIR or phenolic insualtion.
Thanks to its core of extruded polystyrene, these waterproof boards can be used as tile backer boards as the core provides the perfect level of porosity to bond with tile adhesive
or plaster. It is this unique combination of the rigid outer shell and the XPS core that makes Marmox multiboards an effective decoupling layer.
Marmox Multiboard is also ideal for use on internal walls, floors, and ceilings as well as in wet environments such as bathrooms, showers, and swimming pools. These Marmox boards are lightweight and easy to handle, making them simple to work with during installation. In fact, it is much lighter compared to other insulation boards.
Key Features:
- Made from high-density extruded polystyrene
- Waterproof insulation boards.
- Lightweight and easy to handle
- Can be easily cut to size
- Provides thermal insulation and improves energy efficiency
- Suitable for a wide range of applications, including underfloor heating systems and tiling substrates
- Available in a range of thicknesses
- Smooth surface for even tiling finishes
Applications:
Marmox Multiboard can be used as:
- Waterproof Tile Backer Board
- Internal/External Wall Insulation Board
- Insulation board along with Electric U.F.H.
- Wetroom construction
- Internal/External Plaster/Render board
| Insulation Type | Waterproof Insulation Board |
| Brand | Marmox |
| Product Code | Marmox Multiboard |

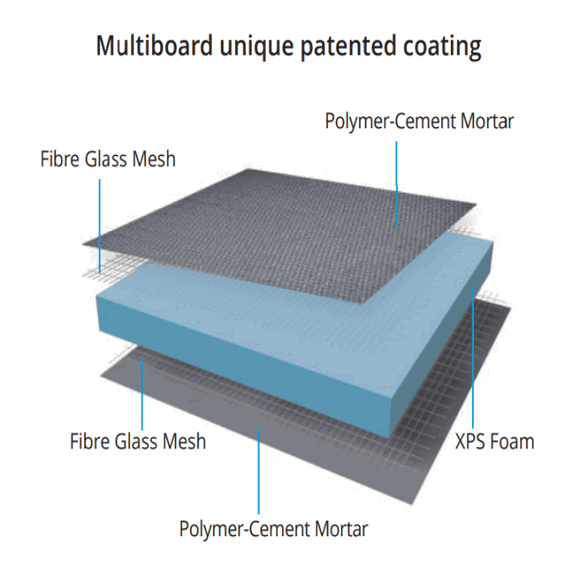

| Material | Extruded Polystyrene with a close woven fibreglass mesh embedded into a cement polymer mortar. |
| Length | 1250mm |
| Width | 600mm |
| Thickness | 4-60mm |
| Thermal Conductivity | 0.034W/mK |
| Compressive Strength | 400kPa |
| Application | External/Internal wall insulation, tile backer, Wetroom construction |
| Free Delivery Terms | |
|---|---|
| Order Value | Delivery Charge |
| Upto £130 | £18 |
| Above £130 | Free Delivery |
Returns, Cancellations and refunds:
You are free to cancel your order before we send you an order confirmation email and get a full refund
Items ordered in excess: If you wish to return the items ordered in excess and claim a refund, please note that a restocking fee may be applicable. Please let us know if you wish to do so within 14 days from the date of delivery via email. You have to return the goods to us at the address that we will share in the email.
Damaged goods: Please make sure you check the delivery, and if any part of it is damaged then you must mark this on the delivery note before the driver leaves otherwise we are unable to replace any damaged goods, if you are unsure then please call us before the driver leaves.
If the items are signed for without checking, we cannot replace/refund the insulation.
Product Features
- Standard Board Dimensions: 1250 x 600mm
- Strong, waterproof and lightweight insulation board
- One board for waterproofing, drylining and insulation
- Ideal for insulating walls, floors and ceilings
- Effective decoupling layer
- Thier XPS core and fibreglass-reinforced polymer concrete make them waterproof
- Marmox multiboard is BBA Certified and CE marked
- Comes with a lifetime guarantee
You May Also Like
Shop now. Pay later.
We support Clearpay. With Clearpay you can Pay it in 4 interest-free instalments.
Subject to credit approval. T&C apply.
Shop now. Pay in 30 days.
We accept Klarna. Pay up to 30 days later. No interest. No fees, when you pay on time.
T&C apply. Credit subject to status.
Customer Reviews
“ Truly waterproof! I was not sure about using this product though I am glad that I tried this. awesom...”David G.
Verified Buyer
Our Customers Include
Installation Guide
| Insulation Type | Waterproof Insulation Board |
| Brand | Marmox |
| Product Code | Marmox Multiboard |
| Material | Extruded Polystyrene with a close woven fibreglass mesh embedded into a cement polymer mortar. |
| Length | 1250mm |
| Width | 600mm |
| Thickness | 4-60mm |
| Thermal Conductivity | 0.034W/mK |
| Compressive Strength | 400kPa |
| Application | External/Internal wall insulation, tile backer, Wetroom construction |
Frequently Asked Questions
FAQs for Marmox Multiboard - Waterproof Insulation
Upgrade your waterproofing and tiling with Marmox MultiBoard. It's perfect for wetroom projects, with a special XPS foam core for insulation. Use plastic or galvanized fixes on timber frames for a secure fit. Solid walls? Screw them in securely or opt for adhesive. The dot & dab method provides waterproofing and soundproofing advantages. For floors, guarantee a stable base for underfloor heating. Benefit from great thermal insulation and prevent tile cracks. More info ahead if you're curious.
Key Takeaways
- Provides waterproofing and tiling solutions, certified for wetroom use.
- Features XPS foam core for insulation and decoupling membrane properties.
- Compatible with underfloor heating systems for added comfort.
- Suitable for various installations including timber frames and solid walls.
- Offers efficient and durable solutions for flooring applications.
Benefits of Marmox MultiBoard
Marmox MultiBoard consistently delivers a range of practical benefits that make it a superior choice for various construction and waterproofing projects. When it comes to waterproofing benefits, this versatile board not only provides effective waterproofing and tiling solutions, preventing tile and grout cracking, but it's also certified for wetroom applications. Its strong adhesion and decoupling membrane properties offer a full tanking solution, ensuring a reliable barrier against water damage.
Moreover, Marmox MultiBoard goes beyond just improving waterproofing. With its XPS foam core, it offers excellent insulation. By reducing heat transfer, it boosts energy efficiency, making your space more eco-friendly and cost-effective. This feature is particularly useful when used with underfloor heating systems, as it helps distribute heat evenly, maximizing heating efficiency throughout your home. So, whether you're looking to keep water out or save on energy bills, Marmox MultiBoard has got you covered.
Installation on Timber Frame
When installing Marmox MultiBoard on timber frames, make sure to use either Marmox Plastic Fixing Washers or Galvanised Fixing Washers for secure attachment. Timber frames offer advantages such as being lightweight, environmentally friendly, and allowing for easier modifications. To maintain timber frames, regular inspections for moisture damage and pest infestations are essential. Here is a comparison of the alternative fixing methods:
|
Fixing Method |
Marmox Plastic Fixing Washers |
Galvanised Fixing Washers |
|
Material |
Plastic |
Galvanized Steel |
|
Strength |
Suitable for light to medium loads |
Ideal for heavy-duty applications |
|
Corrosion Resistance |
Less susceptible |
Highly resistant |
Installation on Solid Wall (Screw Fixed)
When installing Marmox Multiboards on solid walls using screw fixings, you'll need to follow specific steps for wall preparation. This includes ensuring a clean and level surface.
The screw installation procedure involves securely fixing the Multiboards to the wall for stability and durability.
To complete the installation, the finishing touches guide will assist you in achieving a professional and polished look for your project.
Wall Preparation Steps
To achieve best results when preparing a solid wall for installation, consider incorporating the suggested wall preparation steps.
- Surface Preparation: Clean the wall thoroughly, removing any dust, dirt, or debris to guarantee a smooth application surface.
- Finishing Techniques: Use appropriate tools to level the wall surface and address any imperfections for a professional finish.
- Waterproofing Solutions and Soundproofing Benefits: Apply a waterproofing membrane to improve moisture resistance and contemplate soundproofing materials for enhanced acoustics in the room.
Screw Installation Procedure
For a secure and durable attachment on solid walls, employing the screw installation procedure is essential when fixing the Marmox Multiboard. To guarantee a reliable installation, follow these screw fixing tips for a secure attachment.
Begin by selecting the recommended screws for the Multiboard, as they play a vital role in the stability and support of the application. When screw fixing the Multiboard on solid walls, make sure to use secure attachment techniques to boost its performance.
Properly following the screw installation procedure is key to achieving a strong fixing method for the Multiboard on solid surfaces. By adhering to these steps, you can guarantee a stable and long-lasting installation that meets your needs effectively.
Finishing Touches Guide
Consider utilizing an additional layer of protection for improved durability and a polished appearance when completing the installation of Marmox Multiboard on solid walls using the screw fixing method. Here are some tips to help you achieve a professional finish:
- Sealing Techniques: Seal all gaps and joints with a waterproof sealant to optimize water resistance and prolong the board's lifespan.
- Maintenance Tips: Regularly inspect the Multiboard for any signs of damage or wear, and address them promptly to preserve its effectiveness.
- Finishing Touches: Apply a suitable finishing material, such as tile adhesive or plaster, over the Multiboard to create a smooth and seamless surface for tiling or painting.
Installation on Solid Wall (Adhesive Fixed)
For solid wall installations using the adhesive fixed method, establish a secure bond between the Marmox Multiboard and the wall surface. The adhesive strength is vital for guaranteeing the Multiboard stays securely in place over time. It's essential to choose an adhesive that's compatible with both the Multiboard and the wall material for best results. This method provides long-term durability, giving you peace of mind that your installation will withstand the test of time.
To maintain the integrity of your adhesive fixed installation, consider some maintenance tips. Regularly inspect the Multiboard to ensure it remains firmly attached to the wall. Keep an eye out for any signs of loosening or damage and address them promptly. Avoid applying excessive force or weight on the Multiboard to prevent strain on the adhesive bond. By following these simple maintenance practices, you can prolong the life of your adhesive fixed installation and enjoy the benefits of a secure and stable Multiboard on your solid walls.
Installation on Solid Wall (Dot & Dab Fixed)
To securely install Marmox Multiboard on solid walls using the dot and dab fixing method, apply adhesive dots to the wall and press the board onto them. This process guarantees a stable and reliable attachment for your Multiboard, giving you peace of mind knowing it's firmly in place.
Here are three reasons why this method is a great choice:
- Waterproofing Features: The dot and dab fixing method helps maintain the waterproofing characteristics of the Multiboard, keeping your walls protected from moisture and water damage.
- Soundproofing Benefits: By securely affixing the Multiboard using this technique, you can also enjoy the soundproofing advantages it offers. Say goodbye to unwanted noise disruptions and create a more peaceful environment in your space.
- Efficient Installation: This approach isn't only effective but also quick and efficient, making the installation process smooth and hassle-free. You'll have your Multiboard up and ready to use in no time.
Installation on Floors
When installing Marmox Multiboard on floors, guarantee a stable surface for tiling and underfloor heating systems while benefiting from its effective thermal insulation and waterproofing properties.
The Multiboard is ideal for various flooring applications, providing improved insulation benefits that boost energy efficiency in spaces like basements and cold storage rooms. The XPS foam core within the Multiboard reduces heat transfer, contributing to its exceptional insulation properties.
Additionally, the Multiboard offers a decoupling membrane feature that helps prevent tile and grout cracking, ensuring durability in high-moisture environments.
Conclusion
To sum up, Marmox MultiBoard offers numerous benefits for various installation scenarios, whether on timber frames, solid walls, or floors. Its versatility and ease of installation make it a practical choice for a wide range of projects.
Whether screw fixed, adhesive fixed, or dot & dab fixed, this product provides a reliable solution for your construction needs. Consider Marmox MultiBoard for your next project to experience its durability and efficiency firsthand.
