Radon gas is a naturally occurring radioactive gas that can seep into buildings from the ground and pose a health risk to the occupants. According to the World Health Organization, radon is the second leading cause of lung cancer after smoking. Therefore, it is important to prevent radon from entering buildings and to reduce its concentration to safe levels.
One of the ways to achieve this is to use a radon barrier, which is a type of membrane that blocks the passage of radon gas and water vapour. A radon barrier also serves as a damp proof membrane, which prevents moisture from damaging the structure and the interior of the building.

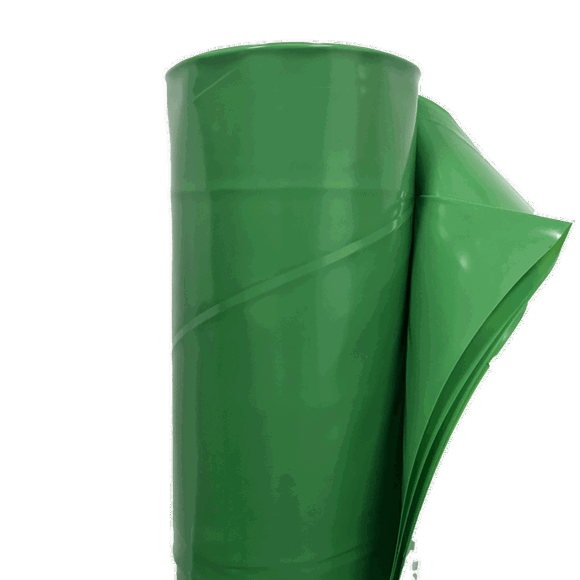

Novia 1600G Radon Barrier is an approved blown polythene material that is suitable for use as a radon barrier and a damp proof membrane in solid concrete ground floors that are not subject to hydrostatic pressure. It is a high-quality product that meets the requirements of the Building Research Establishment (BRE) and the national building regulations for radon protection. It is also UKCA approved to EN 13967 as a damp proof membrane.
Key Features
- High resistance to radon permeability and transmittance
- Gas barrier also functions as an effective damp proof membrane and shows low water vapour transmittance
- DPM with high tear strength and puncture resistance
- Opaque green colour for easy identification
- Compatible with Novia double tape system for a complete gas seal
- Easily installed with double sided butyl and aluminium or metallised BOPP tape
Application
- Suitable for use in solid concrete ground floors that are not subject to hydrostatic pressure
- Can be used in conjunction with Novia gas resistant DPCs and top hats for a comprehensive radon protection system
- Radon gas barrier is used in areas with high or medium radon potential as defined by the BRE
- DPM can be used in new build or retrofit projects
Handling and Storage
- Storage : Store in a dry and clean place away from direct sunlight and heat sources. Do not fold or crease the gas membrane
- Install Care: Cover the membrane as soon as possible after installation with a minimum of 50mm screed
- Dry and Dust-Free Surface: Ensure the surface is clean and dry before installation to maintain effectiveness.
- Tape Application: Use Novia double-sided butyl tape for joints and edges, and aluminum foil tapes or metallized BOPP tape for a complete gas seal.
- Overlap Method: When joining membranes, create a 150mm overlap and use single-sided lap tape for a secure seal.
- Protective Measures: After installation, safeguard the radon barrier with a minimum 50mm screed for long-term protection.
Certifications
- UKCA approved to EN 13967:2012 as a damp proof membrane
- Complies with BRE 211 and current UK Building Regulations for radon protection
- Tested and certified by BBA and BSI
- CE marked and CPR compliant
- EN 13967:2012 Approval: Complies with European standards for damp proof membranes.
- CE Approved: Meets the quality and safety requirements outlined in the CE certification.
- CPR Compliant: Adheres to the Construction Products Regulation, ensuring high-quality standards.
- Declaration of Performace
Product Type | Gas Barrier Membrane |
Brand | Novia |
Product Code | Novia 1600G Radon Barrier |
Length | 20m |
Width | 4m |
Roll Size | 4m x 20m |
Roll Coverage | 80 sqm |
Material | Virgin grade polythene |
Thickness |
1600 gauge/400 micron |
Roll weight | 29kg |
Compliance | Meets EN 13967 for use as a DPM, UKCA approved and BR 211 compliant |
Applications | Functions as an effective gas barrier and DPM |
Order Value (Ex. VAT) | Delivery Charges (Ex. VAT) | ||
---|---|---|---|
Up to £125 |
£20 |
||
£1250 - £303 | £30 | ||
£303 - £616 | £40 | ||
£616 - £961 | £50 | ||
Above £961 | Free |
Returns And Refunds
- You are free to cancel the order anytime before we send you an order confirmation email with the estimated delivery date.
- Once confirmed and delivered, The product is NON-RETURNABLE. The product comes to you straight from the manufacturer. NO Returns accepted
- We urge you to check the insulation for any damage before the driver returns. If the product you received is damaged, please contact us immediately.
- For more information, please refer to our Return Policy
