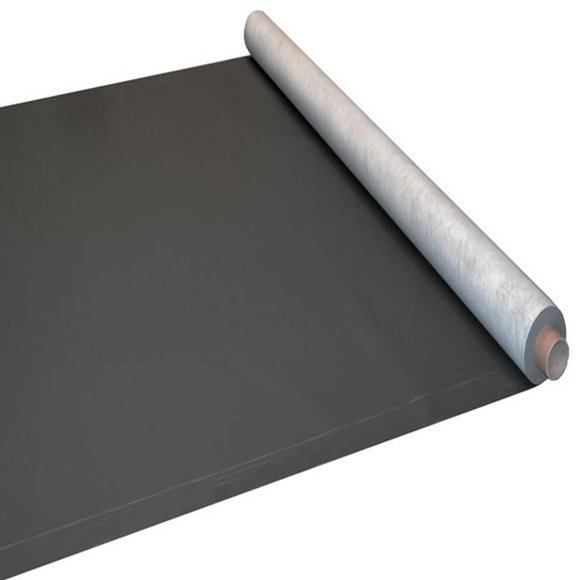

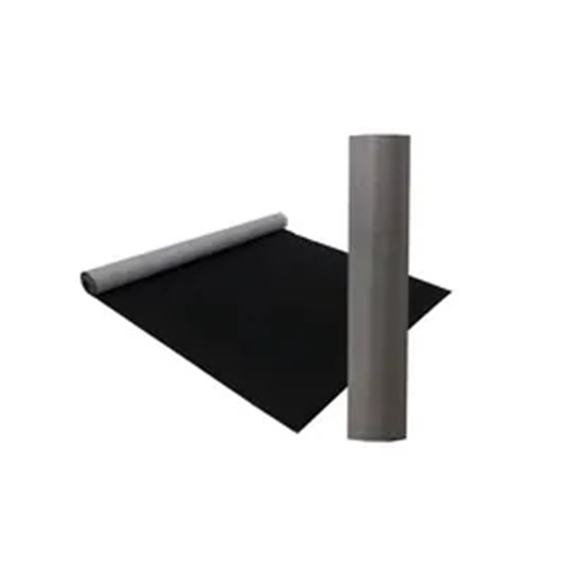

FacadeShield UV is a high-performance, non-woven breathable membrane from Proctor Group designed specifically for the protection of the building fabric behind open jointed cladding and rainscreen systems. This advanced breather membrane combines exceptional water resistance and UV resistance with high vapour permeability. FacadeShield UV enhances air tightness of the building whilst reducing the risk of condensation, making it the obvious choice to ensure the building fabric maintains its integrity and thermal performance.
Key Features
- This breather membrane is extremely resistant to ageing and prolonged UV exposure, offering superior water and UV resistance for long-term performance in open-jointed façades.
- Its high vapour permeability allows moisture vapour to escape from the wall structure, reducing the risk of condensation due to trapped moisture and protecting the building's insulation and structural components.
Applications
- FacadeShield UV is designed specifically for use as a protective UV breather membrane behind open jointed façades and rainscreen cladding systems.
- Its unique combination of UV resistance, water resistance, and breathability behind open-jointed cladding makes it the ideal solution for modern architectural designs where the protective membrane is visible.
Installing Breather Membrane
- Façadeshield UV is fixed to the supporting construction mechanically with staples or similar.
- Proctor's Façadeshield UV must be laid vertically from top to bottom or horizontally with a minimum overlap of 100 mm. Use Façadeshield tape when joining together lengths of Façadeshield UV or for other joints where an air tight seal is required.
- The membrane must be free from dust and grease and the substrates must be dry and stable.
- Apply pressure by hand or roller to ensure a strong bond. The adhesive used does not contain resins or other additives which could cause the adhesive film to become brittle and therefore this product offers resilience on site.
- Battens / back ventilation must be provided between the Façadeshield UV and the external façade covering
- Proctor's Facadeshiled is a 50M log, 1.5M wide roll. One roll covers 75 Sqm
- It is a a non-woven breathable membrane that combines exceptional water resistance and UV resistance
- Its aesthetically pleasing dark colour is designed to provide a discreet, uniform "shadow" appearance behind open joints, enhancing the final look of the cladding.
- This breather membrabe comes with the reassurance of a CE mark, showing the product's fitness for purpose and compliance with European standards.
- Façadeshield UV enhances the air tightness of the building, whilst reducing the risk of condensation due to its’ high vapour permeability.
| Product Type | UV resistant Breather Membrane |
| Brand | Proctor |
| Length | 50M |
| WIdth | 1.5M |
| Thickness | 0.62mm |
| Material | Polyester Spunbond with coating |
| Water Vapour Resistence | EN12572 |
| Vapour Resistence | 0.04m |
| Coverage | 75 sqm |
| Reaction to Fire | Class B, s1-d0 |
| Order Quantity | Delivery Charges |
|---|---|
| 1 - 3 Rolls | £35 +VAT |
| 4- 6 Rolls |
£60 +VAT |
| 7 - 35 Rolls | £95 +VAT |
