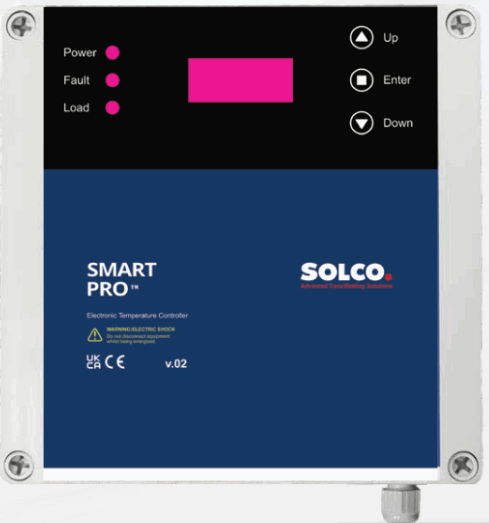

The Smart-Pro is a trace heating electronic temperature controller designed for freeze protection and temperature maintenance in non-hazardous locations. It is built for higher-specification demands required by water services plants, building construction engineers, and industrial facilities
Key Features
Continuous Monitoring: Actively tracks heating circuits 24/7 - 365 days to alert users via an alarm if a fault occurs.
Soft-Start Technology: Eliminates high inrush currents, allowing for longer heating circuit lengths than standard units.
Configurable Fail-Safe: Programmable to keep the heating circuit permanently ON or default to OFF upon fault detection.
Smart Connectivity: Includes a TTL-RS232 communications port that converts to most standard protocols for off-site programming.
Technical Specifications
The unit operates within a 100-270Vac (50/60 Hz) range, handling up to 32A, with a -50°C to +499°C control range and 4-wire PT-100 sensor input. The IP-rated enclosure features a 170mm x 228mm x 110mm design.
- Smart-PRO actively monitors the heating circuit(s) continuously 24 hrs / 365 days per year.
- Its built-in feature eliminates inrush currents on Solco self-regulating heating cables
- Designed for use in freeze protection and temperature maintenance applications in commercial, residential, and non-residential applications.
| Product Type | Trace Heating Electronic Thermostat |
| Product Code | Smart Pro |
| Brand | Solco |
| Rated Voltage | 100Vac (min) – 270Vac (max), 50/60 Hz |
| Temperature Setting Range | -50°C to +499°C |
| Control Method | On/Off |
| Enclosure Dimensions | 170mm x 228mm x 110mm |
| Max. Load Current | 32A |
