A Comprehensive UK Guide to Between Rafter Insulation: Materials, Best Practices, and Protecting Your Roof

I. Introduction: Understanding Between Rafter Insulation

Between rafter insulation, a key method of pitched roof insulation, involves placing insulation material directly between the sloping timbers, known as roof rafters, that form the structure of a pitched roof. This approach differs significantly from traditional "cold loft" insulation, where insulation is laid at the level of the ceiling joists, leaving the loft space itself cold and outside the building's thermal envelope. By insulating at the rafter line, the loft or attic space becomes a "warm loft," effectively making it part of the conditioned, habitable area of the house. This method commonly employs insulation in the form of semi-rigid slabs or flexible rolls.

The importance of between rafter insulation for UK homes has grown considerably. With a substantial portion of a home's heat, potentially up to 25%, escaping through an uninsulated roof, effective roof insulation is a primary target for improving energy efficiency and reducing heating bills. Furthermore, this insulation method is fundamental for homeowners looking to convert their loft spaces into functional living areas, such as bedrooms, home offices, or playrooms, as it creates a thermally comfortable environment. The transformation of a cold, often underutilised attic into a warm, usable part of the home not only enhances lifestyle possibilities but can also contribute to the property's overall value. However, this change in the roof's thermal dynamics necessitates careful consideration of moisture management and ventilation to protect the roof structure itself.

Beyond simple heat retention, between rafter insulation offers a multifaceted value proposition. Many materials used for this purpose also provide significant acoustic insulation, reducing noise from outside, and can contribute to the fire safety of the roof structure. This article aims to provide a comprehensive guide for UK homeowners, exploring the benefits of between rafter insulation, the array of materials available, critical best practices for installation, the importance of breathability and ventilation in preventing issues like rafter rot, relevant UK building regulations, and a crucial note of caution regarding certain insulation types like polyurethane (PU) spray foam.

II. The Benefits: Why Choose Between Rafter Insulation?

Opting to insulate a pitched roof using the between rafter method offers a compelling range of advantages for homeowners, extending beyond mere temperature control to encompass financial savings, enhanced living quality, and increased property appeal.

A primary driver for installing between rafter insulation is the potential for significant energy savings. By addressing one of the largest areas of heat loss in a typical home, this method can lead to notable reductions in annual heating costs. This improved thermal efficiency means heating systems do not have to work as hard to maintain a comfortable indoor temperature, directly translating into lower energy consumption.

Enhanced home comfort is another immediate benefit. A properly insulated roofline helps to keep the home warmer during winter by retaining internally generated heat. Some insulation materials can also contribute to a cooler home in summer by reducing the amount of solar heat gain through the roof. Furthermore, it helps to eliminate uncomfortable cold draughts that can otherwise emanate from an uninsulated roof space, leading to a more consistent and pleasant indoor environment.

Investing in between rafter insulation can also increase property value. A home that is more energy-efficient and boasts a comfortable, potentially habitable loft space is generally more attractive to prospective buyers. This can also lead to an improved Energy Performance Certificate (EPC) rating, a factor of growing importance in the UK property market.

The most transformative benefit for many is the ability to make the loft space usable and versatile. By bringing the loft within the home's thermal envelope, it can be converted into a comfortable bedroom, a quiet home office, a children's playroom, or simply well-conditioned storage space. This effective increase in the home's functional area can significantly enhance a family's quality of life.

Finally, many between rafter insulation materials offer valuable acoustic insulation. This is particularly beneficial for homes in noisy areas, such as near busy roads or flight paths, as it can substantially reduce the intrusion of external noise pollution. Materials like stone wool are specifically noted for their excellent sound-absorbing qualities, making the insulated loft space, and indeed the rooms below, quieter and more peaceful.

The combined effect of these benefits – energy savings, improved comfort, additional usable space, and a quieter environment – significantly boosts a property's overall desirability and marketability. In an era of rising energy costs and an increasing trend towards home working, a well-insulated, quiet, and usable loft space represents a premium feature that impacts not only financial outgoings but also daily well-being and productivity.

III. Choosing Your Weapon: Insulation Materials for Between Rafters

Selecting the appropriate material for insulation between the rafters is a critical decision, with various factors influencing the choice. Homeowners should consider the thermal performance (often expressed as U-value, R-value, or thermal conductivity), breathability (vital for the health of timber rafters), fire resistance (typically indicated by Euroclass ratings), sustainability and environmental impact, ease of installation (which may affect DIY suitability and professional costs), overall cost, and durability, including resistance to slumping or degradation over time.

Detailed Exploration of Suitable Materials:

A. Mineral Wool (Stone Wool & Glass Wool)

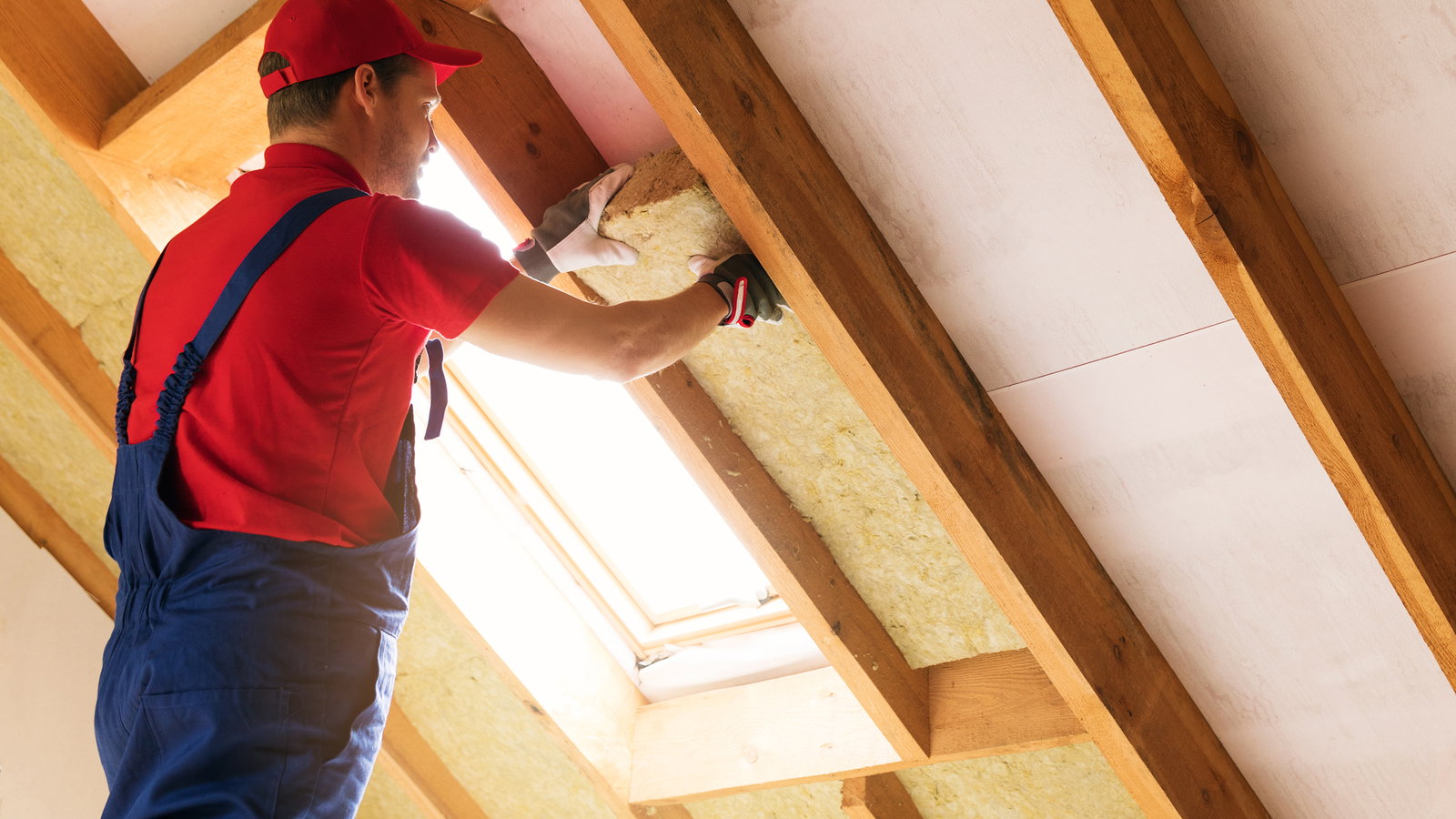

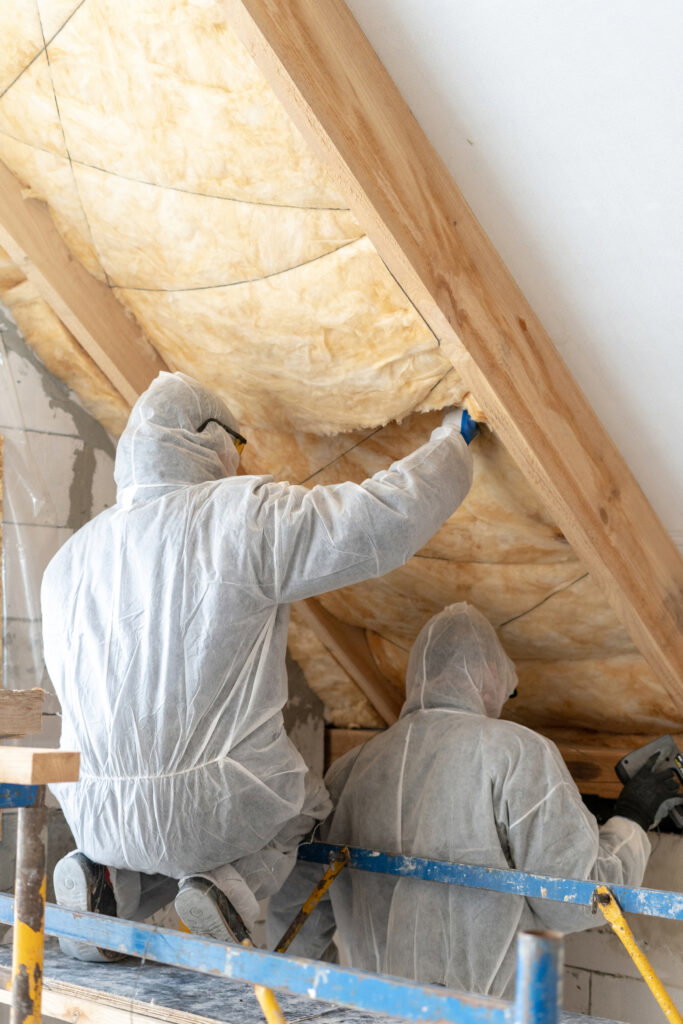

Mineral wool, available in rolls and semi-rigid slabs, is a widely used insulation material manufactured from molten rock (stone wool) or glass fibres (glass wool).

• Thermal Performance: It offers good thermal insulation properties.
• Breathability: Mineral wool is generally considered breathable, allowing water vapour to pass through its structure, which helps in managing moisture within the roof construction.
• Fire Resistance: A key advantage is its excellent fire resistance. Stone wool, for instance, is typically non-combustible and can achieve a Euroclass A1 rating, the highest classification.
• Acoustic Properties: Mineral wool provides very good sound absorption, contributing to a quieter indoor environment.
• Sustainability: Many mineral wool products contain recycled content. Stone wool is derived from abundant natural volcanic rock and is known for its durability.
• Installation: It is relatively easy to cut and fit between rafters. Some products, like Rockwool Flexi® slabs, feature a flexible edge designed to ensure a tight fit against the rafters, minimising air gaps and simplifying installation.
• Pros: Mineral wool is often cost-effective, offers superior fire safety, and provides good all-round thermal and acoustic performance. It is also readily available.
• Cons: Glass wool can cause skin irritation during handling, requiring appropriate protective equipment. Careful fitting is essential to avoid thermal bridging through gaps.

B. Sheep's Wool

Sheep's wool insulation is a natural and renewable material, offering an eco-friendly alternative.

• Thermal Performance: It provides good thermal resistance, with U-values cited between 0.035 to 0.039 W/mK and R-values around 3.5 to 3.8 per inch, comparable to some conventional materials.
• Breathability: A standout feature is its excellent breathability. Sheep's wool is hygroscopic, meaning it can absorb and release significant amounts of moisture vapour (up to 40% of its own weight according to one source) without compromising its thermal performance. This helps to buffer humidity levels within the building fabric, contributing to better indoor air quality and moisture control.
• Fire Resistance: Sheep's wool has inherent fire-resistant properties and is often treated with natural fire retardants like borax to enhance this and provide insect repellence.
• Sustainability: It is a highly sustainable option, being biodegradable, renewable, and having low embodied energy. Sheep naturally sequester carbon dioxide as they grow their fleece.
• Installation: Sheep's wool is generally safe and non-toxic to handle and can often be cut with robust scissors.
• Pros: Excellent moisture regulation capabilities, positive impact on indoor air quality, highly sustainable, good thermal and acoustic insulation.
• Cons: Typically, sheep's wool insulation is more expensive than mineral wool.

C. Wood Fibre

Wood fibre insulation is manufactured from wood chips or recycled wood, processed into flexible batts or rigid boards.

• Thermal Performance: It offers good thermal insulation, with thermal conductivity values (k-values) typically ranging from 0.038 to 0.043 W/mK depending on the specific product and density. Wood fibre also possesses good thermal mass, which can help to mitigate overheating in summer by slowing down the transfer of heat into the building.
• Breathability: Wood fibre insulation is highly breathable and vapour-open, allowing moisture to pass through it, which is beneficial for timber structures.
• Fire Resistance: Wood fibre insulation products typically have a Euroclass E fire rating. While Euroclass E signifies a "high contribution to fire" in isolation, when incorporated into a building system, wood fibre can perform well due to the formation of a char layer on its surface when exposed to fire. This charring can slow down the spread of fire and heat penetration. The performance in a complete roof assembly (REI values) can be very good, highlighting the importance of system design over individual material classification in some cases.
• Sustainability: It is a renewable resource, often made from sustainably managed forests or recycled wood, and it sequesters carbon during the growth of the trees. It is also biodegradable.
• Installation: Flexible wood fibre batts can be friction-fitted between rafters.
• Pros: Eco-friendly, good thermal mass for summer comfort, highly breathable, good acoustic insulation properties.
• Cons: Can be more expensive than some conventional options. The Euroclass E fire rating means that careful attention must be paid to the overall roof system design to meet specific fire safety regulations.

D. PIR (Polyisocyanurate) Boards

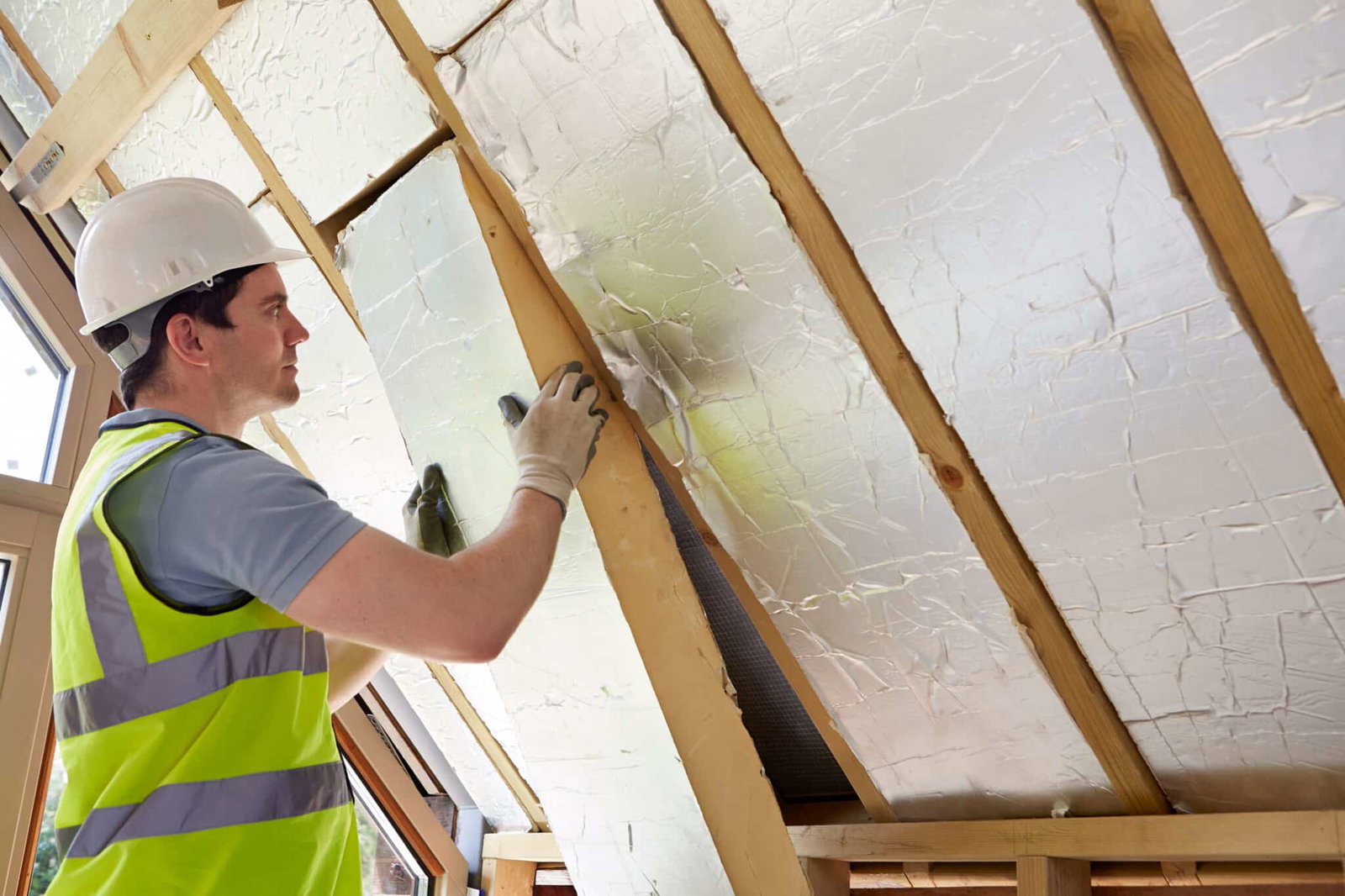

PIR insulation boards consist of rigid foam, commonly faced with reflective foil layers.

• Thermal Performance: PIR boards, such as those from brands like Celotex, offer very high thermal performance for their thickness, with low thermal conductivity values (e.g., around 0.022 W/mK). This makes them, and similar products from manufacturers like Kingspan, suitable for achieving target U-values in situations where rafter depth is limited.
• Breathability: PIR boards, especially those with foil facings, have very low breathability. The foil acts as a vapour barrier. This characteristic necessitates careful consideration of the overall roof ventilation strategy and the potential for interstitial condensation if not managed correctly.
• Fire Resistance: The fire resistance of PIR boards varies. Some products can achieve Euroclass B or C ratings, or Class 0 or Class 1 under UK Building Regulations, offering better fire performance than expanded polystyrene (EPS) or extruded polystyrene (XPS) foams.
• Sustainability: PIR is a synthetic material derived from petrochemicals, so it is less environmentally friendly than natural insulation options.
• Installation: PIR boards must be cut very precisely to fit snugly between rafters. All joints and perimeters should be carefully taped with appropriate foil tape to maintain airtightness and the integrity of the vapour barrier provided by the foil facings.
• Pros: Excellent thermal efficiency for a given thickness, making them ideal for shallow rafters; relatively lightweight and easy to handle.
• Cons: Low breathability demands a robust ventilation and vapour control strategy. Achieving a perfect, gap-free fit around irregular or uneven rafters can be challenging. Less eco-friendly compared to natural fibre insulations.

E. Multi-foil Insulation

Multi-foil insulation products are made up of multiple layers of reflective foil interspersed with wadding or foam layers.

• Thermal Performance: These insulations primarily work by reflecting radiant heat. Their thermal performance can be a subject of debate and is highly dependent on correct installation, particularly the provision of still air gaps on either side of the material.
• Breathability: Multi-foils are generally not breathable and act as vapour barriers.
• Fire Resistance: Fire performance varies between different multi-foil products.
• Sustainability: They typically contain plastics and aluminium.
• Installation: Can be relatively easy to install, often stapled directly to the rafters.
• Pros: Thin and lightweight, easy to handle. Can be effective in reflecting radiant heat if installed meticulously according to manufacturer instructions, including the necessary air gaps.
• Cons: Actual thermal performance is heavily reliant on the quality of installation and the integrity of the surrounding air gaps. Can be more expensive for the achieved thermal benefit compared to some traditional insulation materials. There is a potential risk of interstitial condensation if not detailed correctly with an appropriate ventilation strategy due to their low permeability.

The choice of material involves balancing these properties. For instance, materials like sheep's wool and wood fibre offer excellent breathability and sustainability but may come at a higher initial cost. Conversely, PIR boards provide high thermal performance in a slim profile but require meticulous attention to vapour control and ventilation due to their impermeability. Mineral wool often presents a good balance of performance, cost, and fire safety.

This "breathability spectrum" is a critical consideration; using low-breathability insulation without a well-thought-out strategy for ventilation and vapour control can lead to moisture accumulation and potentially severe damage to the roof structure over time. The increasing availability and detailed performance data for natural materials like sheep's wool and wood fibre indicate a significant shift in the market towards options that prioritise not only thermal efficiency but also occupant health and environmental sustainability.

Table: Comparative Overview of Between Rafter Insulation Materials

Note: Thermal conductivity and fire ratings can vary between specific products and manufacturers. Always consult manufacturers' data for precise figures.

IV. The Crucial Duo: Breathability and Ventilation to Prevent Rafter Rot

Ensuring the longevity of a roof structure, particularly its timber rafters, hinges critically on managing moisture. When insulating between rafters to create a "warm loft," understanding the principles of breathability and ventilation is paramount to prevent issues like interstitial condensation and the subsequent risk of timber decay or rot.

Timber is a natural material that inherently interacts with moisture in its environment, absorbing and releasing water vapour. If timber components within a roof become persistently damp and are unable to dry out, they create ideal conditions for fungal growth, leading to rot and a significant weakening of the roof's structural integrity. Traditional UK roof constructions often inadvertently allowed for a degree of natural ventilation through small gaps in roof tiles or slates and at the eaves, which helped to dissipate moisture. However, when modern insulation materials are introduced, particularly those with low permeability, these traditional ventilation paths can be compromised if the insulation strategy is not carefully designed.

A key concern in warm roof constructions is interstitial condensation. This occurs when warm, moist air from the habitable spaces of the house rises and permeates into the roof structure. If this moisture-laden air encounters a surface within the roof assembly (such as the underside of the roofing felt, sarking boards, or even within the insulation itself) that is cold enough to be below its dew point temperature, the water vapour will condense into liquid water. This trapped moisture can saturate the insulation, drastically reducing its thermal effectiveness, and more critically, lead to persistent dampness in the timber rafters, fostering mould growth and eventual rot.

To counteract these risks, a multi-faceted approach to moisture management is essential:

The Role of an Air Gap (Ventilation Channel):

A continuous air gap, or ventilation channel, is often required above the insulation layer, directly beneath the roofing underlay or sarking board. The primary purpose of this gap, ensuring effective ventilation between the insulation and the roof underlay, is to allow a consistent flow of air, typically entering at the eaves and exiting at the ridge or through high-level vents. This airflow serves to carry away any water vapour that might migrate through the insulation from the house below, or any moisture that might penetrate from the outside (e.g., through a minor tile defect).

A commonly recommended minimum size for this air gap between the insulation and the underlay is 25mm, though an ideal gap of 50mm is often preferred, particularly with non-breathable roofing felts. For this ventilation path to be effective, it must remain unobstructed along its entire length from the eaves to the ridge.

Understanding Vapour Control Layers (VCLs):

A Vapour Control Layer (VCL) is a specialised membrane that exhibits high resistance to the passage of water vapour. It is always installed on the warm side (the interior side, closest to the heated living space) of the insulation. The function of the VCL is to significantly limit the amount of moisture vapour generated within the home (from activities like cooking, bathing, and breathing) from entering the insulation and the colder parts of the roof structure where it could condense.

VCLs are particularly crucial when using insulation materials with lower breathability, or in rooms with high humidity levels like kitchens and bathrooms directly below the insulated roof. For a VCL to perform effectively, it must be continuous. This means all joints between sections of the membrane must be lapped and sealed with appropriate VCL tape, and meticulous sealing is required around any penetrations such as light fittings, pipes, or structural elements. A poorly installed or damaged VCL can negate its benefits and potentially trap moisture.

The Function of Breathable Membranes (Roofing Felts/Underlays):

Modern roofing underlays are often "breathable membranes." These are installed on the cold side of the insulation, directly beneath the roof tiles or slates. These advanced materials are designed to be waterproof, preventing rainwater from entering the roof structure, while also being permeable to water vapour. This permeability allows any moisture that does find its way into the rafter space (either from inside or outside) to escape outwards, away from the timber and insulation.

This contrasts sharply with older, traditional bitumen-based roofing felts, which are typically non-breathable (vapour impermeable). If a non-breathable felt is present and is not being replaced, the 50mm ventilated air gap above the insulation and below the felt becomes absolutely critical. This gap must be actively ventilated to the outside air, usually via vents at the eaves and ridge, to allow trapped moisture to be flushed out.

The interplay between the chosen insulation material, the provision of an adequate air gap, the correct installation of a VCL, and the type of roofing membrane (breathable or non-breathable) forms a complete system for moisture management. Failure to address any one of these components correctly can compromise the entire system, potentially leading to serious and costly structural damage. The type of existing roofing felt, for instance, is a crucial diagnostic factor; a non-breathable felt necessitates a more robust and carefully designed ventilation strategy for the air gap above the insulation, which can impact the scope and cost of the insulation project.
