A Comprehensive Guide: Can Foam Pipe Insulation Be Used Underground in the UK?

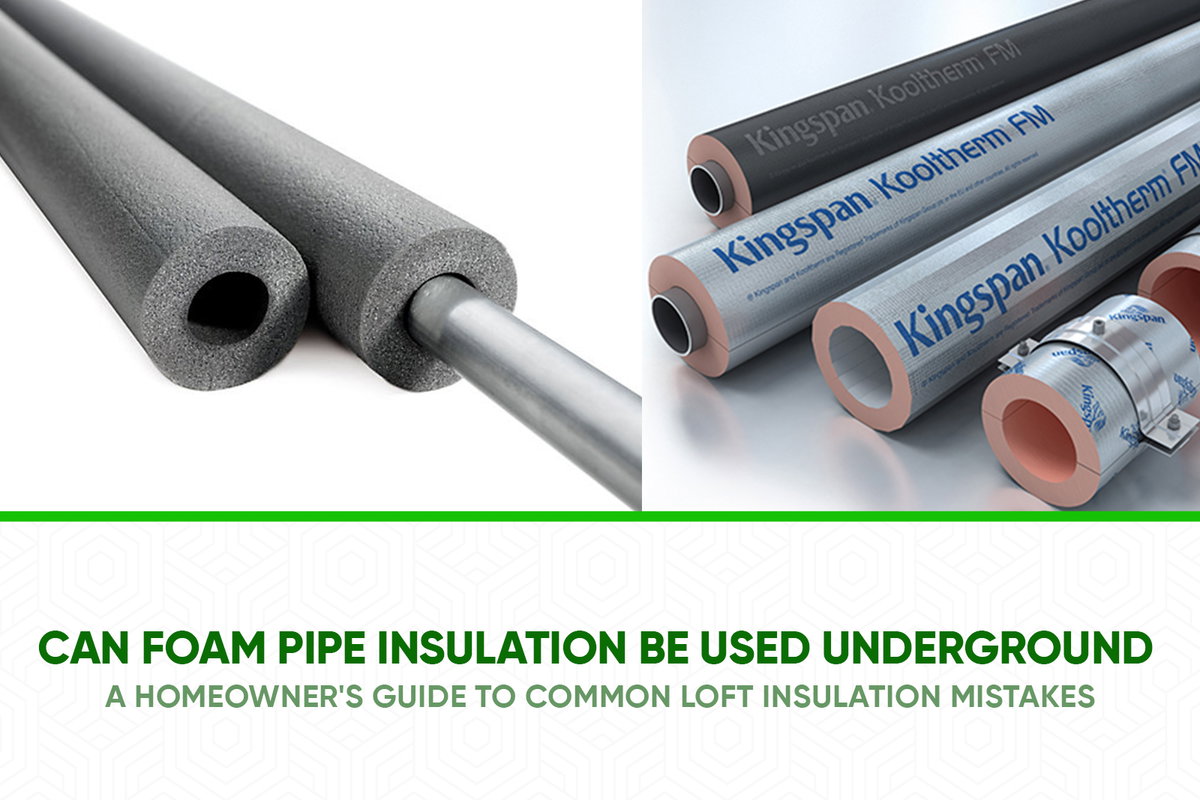

Foam Pipe Insulation

TLDR: Executive Summary

Foam pipe insulation can be successfully deployed beneath ground level in the UK, but its application requires specific material selection and rigorous mechanical protection. Direct burial of standard pipe lagging is strongly discouraged due to the certainty of moisture ingress and subsequent thermal failure. For acceptable long-term performance, the foam must possess an inherent closed-cell structure (such as Polyethylene or Nitrile Rubber) and be fully encapsulated within a protective, waterproof ducting system. For high-performance heat distribution systems, such as those governed by Building Regulations Part L, the complexity of maintaining performance and guaranteeing longevity necessitates the use of specialised, factory-controlled pre-insulated pipe systems, often utilising rigid Polyurethane foam cores. Critical services, such as domestic water supply, must be installed and protected down to a minimum depth of 750mm in compliance with Water Regulations.

Section I: The Technical Imperative for Underground Pipe Insulation

1.1. Defining the Need for Subterranean Thermal Management

Pipe insulation, commonly referred to as lagging, serves a vital function across domestic, commercial, and industrial pipework systems. When pipes are buried underground, the requirements of the insulation shift from general protection to highly resilient thermal and mechanical safeguarding. The primary objectives of subterranean thermal management are threefold: to prevent frost damage to cold or potable water services during winter months; to minimise heat loss in distribution systems, such as central heating, hot water, or district heating networks; and to control condensation on cold or chilled water lines.

Effective insulation is fundamentally linked to long-term energy efficiency and operational cost reduction. This is particularly relevant in the UK, where modern renewable energy systems, including heat pumps and biomass boilers, increasingly rely on buried pipework to transfer thermal energy between the source and the building. Failure to maintain the integrity of the insulation results directly in unnecessary energy consumption and a failure to meet operational efficiency targets.

1.2. The Unique Environmental Challenges of Soil Burial

The decision to install any insulation material underground must be informed by the specific environmental challenges inherent to soil burial, which differ significantly from controlled internal environments. The underground environment subjects materials to relentless moisture, continuous mechanical loads, and various chemical and biological threats.

1.2.1. Moisture Ingress and Thermal Degradation

Soil, regardless of local climate, is consistently damp and often waterlogged. Moisture ingress represents the single greatest threat to the performance and longevity of foam insulation. Insulation materials function by trapping air or gas within their structure, leveraging the low thermal conductivity of that gas. When water infiltrates and displaces the trapped air within the foam matrix, the material's thermal conductivity dramatically increases. Empirical research confirms that this displacement can lead to severe performance degradation, with specific insulation types experiencing a factor increase in thermal conductivity of up to three times their original dry value when moisture is absorbed.

This phenomenon demonstrates a crucial principle: the material selection for subterranean use must prioritise moisture resistance and longevity over marginal improvements in initial thermal conductivity. A foam with superior closed-cell integrity that remains dry in soil will yield far greater long-term performance than a foam with a slightly lower thermal conductivity that readily absorbs water when compromised.

1.2.2. Mechanical Load and Failure

Buried pipework is subjected to both static loads (the weight of the overlying soil and hard surfaces) and dynamic loads (ground movement, traffic pressure). These forces exert mechanical pressure on the insulation, demanding materials with sufficient compressive strength or external protection.

Many high-performing foams, such as phenolic foam, are inherently brittle. Without robust external protection, this brittleness means they are prone to cracking and breaking under pressure from backfill material or shifting ground. Such cracking not only leads to catastrophic thermal bridging but also provides direct pathways for water and contaminants to compromise the entire system.

1.2.3. Chemical and Biological Risks

The soil surrounding pipework can harbour aggressive chemical agents (e.g., acidity or alkalinity) that may degrade certain insulating materials or the pipe material itself over decades. Furthermore, the presence of rodents and insects poses a biological threat, as these pests may tunnel through or consume materials, compromising the insulation structure and creating channels for water flow. Therefore, robust casing or the selection of inert materials, such as Foamglass (a non-foam alternative noted for its resistance to rodent and insect damage), becomes essential to ensure minimal degradation and a long service life.

Section II: Comparative Analysis of UK Foam Insulation Materials for Subterranean Use

The UK market offers several foam insulation options, each presenting different characteristics and suitability profiles for the unique demands of underground installation.

2.1. Polyethylene (PE) Foam Insulation

Polyethylene foam is widely used for pipe insulation due to its flexibility, light weight, and cost-effectiveness. Crucially, PE foam insulation is manufactured with a closed-cell structure. This architecture is fundamental to its application underground, as the distinct, encapsulated cells offer inherent resistance to water and moisture absorption, mitigating the severe thermal performance loss observed in less resilient materials.

PE foam insulation is frequently selected for general underground pipe insulation, particularly for water services where the primary concern is preventing frost damage and minimising incidental heat transfer. While offering good insulation against both cold and heat , its mechanical resilience is low, meaning site-applied PE lagging must be protected by external ducting or sleeving to shield it from crushing or abrasion during the backfilling process. Products such as Climaflex are prominent examples of PE foam insulation available in the UK.

2.2. Elastomeric (Nitrile Rubber) Foam

Elastomeric foam, typically manufactured from synthetic rubber, is another highly effective option for damp subterranean environments. This material is characterised by its flexibility and spongy texture. Similar to PE, elastomeric foam boasts an exceptional closed-cell structure, making it particularly effective at preventing moisture penetration.

In terms of thermal performance, placing it as a good insulating product. Notably, the elastomeric structure provides a better thermal conductivity value when compared directly to standard polyethylene foam insulation, reinforcing its suitability where strong moisture resistance is paired with excellent thermal properties. As with all site-applied lagging, external mechanical protection remains necessary to preserve its integrity under soil load.

2.3. High-Performance Rigid Foams: Polyurethane (PUR) and Phenolic

For applications demanding the highest levels of thermal efficiency, rigid foams like Polyurethane (PUR) and Phenolic insulation are frequently specified above ground.

2.3.1. Polyurethane (PUR) Insulation

PUR foam is highly valued for its excellent thermal insulation capabilities and structural rigidity. PUR can achieve very low thermal conductivity values. This efficiency makes it suitable for underground environments, particularly within high-specification systems such as district heating networks.

However, PUR is inherently vulnerable to moisture in direct burial scenarios if unprotected. To maintain its thermal advantage, it must be safeguarded. Its chemical resistance is good, which is a beneficial factor in certain underground environments, but for successful long-term subterranean deployment, rigid PUR is almost exclusively used as the core insulation within pre-insulated pipe systems.

2.3.2. Phenolic Foam

Phenolic insulation offers a combination of great thermal performance and natural fire resistance. Prominent manufacturers supply phenolic foam pipe insulation under brand names such as Kingspan Kooltherm.

Despite its thermal advantages, phenolic foam presents considerable challenges underground. It tends to be brittle, meaning it is susceptible to cracking and mechanical failure when subjected to soil pressure. Furthermore, its thermal properties are highly sensitive to moisture. Research has indicated that phenolic pipe insulation can suffer increase in its thermal conductivity with only a volume moisture content. Therefore, for subterranean use, phenolic foam requires comprehensive and costly waterproofing and heavy mechanical damage protection to ensure its long-term integrity. The significant risk of thermal degradation due to moisture often renders site-applied phenolic foam an impractical choice for general underground installation.

BUY PHENOLIC FOAM

2.4. Specialised Alternative: Foamglass

While not a foam pipe insulation in the conventional sense, Foamglass is a recognised alternative for high-integrity underground applications. This material offers exceptional, inherent water resistance without the need for additional external barriers. It is non-combustible (rated Euroclass A1), highly dimensionally stable, and capable of bearing heavy loads without deformation. Its longevity and resistance to rodent damage make it suitable for the most challenging and critical subterranean installations.

Section III: Suitability, Specification, and Regulatory Context in the UK

3.1. Confirming General Suitability and Key Caveats

The suitability of foam pipe insulation for underground use is not absolute but conditional. The general answer is affirmative, provided that the product is specifically designed and labelled for subterranean installation and that it is rigorously protected from mechanical damage, ground pressure, and water ingress. The primary caveat is the material's temperature limit. Standard foam pipe insulation is unsuitable for high-temperature or high-pressure applications, such as steam pipes , as the foam may melt, deform, or rupture. In these cases, alternative insulation types, including mineral wool, fibreglass, or ceramic materials, must be used.

3.2. Compliance with UK Energy Efficiency Standards (Part L)

For any new building works, extensions, or material changes in the UK, the installation must comply with Part L of the Building Regulations, which sets standards for energy efficiency and thermal performance. This compliance is crucial for underground pipework that transports thermal energy, such as hot water or heating flow and return pipes.

Part L dictates minimum thermal performance standards and specifies maximum allowable heat loss rates for pipes based on their size and operating temperature. These regulations place a substantial constraint on the selection of insulation for subterranean heating pipes. Because the thermal performance of site-applied foam lagging is highly vulnerable to installation variability and subsequent moisture degradation , it is extremely difficult to guarantee the predictable, long-term heat loss reduction required to satisfy Part L compliance.

For this reason, adherence to the specific performance demands of Part L for subterranean thermal transfer systems almost always necessitates the use of pre-insulated pipe systems. These factory-manufactured solutions offer verifiable, guaranteed thermal performance characteristics that ensure the long-term energy efficiency targets are met.

Buy Foam Pipe Insulation

Armacell Tubolit Polyethylene Foam Pipe Insulation - PE Pipe Lagging in Box Quantities

£66.02~~£72.62~~

Add to cart

Climaflex Pipe Insulation - 1M Length - PE Polyethylene Foam Pipe Lagging - Box Quantities

£64.07~~£70.48~~

Add to cart

Box Quantities - Climaflex PE Pipe Insulation - 2M Foam Pipe Lagging

£114.85~~£126.33~~

Add to cart

Rubaflex Nitrile Rubber Pipe Insulation - 2M SLIT Black Foam Lagging

£89.43~~£98.37~~

Add to cart

Rubaflex - Nitrile Rubber Pipe Insulation - 2M Unslit

£89.27~~£98.20~~

Add to cart

3.3. Technical Guidance: The Role of BS 5422

The technical benchmark for determining the correct level of insulation in the UK is BS 5422:2023. This standard provides comprehensive guidance for HVAC applications operating across a wide temperature range. It specifies that the minimum required insulation thickness must increase relative to the pipe diameter and operating temperature.

When specifying foam insulation for underground use, the thickness must be calculated using BS 5422 guidelines to ensure the pipe meets the energy efficiency requirements set out in Part L. This calculation is crucial because the required thickness must compensate for the challenging environment and any potential, albeit protected, heat loss to the surrounding soil.

Section IV: UK Regulatory Depths and Best Practice Installation

Successful underground installation depends as much on the ground preparation and protective measures as it does on the foam material itself. Rigorous adherence to UK regulatory requirements for burial depth and accepted engineering best practices is mandatory.

4.1. Compliance with UK Water Regulations and Drainage Guidance

UK Water Regulations specify minimum installation depths to ensure frost protection and structural stability for critical services. External domestic water service pipework must be appropriately insulated and protected down to a minimum depth of 750mm below the finished external floor level. This depth is critical for protecting the pipe from the typical UK frost line and providing adequate protection against surface loads and movement.

Furthermore, where services transition from below ground to above ground, such as at external meter installations, continuous insulation and protection are required. Insulated ducting must extend down to the required 750mm depth if the pipe runs higher than 130mm above ground level at the property entry point. This highlights the need for a continuous thermal and mechanical envelope.

For comparison, UK drainage guidelines, outlined in Approved Document H, recommend minimum depths for other buried services: foul sewers typically start at 750mm, while surface water and land drainage may start at 600mm.¹³ The higher minimum for critical water services reinforces the importance of protection at the 750mm level.

Table Title: Minimum Depths for UK Underground Pipework (Regulatory Context)

Pipe Type/Function	Minimum Regulatory Depth (From Finished Ground Level)	Relevant UK Guidance/Authority
Domestic Water Service Pipe	750mm	Water Supply (Water Fittings) Regulations 1999 / Utility Guidance.
Foul Sewers	750mm	Approved Document H (Part H of Building Regs)
Surface Water Drains	600mm	Approved Document H (Part H of Building Regs)
Land Drainage	600mm	General Guidelines (Varies by location)

4.2. Preparation of the Trench and Bedding Layer

The preparation of the trench base directly impacts the longevity of both the pipe and its insulation. Before installation, the trench must be thoroughly inspected, and all sharp stones or large rocks removed, as these pose a significant risk of puncturing or damaging the foam insulation or its protective outer casing during backfilling.

Best practice dictates laying a minimum layer of 50mm of sharp sand or washed granular material on the trench floor. This bedding serves two key purposes. Firstly, it provides a stable, homogenous base, distributing loads evenly and preventing abrasive contact with the native soil. Secondly, and critically for metal pipes (such as copper), surrounding the pipe entirely with a homogenous backfill prevents the creation of an oxygen differential cell. Laying the pipe directly onto undisturbed or 'virgin' soil can cause localised corrosion in that specific area, which can accelerate pipe failure even if the foam insulation itself remains structurally sound.

4.3. Mandatory Mechanical and Waterproof Protection

The central requirement for using foam pipe insulation underground is the provision of robust, external protection. Standard foam lagging is not designed to withstand the abrasive, chemical, and compressive forces of soil burial alone.

Many UK municipalities require all underground piping, regardless of insulation type, to be encased in a polyethylene encasing wrap or sleeving material. This sleeving acts as a vital barrier: it prevents aggressive soil chemicals from leaching into or degrading the insulation material, and it provides essential secondary defence against water penetration and mechanical abrasion.

It is essential that extreme care is exercised during the installation of this protective wrapping or ducting. Any tears, rips, or damages in the protective barrier can permit unwanted water and contaminants to collect between the sleeve and the insulation, concentrating corrosive agents and potentially leading to premature system failure. The integrity of the protection system is inextricably linked to the longevity of the foam's performance.

Section V: The Mechanism of Thermal Degradation and Longevity

5.1. The Science of Moisture-Induced Thermal Failure

Insulation materials are effective because they utilise trapped gases, which have extremely low thermal conductivity values. The thermal conductivity of water, however, is significantly higher than that of air. When foam insulation absorbs moisture from the surrounding soil—a near certainty in any compromised underground installation—the water displaces the insulating gas within the foam matrix.

This process results in a dramatic reduction of thermal resistance. For materials such as phenolic insulation, empirical data demonstrates that its thermal conductivity can increase to 1.6 times its original value with only a minor percentage of moisture absorption. This massive decrease in thermal efficiency means that even a small compromise in the waterproofing layer can negate years of expected energy savings, turning a supposedly high-performing system into an ineffective heat sink. The physical robustness of the installation is therefore a direct determinant of the system's long-term energy efficiency.

5.2. The Importance of Closed-Cell Structure for Resilience

The selection of foam type is driven by its cellular structure. Closed-cell foams, such as PE and Nitrile Rubber, are significantly more resilient in damp conditions than open-cell or partially closed-cell alternatives. In closed-cell foams, the gas bubbles are individually encapsulated, forming a matrix that fundamentally resists the capillary action and diffusion of water through the material mass.

This intrinsic resistance allows closed-cell foams to provide a measure of self-protection. While external waterproofing (ducting) is always essential for mechanical protection and ensuring long-term dryness, the closed-cell nature of PE or Nitrile foam acts as a critical failsafe, safeguarding the majority of the material's thermal properties even if the outer protection experiences minor breaches or joint degradation.

5.3. Managing the Risk of Condensation Underground

For pipes carrying cold or chilled water, insulation serves a different, but equally important, function: preventing condensation. Condensation occurs when warm, moist ambient air contacts a surface below its dew point. In underground environments, pipes transporting chilled water (e.g., from cooling systems or certain ground source heat pump circuits) can induce condensation.

Unprotected condensation on underground pipework is highly detrimental as it introduces continuous moisture directly to the pipe surface, significantly increasing the risk of corrosion under insulation (CUI). Furthermore, this condensate soaks the surrounding insulation and soil, creating a persistent zone of high thermal conductivity that accelerates heat gain into the cold line. Effective insulation, particularly closed-cell foam, must maintain a consistent thermal barrier to keep the outer surface above the soil's dew point, thereby protecting the metal pipe structure and preserving the system’s performance.

Section VI: Specialised High-Performance Underground Systems

When thermal efficiency is paramount, and compliance with strict standards like Part L is non-negotiable, the industry standard shifts away from site-applied lagging towards specialised, pre-assembled systems.

6.1. The Necessity of Pre-Insulated Pipe Systems

Pre-insulated pipe systems are purpose-designed for subterranean transport of heated or chilled fluids, covering applications such as district heating, centralised hot water supply, and high-efficiency renewable energy circuits.² These systems represent the professional solution for complex thermal demands.

A typical system comprises three integrated components: an internal carrier pipe (often made of PEX or steel), a thick, high-performance foam insulation layer (frequently rigid Polyurethane), and a rugged, corrugated external casing or jacket.² The system design often includes a built-in diffusion barrier placed between the carrier pipe and the insulation to ensure that the foam maintains its original heat retention efficiency throughout the entire service life.

6.2. Benefits of Factory-Assembled Solutions

The primary advantage of factory-assembled pre-insulated pipes is the verifiable, guaranteed thermal performance. The uniform application of the high-efficiency foam core (PUR) under controlled factory conditions eliminates the variability and risks associated with site-applied lagging, ensuring the system meets the rigorous thermal performance targets required by regulations.

Furthermore, the robust outer casing provides superior protection against the environmental hazards of burial. This rugged jacket safeguards the foam insulation from severe mechanical damage, continuous soil pressure, and prevents water migration to the foam core, ensuring durability and protection.

These systems are also designed for installation speed and ease. Modern, flexible pre-insulated pipes, such such as the Austroflex range available in the UK, feature a combination of a corrugated outer casing and a softer cellular insulation foam. This flexibility allows the pipe to be installed rapidly around obstacles and curves with a minimal bend radius, reducing the need for numerous joints and potential weak points in the line.

6.3. Applications for Specialised Systems

Pre-insulated pipes are essential for high-demand UK applications, including:

Large-scale District Heating Networks for efficient hot water transfer.
Connecting external renewable heat sources, such as ground source and air source heat pumps, or biomass boilers, to domestic or commercial properties.
Centralised chilled water distribution for large buildings.
High-flexibility systems for transport of sanitary heating and hot water, often incorporating single or twin flow and return pipes within the same jacket.
Cold water lines requiring specialised frost protection, sometimes integrating a self-regulating frost protection cable within the jacket for added resilience.

Section VII: Synthesis of Best Practice and Conclusion

7.1. Decision Matrix for Material Selection

The judgement regarding the underground use of foam insulation must weigh the requirement for thermal performance against the risk profile associated with moisture and mechanical failure. For simple, basic frost protection of water services, protected closed-cell foams such as Polyethylene or Nitrile Rubber lagging represent a cost-effective and functionally adequate solution. However, when specifying high-efficiency thermal transfer systems under the scope of Building Regulations Part L, pre-insulated solutions with high-density PUR cores are the mandatory technical pathway.

Table Title: Foam Insulation Materials and Subterranean Suitability

Material Type	Structure	Thermal Conductivity (General)	Suitability for Underground Use	Protection Requirement
Polyethylene (PE) Foam	Closed-cell	Good	High (Common choice for water services)	Mandatory robust mechanical ducting/sleeving
Nitrile Rubber Foam	Superior Closed-cell, Elastomeric	Better than PE	High (Excellent moisture barrier)	Mandatory robust mechanical ducting/sleeving
Polyurethane (PUR) Foam	Closed-cell, Rigid/Flexible	Excellent	High (Only within specialised pre-insulated systems)	Factory-bonded, hermetically sealed outer casing
Phenolic Foam	Closed-cell, Rigid/Brittle	Excellent	Low (Unprotected use is highly risky)	Requires exceptional waterproofing and heavy mechanical protection due to brittleness and moisture sensitivity

7.2. Installation Checklist for Long-Term Integrity

For any foam pipe insulation application placed underground, the following critical installation procedures must be strictly followed to ensure long-term integrity and performance:

Safety First: Confirm all existing underground utilities are switched off or isolated prior to any excavation.
Depth Compliance: Excavate the trench to the minimum required depth, which is 750mm for domestic water services and foul sewers in the UK.
Trench Bedding: Lay a 50mm bed of sharp sand or washed granular material along the base of the trench, and remove all sharp stones or rocks to protect the insulation and pipe surface.
Insulation Application: If site-applied lagging (PE or Nitrile) is used, ensure all joints are sealed securely to prevent water paths.
Protection Casing: Encase the insulated pipe entirely within a protective plastic duct or polyethylene sleeving, maintaining absolute care to avoid tearing the protective layer during installation.
Backfill: Ensure the pipe is completely surrounded by the homogenous backfill material (sand or granular) before final backfilling to prevent chemical and differential corrosion.
Regulatory Verification: Ensure that the specified insulation thickness meets the minimum thermal requirements outlined in BS 5422 to achieve compliance with Building Regulations Part L.

7.3. Concluding Remarks on Specification Judgement

The analysis confirms that the successful, enduring deployment of foam pipe insulation underground relies entirely upon the integrity of its external protection system. For applications where the thermal performance is not critically regulated, a combination of resilient, closed-cell foam lagging (PE or Nitrile Rubber) paired with robust mechanical ducting is a proven method for frost prevention. However, for any UK project requiring verifiable efficiency and low heat loss rates—especially those connecting modern thermal heat sources—the inherent reliability, durability, and guaranteed thermal performance offered by factory-made pre-insulated pipe systems provide the superior and typically compliant solution. Specifiers must always select the system that balances initial cost against the unavoidable risks posed by mechanical pressure and perpetual moisture exposure within the subterranean environment.
