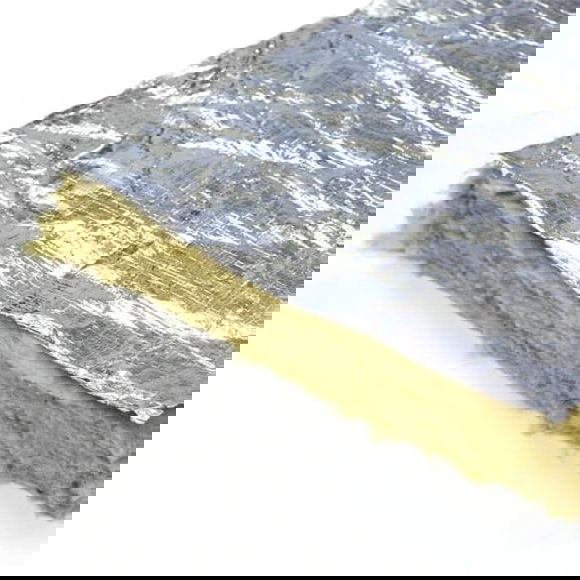

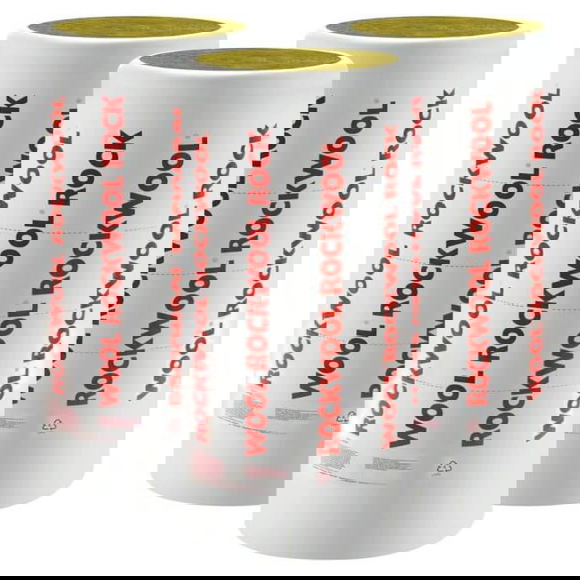

Ductwrap by Rockwool is specially made to prevent heat loss in ducts. They are made of mineral wool and have factory-applied foil-facing on the outer side. They give superior thermal insulation to ducts, cold water storage, feed and expansion tanks. It soundproofs ductwork leading to a quiet and more productive workplace. Ductwrap also gives superior fire resistance and is non-combustible. They have the highest possible fire rating A1 by Euroclass. They can be used to insulate all types of ductwork in the H&V network.

Rockwool Ductwrap is the cheapest duct insulation out there, with no compromise to quality whatsoever. When installed correctly, ductwrap prevents any air leakage from the ducts whilst also restricting the entry of pollutants into the H&V system. They optimise the ducts' performance, which in turn helps make the building more energy-efficient. Foil facings in this ductwrap insulation give continuous protection against moisture. They also help keep problems like condensation and duct sweating to a minimum.

Ducting insulation helps improve indoor air quality. A properly installed ductwrap with appropriate service labels improves workplace safety. Rockwool Ductwrap saves energy and is chemically inert. It is rot-proof and does not support the growth of moulds, fungi etc.

Product Specifications:

Thickness (mm)

Length (mm)

Width (mm)

Rolls per pack

Roll Coverage (sq.m)

25

5000

1000

2

10

40

4000

1000

2

8

50

6000

1000

1

6



Key Features:

  • Ductwrap gives efficient thermal and acoustic insulation to all kinds of ductwork.
  • Rockwool ductwrap has foil-facings for effective protection against moisture.
  • Non-combustible ductwrap insulation has the possible highest fire rating.
  • Rockwool ductwrap is made with sustainable products and has zero ODP and GWP
  • They are light in weight, easy to cut and install.
  • Ductwrap reduces the noise created by high-velocity ducts thus making the workplace more efficient.
  • Duct insulation is chemically inert and does not support fungi or mould growth.

Application:

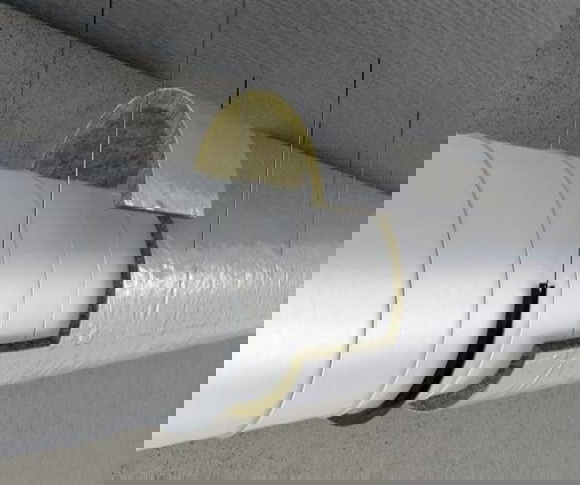

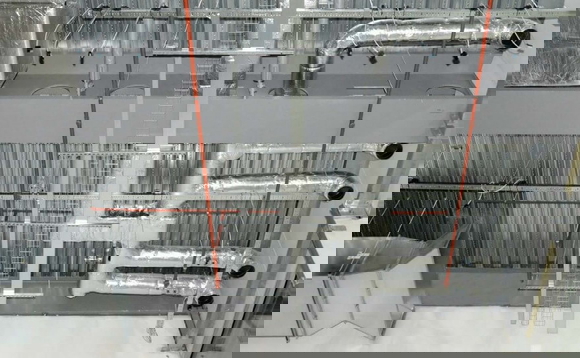

  • Rockwool ductwrap insulates rectangular, oval, square and circular ductwork.
  • Foil-faced insulation is also used to insulate feed, expansion, and cold water storage tanks.
  • Ductwrap has been authorised for use in LUL surface and sub-surface premises (LUL Ref: 315) when installed in accordance with the datasheet.

Fire Performance:

  • The products are classified A1 in accordance with BS EN  13501-1.
  • Rockwool ductwrap fully complies with the definitions of non-combustible in all UK and Ireland Building Regulations.

Sound Insulation:

  • Rockwool ductwrap effectively soundproof high-velocity ducts like those carrying gases, fluids or particle solids.

Durability

  • Mineral wool insulation by Rockwool is long-lasting and durable.
  • They have a proven service life of over 60 years, in a wide range of climates and degrees of exposure.
  • Rockwool ductwrap are designed to last the lifetime of the building, plant, or structure.

Environment:

  • Rockwool Ductwrap is made from a renewable and plentiful naturally occurring resource. It is also 97% recyclable.
  • Ducting insulation saves fuel costs and energy in use and relies on trapped air for its thermal properties. Rockwool insulation does not contain gases that have ozone depletion potential (ODP) or global warming potential (GWP).

Other Details:

  • Material: Rock wool.
  • Service temperature: Up to 230°C
  • Thermal Conductivity: 0.034 W/mK
  • Nominal Density: 45kg/m3.
  • Water Vapour Resistance:  approx 1000MNs/g.
  • Euroclass Fire Classification: A1
  • CE marked (BS EN 14303)
  • You can find more information relating to Rockwool Ductwrap here

Accreditations:

  • CE marked in accordance with BS EN 14303
  • Rockwool ductwrap is authorised for use in LUL surface and sub-surface premises (LUL Ref: 315).
  • Ductwrap by Rockwool can be used to satisfy the requirements of BS 5422 ‘Method for specifying thermal insulating materials'.
