Product Details
| Thickness | Length | Width | Coverage |
| 3mm | 30M | 1M | 30 Sqm |
| 6mm | 30M | 1M | 30 Sqm |
| 9mm | 20M | 1M | 20 Sqm |
| 13mm | 14M | 1M | 14 Sqm |
| 19mm | 10M | 1M | 10 Sqm |
| 25mm | 8M | 1M | 8 Sqm |
| 32mm | 6M | 1M | 6 Sqm |

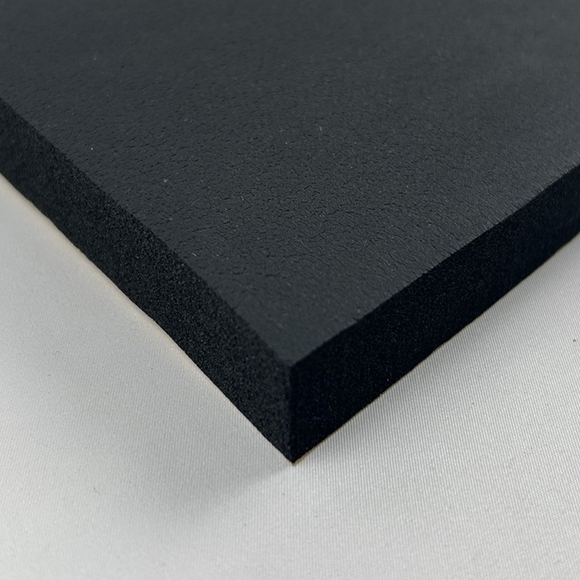

SIDERISE® Lamacell NBR insulation sheet is a black flexible elastomeric rubber material with a smooth outer surface. It has a Euroclass B fire rating and offers enhanced thermal and water resistance. The material is suitable for straightforward installation on curved or irregular surfaces and is typically used in applications such as HVAC, duct, pipe and chilled water system insulation, where consistent thermal performance and energy efficiency are required. Other uses include floor, roof insulation and vehicle insulation (including cars and vans)
This flexible elastomeric foam insulation is suitable for installation on uneven surfaces and can be accurately cut to fit a variety of surface sizes and shapes.
The closed-cell structure of the insulation material helps limit water absorption, reduces moisture ingress, and supports resistance to mould growth under typical conditions of use. A versatile insulation material suitable for a range of applications, including use in HVAC, industrial, construction, vehicle and marine environments.
Key Features
Classified to EN 13501-1 as Euroclass B-s3, d0, indicating 'very little contribution to fire’ with no flaming droplets.Classified to EN 13501-1 as Euroclass B-s3, d0, indicating 'very little contribution to fire’ with no flaming droplets.
Suitable for use across a temperature range of -40°C to +85°C, supporting a variety of application environments.
Offers low thermal conductivity (λ ≤ 0.033 W/(m·K) at 0 °C), supporting effective thermal insulation and energy performance.
Applications :
Heating, Ventilation, and Air Conditioning (HVAC):
-
Ductwork Insulation: Effectively insulates air distribution ducts to prevent energy loss and control condensation, improving overall system efficiency.
-
Chilled Water Piping: Provides excellent insulation for chilled water lines and refrigeration piping, preventing heat gain and condensation.
Plumbing and Refrigeration:
-
Hot and Cold Water Pipes: Reduces heat loss from hot water pipes and prevents freezing of cold water pipes.
-
Commercial Refrigeration Systems: Insulates refrigerant lines in supermarkets, cold storage facilities, and food processing plants.
Industrial and Process Industries:
-
Process Pipework and Vessels: Insulates large-diameter pipes, tanks, and vessels in chemical, pharmaceutical, and manufacturing plants to maintain process temperatures and protect personnel.
-
Oil and Gas Sector: Offers reliable insulation for pipelines and equipment where resistance to oil and chemicals is crucial.
Construction and Building:
-
Underdeck Insulation: Can be applied to the underside of roofs to reduce heat ingress.
-
Wall and Floor Insulation: Provides an effective thermal and acoustic barrier.
Installating Nitrile Rubber Insulation Sheet
- The material is normally adhered to the background surface using a separate adhesive. The product is also available in seldf- ashesive verison, please contact us
- Additionally, the product can be mechanically fixed using large headed fixings or spreader washers. Sideride insulaton support pins, and non-return washers are suitable fixings.
-
Siderise Lamacell is a butyl nitrile rubber insualtion sheet used for Industrial pipe insulation, duct insulation and Commercial HVAC insulation
-
It is a black flexible elastomeric rubber material with a smooth outer surface
-
This nitrile rubber insulation has a Euroclass B fire rating and offers enhanced thermal and water resistance
-
It enables straightforward installation on curved or irregular surfaces
| Product Type | Nitrile Rubber Sheet |
| Brand | Siderise |
| Length | 30M - 6M |
| Width | 1M |
| Thickness Available | 3mm to 32mm |
| Reaction to Fire | B-s3,d0 |
| Water Vapour Permeability | ≥10,000µ |
| Service Temperature | -40°C to +85°C |
| Order Quanitity | Delivery Charges (Excluding VAT) |
|---|---|
| 1 - 2 | £25 |
| 3 - 4 | £60 |
| 5 - 9 | £100 |
| 10 - 15 | £180 |
Returns/Refunds And Cancellations:
- You can cancel your order and get a full refund anytime before we confirm your order via email. Once shipped, orders cannot be cancelled
- We accept returns of unused goods or goods ordered in excess within 14 days of receipt of delivery. Please get in touch with us on email or call us to discuss returns. Products are to be returned to the address we share on email. Buyer pays postage. Returns may attract restocking fee (25%)
- Damaged Product - If the product you have received is damaged, please get in touch with us within 48 Hrs of order receipt.
