Understanding Vapour Control Layers (VCL) in UK Construction and Where To Buy

Moisture management is a critical aspect of building design and construction, particularly in a climate like that of the United Kingdom. The effective control of water vapour within a building's fabric is essential for ensuring its longevity, the health of its occupants, and its overall energy efficiency. A key component in achieving this control is the vapour control layer (VCL).

This article provides a comprehensive guide to vapour control layers in UK construction, exploring their definition, the materials from which they are made, best practices for their installation, the relevant standards and regulations in the UK, how to select the most appropriate VCL for a given project, common mistakes to avoid during installation, and where to find authoritative guidance on this important topic.

TLDR: Vapour control layers (VCLs) are essential in UK buildings to manage moisture, preventing interstitial condensation, damp, and mould growth, which can lead to structural damage and health issues. Installed on the warm side of insulation in walls, roofs, and floors, VCLs also improve energy efficiency by keeping insulation dry and promoting airtighness. Compliance with UK standards like BS 5250 and Approved Documents C and L is crucial, and proper sealing during installation is vital for their effectiveness.

What is a Vapour Control Layer?

A vapour control layer (VCL) is a crucial element of a building's thermal envelope, typically consisting of a thin, flexible membrane or a specific material integrated into the structure. Its primary function is to manage and significantly reduce the movement of water vapour from the warmer, more humid interior of a building into the potentially colder elements of the building structure.

The fundamental purpose of a VCL is to prevent interstitial condensation. This phenomenon occurs when warm, moisture-laden air from inside a property travels through the building materials and encounters a surface that is at or below its dew point temperature, causing the water vapour to condense into liquid water within the building's fabric, for example, within the insulation, timber framing, or sheathing.

It is important to note that VCLs are designed to control, rather than completely eliminate, the movement of vapour. This controlled permeability is often more advantageous in the UK climate compared to a completely impermeable barrier. The UK's climate is characterized by fluctuating temperatures and consistently high humidity.

Daily activities within buildings generate substantial water vapour, which naturally moves from warmer, more concentrated areas indoors to cooler areas, potentially within the building's walls or roof. If this vapour cools sufficiently, it will condense.

A VCL, strategically positioned on the warm side of the building structure, aims to restrict the amount of vapour that can reach these colder zones, thereby preventing harmful condensation. VCLs are also commonly referred to as Air and Vapour Control Layers (AVCLs) because they typically restrict both moisture and air movement, often serving as the primary airtightness layer in many constructions.

While the terms "vapour control layer" (VCL) and "vapour barrier" are often used interchangeably, there is a technical distinction. VCLs are designed to slow down and manage the flow of moisture through the building fabric, allowing for a degree of drying potential. In contrast, vapour barriers are intended to completely block the passage of water vapour.

However, achieving a perfect barrier with readily available materials is practically challenging. As such, "vapour control layer" is the more accurate and commonly used term in contemporary UK construction. This distinction is crucial for understanding the functionality and appropriate application of these materials.

Modern building science in the UK often favours VCLs over absolute barriers to permit some moisture movement and prevent the trapping of moisture within the building structure. A completely impermeable vapour barrier, while seemingly ideal for preventing moisture entry, can also trap moisture that infiltrates the building fabric from other sources, such as during construction or through minor leaks.

A VCL, with its controlled permeability, allows the structure to "breathe" to some extent, facilitating the drying out of any trapped moisture and reducing the long-term risk of damage.

The Importance of Vapour Control Layers in the UK Climate

In the UK's climate, which is marked by frequent rainfall and moderate temperatures, leading to high humidity both inside and outside buildings, the role of vapour control layers is particularly significant.

One of the primary benefits of VCLs is their effectiveness in preventing dampness and mould growth. Uncontrolled interstitial condensation can lead to a buildup of moisture within the building's structure, creating a persistently damp environment. This dampness provides ideal conditions for the growth of mould and mildew.

Mould not only damages building materials, causing decay and weakening the structure, but also releases spores into the indoor air, which can severely compromise indoor air quality and pose significant health risks to occupants, including allergies, respiratory problems, and other adverse health effects.

The UK's climate, with its propensity for humidity and temperature fluctuations, makes buildings particularly vulnerable to condensation issues. Without a VCL, the risk of creating damp, mouldy environments – detrimental to both the building and its inhabitants – is substantially increased.

Vapour control layers also play a crucial role in enhancing energy efficiency and reducing heating costs. When moisture accumulates within insulation materials, it displaces the air pockets that provide the insulation's thermal resistance. This significantly reduces the insulation's ability to prevent heat transfer, leading to increased heat loss during colder months.

VCLs help maintain the dryness of insulation by limiting the amount of moisture vapour that can reach and condense within it. By ensuring the insulation remains dry, VCLs enable it to perform at its designed thermal efficiency, thereby reducing the demand on heating and cooling systems and lowering energy consumption and associated costs.

Furthermore, a properly installed and continuous VCL contributes to the overall airtightness of the building envelope. By controlling the movement of moisture-laden air, it indirectly reduces uncontrolled warm or cool air leakage (depending on whether heating or cooling is preferred), further minimizing energy losses through draughts and improving the building's thermal performance.

In an era of rising energy prices and a growing emphasis on sustainable building practices, the role of VCLs in maximizing insulation performance and contributing to airtightness is paramount.

Maintaining the structural integrity of a building is another significant benefit of using vapour control layers. Prolonged exposure to elevated moisture levels from uncontrolled condensation can cause substantial deterioration of structural building materials. In timber-framed buildings, this can lead to wood rot, decay, and weakening of the frame. In buildings with metal components, moisture can cause corrosion, potentially compromising structural stability over time.

VCLs play a crucial preventative role by limiting the amount of moisture that can reach these vulnerable structural elements, thus safeguarding the building's long-term stability and durability. Preventing structural damage through effective moisture management with VCLs can lead to significant long-term cost savings by avoiding expensive repairs or replacements in the future.

Finally, by preventing the growth of mould and mildew, VCLs contribute to improving indoor air quality.  Mould spores released into the air can be detrimental to health, and by controlling the moisture levels that allow mould to thrive, VCLs help create a healthier indoor environment. While not their primary function, this positive impact on indoor air quality is a valuable co-benefit of effective vapour control.

Common Materials Used for Vapour Control Layers in the UK

A variety of materials are used as vapour control layers in the UK, each with its own properties and applications:

Polyethylene Films: Standard 500 gauge (120 micron) polyethylene sheet is the most common VCL material in UK construction. These sheets provide a cost-effective solution with good vapour resistance properties. Available in various gauges (thicknesses), typically ranging from 300 to 1200 gauge (approximately 75 to 300 microns), thicker films generally offer greater tear resistance and higher vapour resistance. The Building Regulations typically require a minimum thickness of 125 micron (500 gauge) for polyethylene VCLs. The vapour resistance is often measured in MNs/g, with common values ranging from >20 MNs/g to >100 MNs/g.

Polyethylene films are commonly used in walls (on the warm side of insulation in stud walls), roofs (beneath loft insulation or in warm roof constructions), and floors (above insulation in concrete floors). A minimum thickness of 125 microns (500 gauge) is often recommended for general use in the UK. Their cost-effectiveness and ease of installation make them a popular choice for a wide range of building types. For applications requiring greater tear resistance, reinforced polyethylene membranes offer enhanced durability while maintaining effective vapour control properties.

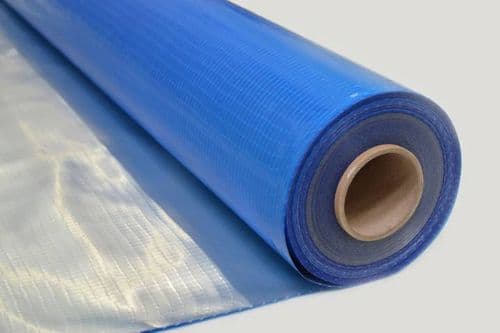

Aluminium Foils: These offer exceptionally high vapour resistance (Sd values often >100 metres) and possess a low emissivity surface that reflects radiant heat, improving thermal performance. They are used in flat roofs (warm roof constructions), high-humidity environments (swimming pools), and as part of reflective insulation systems. Meticulous installation is crucial to avoid tears, and all laps and penetrations must be sealed with specialized aluminium foil tapes. Aluminium foil-faced VCLs provide superior vapour resistance and are often used in high-humidity environments or where exceptionally high performance is required. These can significantly reduce vapour transmission compared to standard polyethylene.

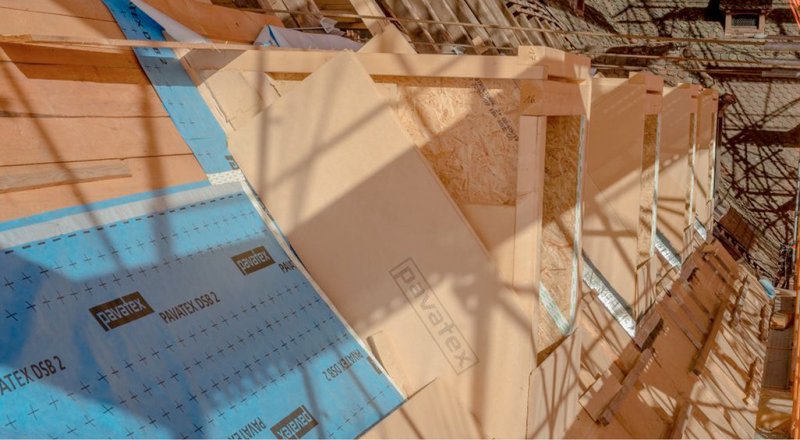

Specialised Membranes: This category includes a wide array of products designed for specific needs. Reinforced polyethylene membranes offer enhanced tear resistance. Variable permeability ("intelligent") membranes adapt their vapour resistance based on humidity levels, allowing structures to dry out. Fire-retardant membranes are available for specific regulatory requirements. These advanced membranes offer variable vapour resistance, adapting to environmental conditions throughout the year to allow drying in both directions when needed while restricting vapour flow during high-risk periods. They're particularly useful in renovation projects or where there's risk of moisture entering from multiple directions.

Foil-Backed Plasterboard: This consists of standard plasterboard with a thin layer of aluminium or metallized polyester foil on the back. It acts as a vapour check to limit moisture diffusion in walls and ceilings. However, achieving a continuous and sealed VCL with foil-backed plasterboard alone is challenging due to the difficulty of sealing joints and penetrations. It is primarily suitable for mechanical fixing. Specially manufactured plasterboard with a metallised polyester film bonded to the back face offers a combined solution that integrates the vapour control layer with the internal finish. This can simplify construction while ensuring the VCL is correctly positioned.

Best Practices for Installing Vapour Control Layers in UK Buildings

Effective installation is crucial for a vapour control layer to perform as intended:

The area where the VCL will be installed must be properly prepared by ensuring it is clean, dry, and free from any dust or debris. Accurate measurement of the area is essential, and the VCL material should be cut to size, allowing for sufficient overlaps, typically at least 100-150mm, at all edges and joints.

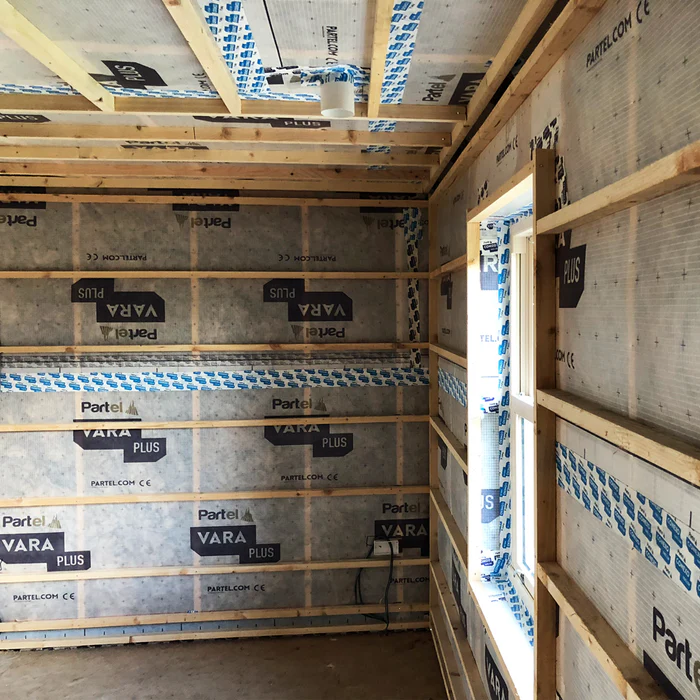

Ensuring the continuity of the VCL is paramount. This involves correctly overlapping adjacent sheets of the material, both horizontally and vertically. All overlaps must be meticulously sealed using appropriate vapour-resistant tapes such as single-sided foil tape, double-sided butyl tape, or specialized VCL tapes recommended by the manufacturer. For air and vapour control layer installations, use a minimum 30mm width specialist tape at all joints.

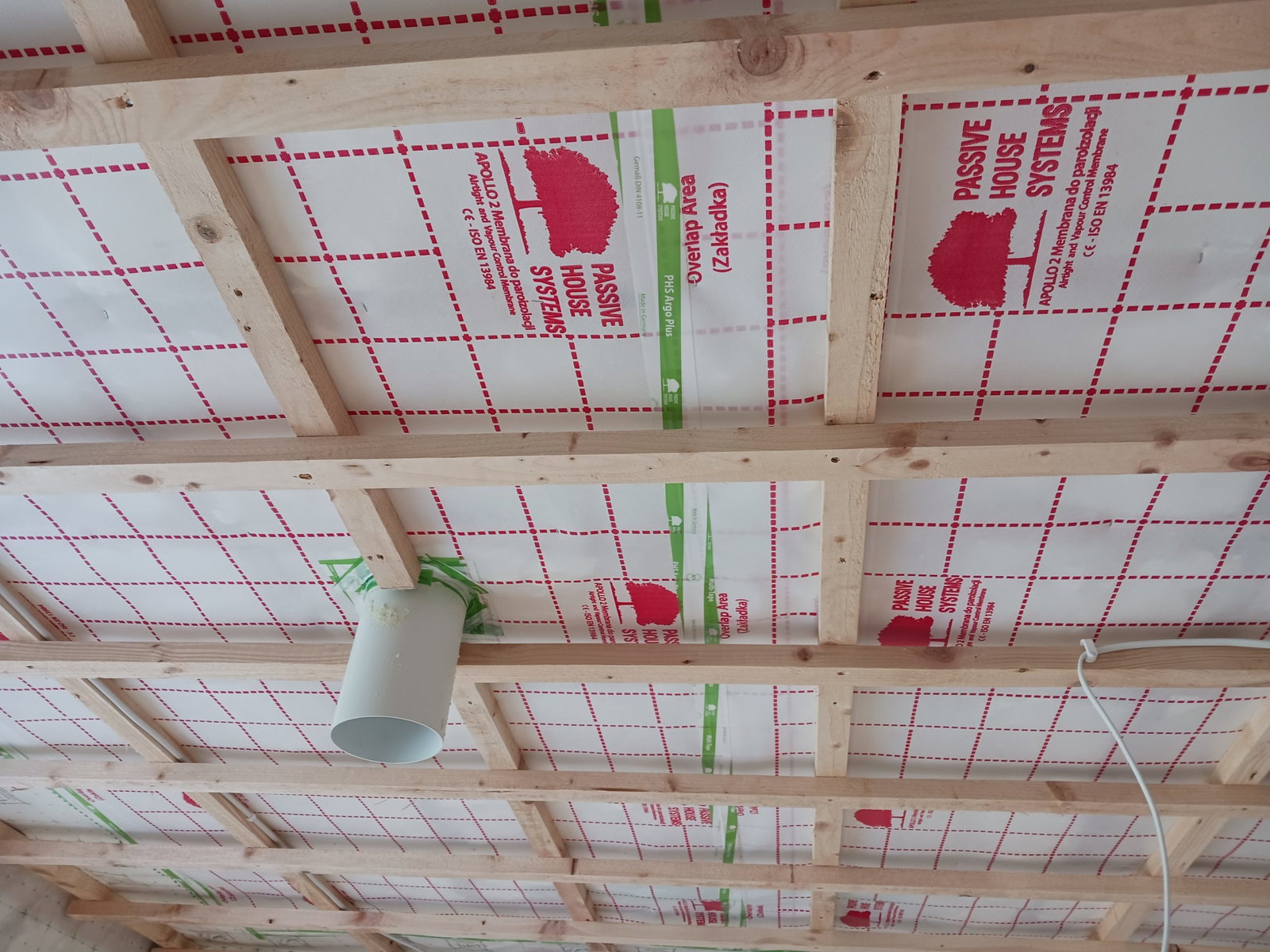

A minimum lap distance of 100mm is often recommended for joints over solid backing, while 150mm is advisable for general overlaps. Apply firm, consistent pressure along the entire length of the tape to ensure a good bond.

Proper sealing of any penetrations through the VCL for services like pipes, cables, and light fittings is critical. Specialized penetration sealing tapes, grommets, or sealants should be used to maintain airtightness and vapour resistance. Creating service voids (battened spaces) to run services without puncturing the main VCL layer is a highly recommended practice.

The VCL must also be properly lapped and sealed at junctions with walls, floors, and roofs to ensure a continuous barrier. Ensure the VCL is lapped with the DPC to maintain continuity. Integration with damp-proof courses (DPCs) should also be considered where appropriate. Seal the VCL to adjacent airtight components such as windows and doors. Ensure that all penetrations for services are properly sealed.

It is important to remember that a VCL often serves as the primary airtightness layer in a building. Achieving a high level of airtightness is crucial for preventing moisture ingress and maximizing energy efficiency by reducing draughts and uncontrolled air movement. Fix VCLs at 250mm centres to the top and bottom of the frame, at laps and around openings.

For mechanically fixed systems, the vapour control layer should consist of suitable polyethylene sheet sealed at all laps. Make good where damage has occurred during construction. Take special care around services and penetrations, which present particular risks to the integrity of the VCL. Ensure the VCL is protected during subsequent construction activities.
