Breathe Easier: The Ultimate UK Guide to Reducing Dust with Loft Insulation


                                TLDR
The relentless cycle of dusting is a familiar frustration in many UK homes. No sooner have you wiped every surface clean than a fresh layer of fine particles begins to settle. While daily life certainly contributes, what if the primary source of this persistent dust isn't your activity, but the very structure above your head? For countless homeowners, the loft is an often-overlooked reservoir and entry point for dust, allergens, and outdoor pollutants. A dusty, poorly sealed loft is a direct contributor to a dusty home.
This guide presents a definitive solution. A properly air-sealed and insulated loft is one of the most effective, long-term strategies for dramatically improving indoor air quality. This is not merely about retaining warmth in winter; it is about creating a fundamentally healthier living environment. This report provides an exhaustive 8-point action plan, covering everything from the science behind dust infiltration to the specific UK materials, best practices, and building regulations you need to know to tackle the problem effectively and safely.
The Hidden Connection: Why Your Loft is Making Your Home Dusty![]()
To solve the problem of household dust, it is essential to first understand that its presence is not a passive issue of particles simply settling downwards. Instead, it is often an active process, driven by the physics of air movement within the home. Your house can, in effect, inhale dust directly from the loft.
The Science of Air Movement
The primary mechanism driving this infiltration is known as the "stack effect." Warm air generated in the living areas of a house is buoyant and naturally rises. As this air escapes through the upper levels of the home, it creates a slight negative pressure in the lower levels. This pressure difference acts like a gentle vacuum, actively pulling colder, denser air in from outside to replace the escaping warm air. In a home with a poorly sealed ceiling, the loft becomes a major source for this replacement air, drawing down dust-laden air through any available gap.
This natural process is often exacerbated by modern living. Closing internal doors can create pressure imbalances between rooms, while the use of kitchen or bathroom extractor fans significantly strengthens the negative pressure, increasing the rate at which air is pulled down from the loft. The result is that your loft, which should be isolated from your living space, effectively becomes a giant, leaky vacuum bag that continuously empties its contents into your home.
Identifying the Sources of Loft Dust
The dust found in a typical loft is a complex mixture originating from multiple sources:
-
	External Pollutants: The most significant source is often the outside world. Dust, soil particles, pollen, and airborne pollutants from traffic and industry enter the loft space through gaps in the roof structure, uncovered eaves, and roof vents. Over time, this can accumulate into a thick layer on top of existing insulation, serving as a vast reservoir of contaminants ready to be drawn into the home. Inspections of dusty lofts often reveal that the top layer of insulation is dark and discoloured from this external debris.
-
	Degrading Building Materials: Over decades, the materials that form the loft space can begin to break down. Old roofing felt can become brittle and shed fibres, ageing timber rafters can release wood dust, and crumbling mortar or brickwork from chimney stacks can generate a significant amount of fine particulate matter.
-
	Old or Disturbed Insulation: Traditional fibrous insulation materials, such as older types of fibreglass, can degrade over time. The fibres can become brittle, breaking into microscopic particles that easily become airborne. Any disturbance in the loft, whether from accessing stored items or air movement, can release these fibres into the atmosphere, from where they can be pulled into the living space below.
Mapping the Pathways
This dust-laden air does not seep through solid plasterboard. It follows specific, identifiable pathways—small gaps and cracks that collectively amount to a significant breach in the barrier between your loft and your home. The most common entry points include:
-
	Service Penetrations: Gaps left around pipes and electrical cables where they pass through the ceiling are a primary route for air and dust infiltration.
-
	Light Fittings: Recessed spotlights (downlighters) and the housings for ceiling-mounted light fixtures are notoriously leaky. Without proper sealing, they provide a direct conduit from the loft into the room below.
-
	The Loft Hatch: An unsealed loft hatch is one of the single largest sources of air leakage. Gaps around its perimeter can act as a superhighway for dust and draughts.
-
	Wall and Ceiling Junctions: The join between the top of internal partition walls and the ceiling plasterboard is often imperfectly sealed, creating a long, linear gap through which air can be drawn from the loft.
Understanding these mechanisms is crucial. It reframes the problem from one of cleaning to one of engineering. The solution lies not in more frequent dusting, but in systematically sealing these pathways to permanently separate the air in your loft from the air you breathe.
The 8-Point Action Plan for a Dust-Free Home
This action plan provides a comprehensive, step-by-step approach to transforming your loft from a dust source into a clean, effective thermal barrier. Following these tips in order will deliver the best results for improving your home's air quality
Tip 1: Master the Air Seal: Your Most Powerful Weapon Against Dust
Before a single roll of insulation is laid, the priority must be to create a complete and continuous air barrier at the ceiling level. Insulation, particularly the common fibrous types, works by trapping air, but it does not stop air from moving through it. Without a proper air seal, the stack effect will continue to pull dusty air through the insulation and into your home. Therefore, the guiding philosophy must be: seal first, insulate second.
A systematic approach to finding and sealing leaks is essential. The most effective way to identify these gaps is to look for the tell-tale signs of air movement: dark, dirty patches on or around existing insulation, which indicate where dusty air has been filtered over many years. A thorough inspection should focus on the following key areas:
-
	Penetrations: Carefully inspect every point where a pipe (water or waste), electrical cable, or ventilation duct passes through the ceiling from the room below.
-
	Fixtures: Check around the entire perimeter of recessed downlighter housings and the electrical boxes for ceiling lights and extractor fans.
-
	Structural Gaps: Pay close attention to the tops of all internal walls where they meet the loft floor. These "top plates" are often a major source of leakage.
To effectively seal these gaps, it is vital to use the correct material for the size of the opening:
-
	For small gaps (up to 6mm): Use a flexible, durable sealant such as acoustic or silicone caulk, applied with a caulking gun to create a continuous bead.
-
	For larger gaps (6mm to 75mm): Expanding polyurethane foam spray is ideal. It expands to fill irregular shapes, creating an excellent airtight seal. Use a low-expansion formula to avoid damaging surrounding structures.
-
	For very large openings: Gaps such as those found in dropped soffits over kitchens or bathrooms should be covered first. Cut a piece of rigid foam insulation board or plywood to size, fit it into the opening, and then seal the perimeter with expanding foam or caulk.
-
	Around Hot Flues and Chimneys: This is a critical safety issue. Never use standard sealant or expanding foam near a metal flue pipe or masonry chimney, as they are not designed to withstand high temperatures and can create a serious fire risk. These areas must be sealed using specialist high-temperature-resistant caulk in combination with custom-cut pieces of metal flashing.
Tip 2: Fortify the Gateway: Insulate and Draught-Proof Your Loft Hatch ![]()
The loft hatch is frequently the weakest link in the ceiling's thermal and air barrier. An uninsulated, unsealed hatch acts like an open chimney, funnelling vast amounts of warm air into the cold loft and allowing dust and cold draughts to enter the living space below. Properly sealing and insulating the hatch is a small job with a disproportionately large impact; it can improve the thermal efficiency of a ceiling by as much as 20%.
The process involves three simple but essential steps:
-
	Apply a Draught Seal: The first priority is to create an airtight seal. This is best achieved by applying a continuous strip of self-adhesive EPDM rubber draught-excluding tape to the top edge of the loft frame, where the hatch door rests when closed. This compresses to form a tight seal, stopping air movement.
-
	Insulate the Hatch Door: Next, address heat loss through the door itself. Cut a piece of rigid foam insulation board (such as Celotex, Kingspan, or an equivalent PIR board) to the exact dimensions of the loft hatch. A thickness of 50mm to 100mm is ideal. Secure this board firmly to the top (loft side) of the hatch door using a strong adhesive or screws.
-
	Ensure a Tight Compression: Many simple, drop-in loft hatches are very lightweight and may not sit heavily enough to fully compress the draught seal. To guarantee an effective seal, install two simple hook-and-eye latches on opposite sides of the hatch. These allow you to pull the hatch down tightly against the seal, ensuring it remains airtight.
Tip 3: Choose Your Material Wisely: Selecting Insulation That Blocks Dust
While all insulation is designed to resist heat flow, different materials have vastly different properties when it comes to resisting airflow and, by extension, dust.
-
	Air-Permeable Insulation: The most common DIY insulation materials, such as mineral wool, glass wool, and sheep's wool, are fibrous. Their insulating power comes from the millions of tiny air pockets trapped within their structure. However, this structure also means that air can pass through them. If the air barrier at the ceiling level (from Tip 1) is imperfect, dusty air can still be pulled through the body of the insulation.
-
	Air-Impermeable Insulation: Materials like professionally installed spray polyurethane foam and carefully fitted rigid foam boards act as both an insulator and an air barrier. When applied correctly, spray foam expands to fill every crack and crevice, creating a single, monolithic seal that is completely airtight. This makes it the most effective possible solution for dust control, as it eliminates the pathways for air movement at the same time as providing thermal resistance.
For the majority of UK homeowners undertaking a DIY project, the most practical and cost-effective approach is to combine a meticulous air-sealing job (Tip 1) with a deep layer of fibrous blanket insulation (Tip 4). For those seeking the absolute best performance in dust mitigation and are willing to invest in professional installation, spray foam insulation is the gold standard.

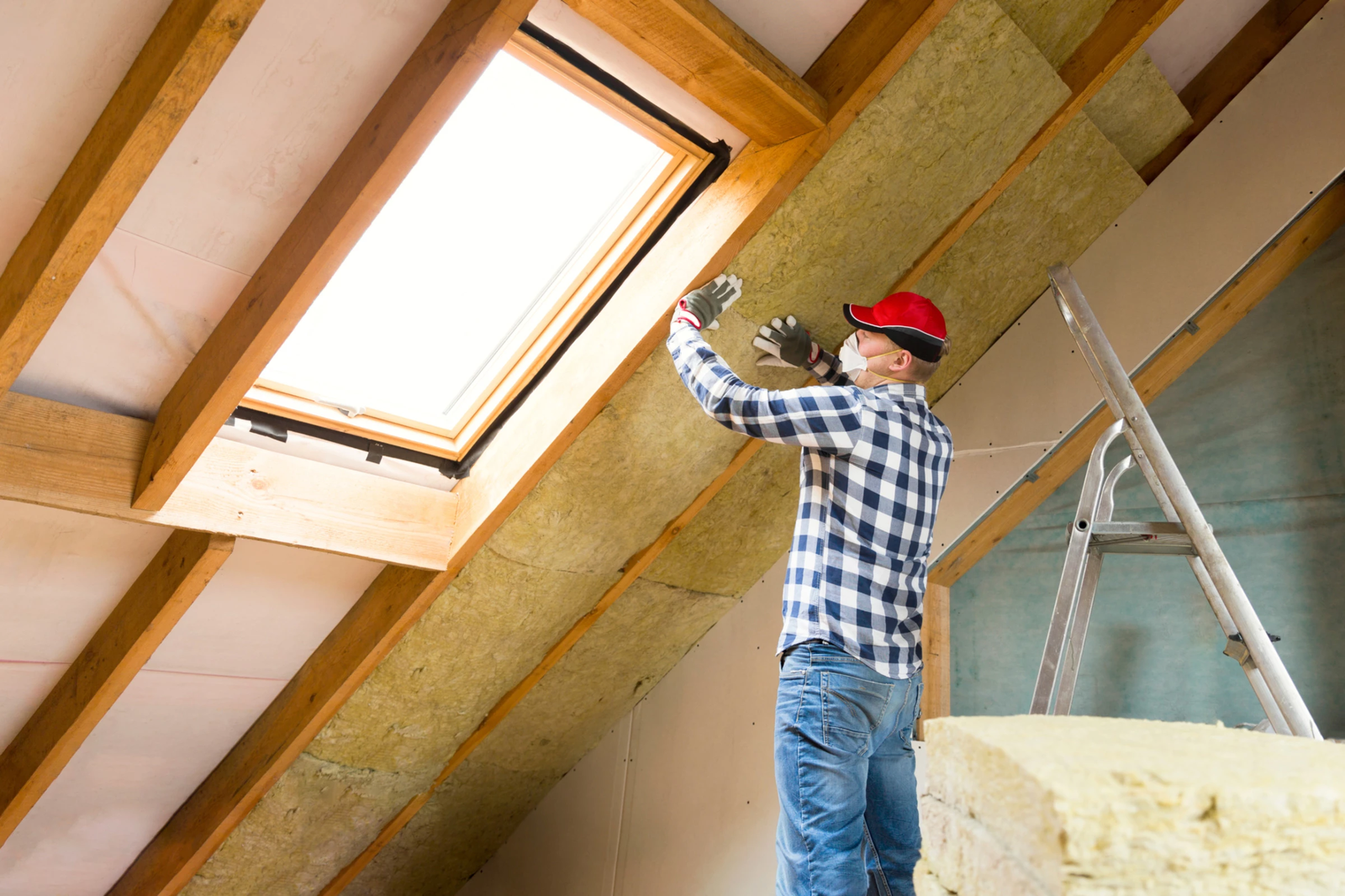

Tip 4: Go Deep: Installing Insulation to the Correct UK Standard
To be effective, loft insulation must be installed to a sufficient depth. UK building regulations recommend a minimum depth of 270mm for mineral or glass wool insulation. Many homes built before the early 2000s may have as little as 100mm or 120mm, which is insufficient for modern thermal standards and does not create a substantial physical barrier against dust.
Achieving the recommended depth correctly involves a crucial two-layer method:
-
	First Layer (Between Joists): The initial layer of insulation, typically 100mm thick, is unrolled and laid between the ceiling joists. It should fill the full depth of the joist, coming up level with the top edge.
-
	Second Layer (Across Joists): The second, thicker layer (usually 170mm or 200mm) is then laid at a right angle to the first layer, running directly over the top of the joists.
This cross-layering technique is critically important for two reasons. Firstly, it addresses the issue of "thermal bridging." The timber joists themselves are relatively poor insulators compared to the insulation material. Laying the first layer only between them leaves dozens of "cold bridges" where heat can escape more easily. The second, perpendicular layer completely covers these joists, creating a continuous, unbroken thermal blanket. Secondly, this unbroken blanket forms a much more formidable and consistent physical barrier, further suppressing the movement of any residual dust.
Tip 5: Breathe Easy: Guaranteeing Ventilation to Prevent Condensation
There is a crucial distinction between sealing unwanted air leaks from the warm house into the loft and maintaining essential ventilation of the loft space with outside air. While sealing the ceiling is paramount, it is equally vital to ensure that air can still flow freely through the loft from the outside. This airflow is necessary to carry away moisture that naturally migrates into the loft as water vapour, preventing it from condensing on cold surfaces, which can lead to damp, rot, and mould growth.
The most important practice is to maintain a clear air gap at the eaves (the lowest point of the roof):
-
	When laying insulation, ensure it is not pushed tightly into the corners where the roof meets the floor. A clear, continuous air gap of at least 50mm must be maintained between the top of the insulation and the underside of the roofing felt or membrane.
-
	To guarantee this gap is not accidentally blocked over time, it is best practice to install proprietary eaves vents or rafter trays. These plastic or cardboard trays are fitted between the rafters at the eaves, creating a permanent, uncrushable channel that ensures air can always flow from the soffit vents into the main loft space.
Tip 6: Handle Hazards Safely: Insulating Around Pipes and Electrics
Insulating the loft floor fundamentally changes the environment within the loft space. By preventing heat from rising from the house, the loft becomes significantly colder in winter. This creates two major safety hazards that must be addressed.
-
	Pipes: The Freezing Risk: A newly insulated loft will be much colder, dramatically increasing the risk of water pipes and cold-water storage tanks freezing and bursting during cold weather, which can cause catastrophic water damage. It is therefore essential that all water pipes, both hot and cold, are insulated separately using dedicated foam pipe lagging. Cold water tanks must also be fitted with a purpose-made insulation jacket. It is a common and dangerous mistake to simply lay loft insulation over the top of pipes; they require their own specific protection.
-
	Electrics: The Fire Risk: Electrical cables generate heat when in use. Loft insulation is designed to trap heat, which means that covering certain types of cables can cause them to overheat, degrading the PVC sheath and creating a serious fire hazard. -
		High-Load Cables: Cables that carry a heavy electrical load, such as those for electric showers, immersion heaters, or cookers, must not be covered by insulation. An electrician should be consulted to ensure these cables are long enough to be lifted and re-laid on top of the final 270mm layer of insulation, where they can dissipate heat safely into the air. Standard lighting and socket circuits are generally lower load and can usually be safely covered, but if in any doubt, consult a qualified electrician.
-
		Recessed Downlighters: These fittings generate significant heat. They must never be covered with insulation unless they are specifically certified as safe for this purpose (look for an "IC" or Insulation Contact rating). For all other downlighters, a fire-retardant downlight cover (also known as a loft cap or hood) must be installed over the fitting first. This creates a protective air gap around the light, allowing heat to dissipate safely before the insulation is laid around the outside of the cover.

-

Tip 7: Create the Ultimate Barrier: Lining the Roof Rafters
For those seeking the highest level of dust control, an additional and highly effective step is to line the underside of the roof itself. This technique stops external dust from entering the loft space in the first place, creating an exceptionally clean environment.
There are several material options for this approach:
-
	Breathable Membrane: This is a lightweight, fabric-like material that is stapled across the inner face of the roof rafters. It is highly effective at blocking dust and any driven rain or snow that might penetrate the roof tiles, while its breathable nature allows water vapour from inside the loft to pass through and escape, preventing condensation.
-

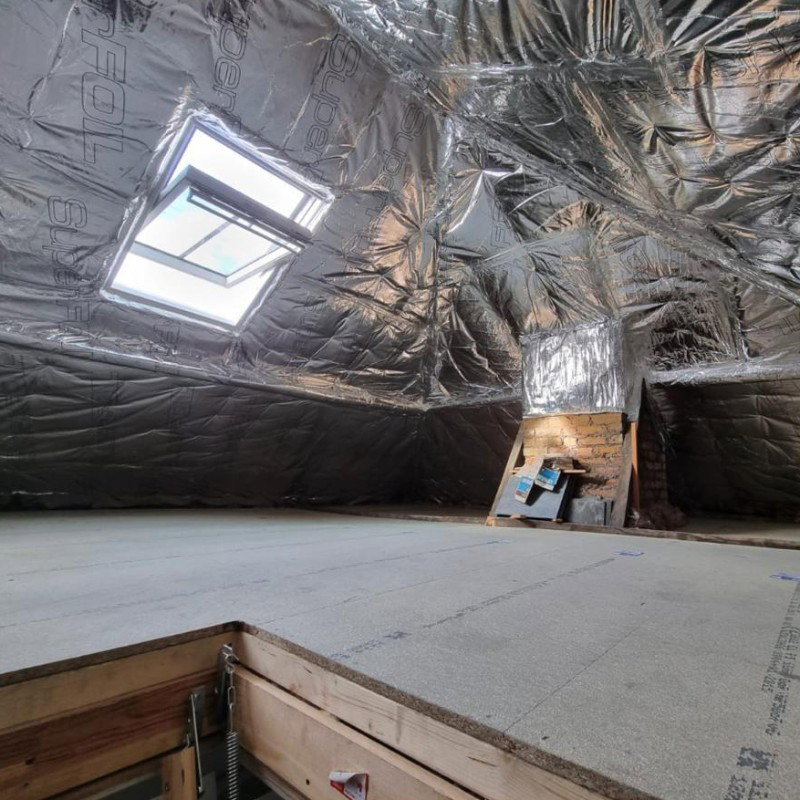

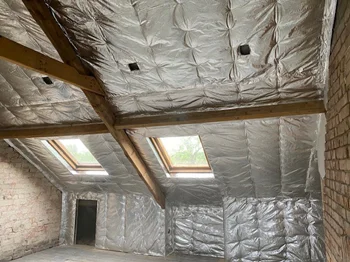

	Foil Insulation: Multi-layer foil insulation products (also known as radiant barriers) can also be fixed to the rafters. In addition to blocking dust, they provide an extra thermal benefit by reflecting radiant heat. This helps to keep the loft space cooler in summer and slightly warmer in winter.
-
	Plywood Lining: For the ultimate clean finish, for example if the loft is to be used for storing sensitive items or as a hobby space, the roof can first be lined with foil insulation and then over-boarded with plywood sheets. This creates a robust, durable, and smooth surface that can be painted, resulting in a completely sealed and dust-free room.
Tip 8: Store Smarter: Adopting Dust-Conscious Loft Storage
How items are stored in the loft can significantly impact the overall dust level. Cardboard boxes degrade over time, creating their own dust, and their open tops allow them to become collectors for any airborne particles.
To maintain a low-dust environment, adopt these storage best practices:
-
	Use airtight, lidded plastic storage containers. These protect the contents from dust and prevent them from becoming dust sources themselves.
-
	If you need to board a section of the loft for storage, it is crucial that the insulation underneath is not compressed. Boarding directly onto 100mm joists after adding the second 170mm layer of insulation will squash it, severely reducing its thermal performance. The correct method is to install a raised floor using a system of proprietary stilts, such as Loft Legs. These are fixed to the joists and raise the new boarded floor well above the full 270mm insulation depth, preserving its effectiveness.
A Homeowner's Guide to UK Loft Insulation Materials![]()
Choosing the right insulation material is a key decision that affects the project's cost, thermal performance, and suitability for DIY installation. The UK market offers a wide range of options, each with distinct characteristics.
-
	Mineral Wool (Glass Wool & Rock Wool): This is the most common and cost-effective type of loft insulation in the UK, supplied in rolls. It offers excellent thermal performance, good acoustic dampening, and is non-combustible, providing high levels of fire resistance. It is well-suited for DIY installation, though personal protective equipment (PPE), including a mask, gloves, and goggles, is essential as the fibres can irritate the skin and respiratory system.
-
	Sheep's Wool: A natural and sustainable alternative, sheep's wool insulation is prized for its environmental credentials and user-friendly nature. It is soft to handle, non-irritant, and has excellent hygroscopic properties, meaning it can absorb and release moisture, helping to regulate humidity and protect timbers. Its main drawbacks are a higher purchase price and a slightly lower thermal performance per inch compared to mineral wool.
-
	Rigid PIR Boards (e.g., Celotex, Kingspan): Polyisocyanurate (PIR) foam boards offer superior thermal performance for their thickness. This makes them the ideal choice for insulating the rafters in a "warm loft" conversion, where preserving headroom is critical. They can also be used on the loft floor. However, they are more expensive, and installation requires precise cutting and sealing between boards to prevent thermal bridging.
-
	Loose-fill & Blown-in Cellulose: Composed of granulated materials like recycled newspaper or mineral wool pellets, loose-fill insulation is perfect for topping up existing insulation or for insulating lofts with irregular joist spacing or difficult access. It is typically installed professionally using specialist blowing equipment to ensure it fills every void for complete coverage.
-
	Multi-Foil Insulation: These consist of multiple layers of reflective foil and wadding. They work primarily by reflecting radiant heat and are most effective when installed with a clear air gap on either side. In the UK, they are best used as a supplementary layer, often on the underside of rafters, rather than as the sole insulation solution on the loft floor.
-
	Spray Foam (Polyurethane): This is a premium, professionally installed option that provides both exceptional insulation and a perfect air barrier in a single application. It is sprayed as a liquid and expands to fill every gap, creating a seamless, airtight seal that is highly effective for dust control. It is, however, the most expensive option and not a DIY product.
Buy Loft Insulation
Table 1: Comparison of Common UK Loft Insulation Materials
| Material Type | Key Properties | Pros | Cons | DIY Suitability |
| Mineral Wool | Thermal, Acoustic, Fire Resistant (A1) | Cost-effective, widely available, excellent all-round performance. | Can cause skin irritation (requires PPE), loses performance if compressed or wet. | Excellent |
| Sheep's Wool | Thermal, Acoustic, Breathable | Eco-friendly, non-irritant, handles moisture well. | More expensive, lower thermal value per thickness than mineral wool. | Excellent |
| Rigid PIR Board | Excellent Thermal Performance | High insulation value for its thickness, creates a walkable surface. | High cost, requires precise cutting to avoid gaps (thermal bridging). | Good |
| Cellulose (Blown-in) | Thermal, Acoustic, Eco-friendly | Fills irregular gaps perfectly, made from recycled materials. | Requires professional installation, can settle over time. | No |
| Multi-Foil | Reflects Radiant Heat | Thin and lightweight, easy to handle in tight spaces. | Low standalone thermal value, requires air gaps to be effective. | Good |
| Spray Foam | Excellent Thermal, Airtight Seal | Highest performance, creates a perfect air barrier for dust control. | Most expensive, requires professional installation, can be difficult to remove. | No |
Navigating UK Building Regulations for Loft Insulation
When upgrading loft insulation, it is important to be aware of the relevant UK Building Regulations. These are legal standards designed to ensure homes are energy-efficient, safe, and healthy. While a DIY top-up of existing insulation does not typically require a formal application, the work should still be completed to the current standards.
The key regulatory requirements for loft insulation are:
-
	Thermal Performance (U-value): The regulations are defined by a target U-value, which measures the rate of heat transfer through a structure. A lower U-value means better insulation. For existing loft spaces, the target U-value is 0.16W/m2K. Installing 270mm of mineral wool is the most common method used to achieve this standard.
-
	Ventilation: The regulations mandate that adequate ventilation must be maintained to prevent the risk of condensation. This reinforces the best practice of ensuring a clear 50mm air gap at the eaves to allow for continuous airflow through the loft space.
-
	Fire Safety: Insulation materials must meet relevant UK fire resistance standards. Furthermore, the installation must be carried out in a way that does not create a fire hazard, paying particular attention to the safe handling of electrical cables and hot light fittings as detailed in Tip 6.
-
	Loft Conversions: It is important to note that if a loft is being converted into a habitable room (e.g., a bedroom or office), much stricter regulations apply. This work requires a formal Building Regulations application and approval from the local authority. The thermal requirements are also higher, and there are additional rules regarding structural integrity, fire escapes, and staircases.
Table 2: UK Loft Insulation Regulations at a Glance
| Requirement | Standard for Existing Lofts (Cold Roof) |
| Target U-Value | 0.16W/m2K or lower |
| Recommended Thickness (Mineral Wool) | 270mm minimum |
| Eaves Ventilation Gap | 50mm minimum between insulation and roofing membrane |
| Fire Safety | Materials must meet UK standards; installation must not cover high-load cables or non-rated downlighters. |
Frequently Asked Questions (FAQ)
Q1: Should I remove my old, thin insulation before adding new layers? Generally, if the existing insulation is dry, in good physical condition, and free from contamination, there is no need to remove it. You can simply top it up to the required 270mm depth. However, if the old insulation shows any signs of dampness, mould, has been compressed, or has been contaminated by pests, it is highly recommended to have it professionally removed before new material is installed.
Q2: What's the difference between a 'cold loft' and a 'warm loft'? A 'cold loft' is the standard configuration in the UK, where insulation is laid on the floor of the loft (across the ceiling joists). This keeps the heat in the living space below, leaving the loft itself cold and outside the home's thermal envelope. It is the cheapest and most common method, and ideal for DIY. A 'warm loft' involves insulating the roof at the rafter level (in the slope of the roof). This makes the loft space part of the warm, insulated part of the house. This approach is more complex and expensive, and is typically only undertaken when converting the loft into a habitable room.
Q3: Is this a safe DIY project? For a homeowner with a standard, easily accessible loft that is free from damp and has straightforward wiring, installing blanket insulation is a very achievable and rewarding DIY project. However, safety must be the priority. If access is difficult, if there are any signs of damp or condensation, or if you are at all uncertain about identifying and safely handling electrical cables and light fittings, it is always the wisest choice to hire a qualified professional installer.
Q4: Can I over-insulate my loft? From a thermal perspective, adding insulation beyond 300-400mm provides increasingly diminished returns on energy savings. However, the main risk associated with "over-insulating" is not the depth of the material itself, but the improper installation that can accompany it. The most common and dangerous mistake is to push insulation so deep into the eaves that it blocks the essential ventilation gaps. The key is to insulate deeply across the main loft area while meticulously maintaining airflow at the roof's edge.
Conclusion
Reducing the persistent dust in your home is an achievable goal, but it requires a strategic approach that goes beyond surface cleaning. The evidence is clear: a poorly sealed and under-insulated loft is a primary engine of dust infiltration. The solution is a comprehensive, two-part process. The first and most critical step is to meticulously air-seal the ceiling plane, closing off every pathway that allows air to be drawn down from the loft. Only then should the second step be taken: installing a deep, continuous layer of insulation to the correct UK standard. One without the other is an incomplete and far less effective solution.
By following this 8-point plan, homeowners can achieve far more than just a cleaner house. The benefits are threefold: a significant reduction in household dust and allergens, leading to a healthier indoor environment; a warmer, more comfortable home free from cold spots and draughts; and a substantial, year-on-year reduction in energy bills. This project represents a powerful and worthwhile investment in the health, comfort, and efficiency of your home.
Disclaimer
The information provided in this report is for general informational and educational purposes only and does not constitute professional building or electrical advice. Home improvement projects involve inherent risks. Before commencing any work described in this guide, it is strongly recommended that you consult with suitably qualified and certified professionals. This includes, but is not limited to, a qualified electrician for any work involving electrical wiring or fixtures and a structural engineer for any project involving alterations to the roof structure or loft conversions. Users of this guide undertake any work at their own risk and are solely responsible for ensuring their safety and full compliance with all applicable UK Building Regulations and local authority standards.
