Isolcore CZ - Vaccum Insulation Panels

(0 Reviews)

(incl VAT) ~~£1076.33~~ £978.48

-10%

(excl VAT) £815.40

Estimated Delivery Date Jul 08, 2025 - Jul 11, 2025

No deliveries on weekends or holidays.

Size

Send Me a Quote

Every Order Plants 1 Tree and Protects 10 Existing Ones

Calculate Estimate Shipping Charges

Request a Quote

Our team is happy to fulfil custom orders, offer special bulk discounts you cannot get from the website. Please get in touch today to discuss your needs.

Your Name *

Mobile Number *

Email Address *

Delivery Postcode *

Quantity Required *

Date Required *

Your Queries/Comments

Product Details

Length	Width	Thickness	Sqm / Sheet	Box Quantity	Sqm / Box
1000mm	550mm	10mm	0.55	28	15.4
600mm	550mm	10mm	0.033	28	9.24
1000mm	350mm	10mm	0.35	28	9.8
550mm	350mm	10mm	0.1925	56	10.78
250mm	350mm	10mm	0.087	56	4.9
150mm	350mm	10mm	0.052	84	4.41
50mm	350mm	10mm	0.0175	252	5.25

All sizes can be used on floors, walls, ceilings, roofs and terraces.
The 550 mm wide sizes are particularly suitable for indoor installations where frame pitch 60 is used (the internal distance between upright and upright is 550 mm).
The 350 mm wide sizes are particularly suitable for outdoor installations where the 40 pitch of the structure is used. (the internal distance between upright and upright is 350 mm).

Isolcore CZ Panels represent the next generation of thermal insulation technology. These advanced CZ vacuum panels are engineered to deliver outstanding thermal performance, combining extremely low thermal conductivity with an innovative structure that’s impermeable to gas and steam. By dramatically reducing the mobility of air inside, these vacuum insulated panels maintain their insulation properties and structural integrity over time, even at low pressures.

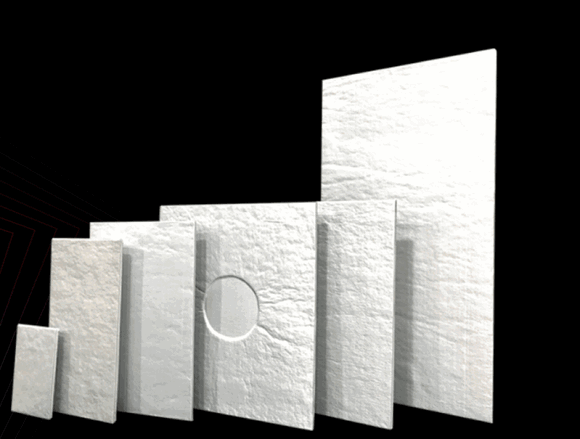

Isolcore vacuum panels consist of a pressed mineral component which is vacuum-packed by a special casing. The core of the CZ panel is mainly made of glass fiber and while the special casing consists glass fiber fabric and aluminum, which makes it much more resistant to cut and erosion, compared to all other vacuum panels currently on the market.

Vaccun Insulation Panels are deprived of the air inside them to obtain very low pressures: this process greatly reduces the mobility of the few air molecules remaining. In this way, the thermal conductivity decreases reaching values even lower than 0.002 W/mK. Reducing the air inside the panels the result is a reduction in energy transmission by thermal conduction, radiation and convection which is due to the high insulation standard of the product. This process removes the air’s thermal conductivity and the warm transfer obtaining a highly insulating product. Isolcore CZ Panels are rated A2 for fire resistance, providing added safety in critical applications.

Benefits:

The main advantages od th Vaccum Insulation Panels are the following:

Its high insulating performances ( 20 times higher than those of traditional insulation products) significantly lower energy costs
Its low depth, it is the most thinniest high performing insulation.
Its thermal performance are lasts 3 times longer over the time than traditional insulation products
It can be placed also on those buildings that must follow some restrictions related to the landscape they are located in, their history or to the environment laws of their Country

Key Benefits:

Ultra-low thermal conductivity for superior thermal insulation
Advanced vacuum panels with a sealed barrier impermeable to gas
Maintains performance by reducing the mobility of air inside
Compact, short depth design ideal for space-constrained areas
Durable construction combining fiberglass, EPS, and vacuum technology
Excellent fire resistance (A2)
Reliable insulation that stands up to length over time
Flexible installation system compatible with multiple substrates

Applications:

Isolcore Cz panel is highly recommended in the construction field to insulate:

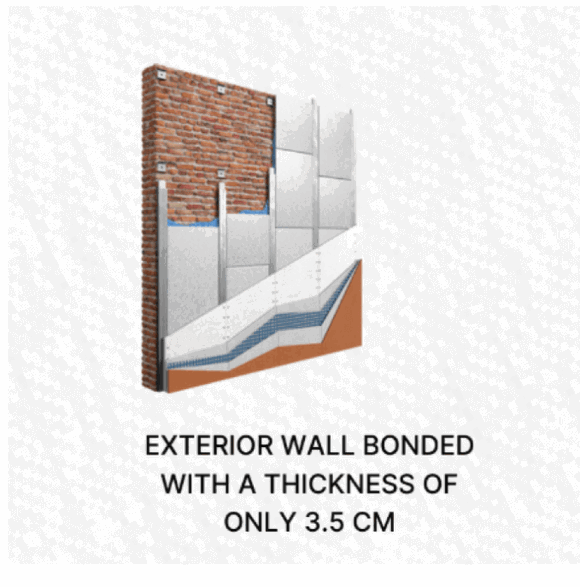

Exterior walls (behind a false wall - total figure of thickness 3-3.5 cm)

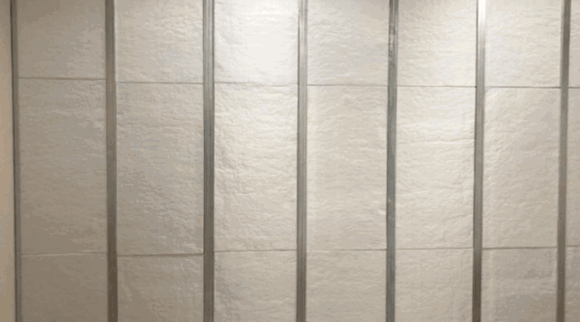

Interior walls (behind a false wall - total figure of thickness 2.5 cm)

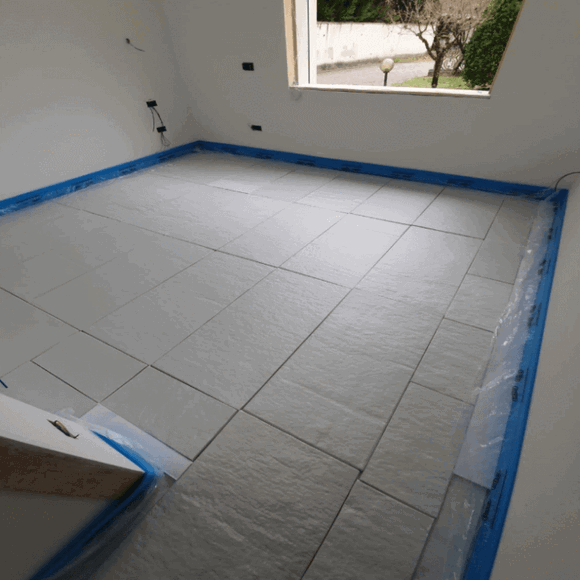

Terraces floors
Ceiling/garage
Undersceed (with or without underfloor heating)

For Installation Manuals please contact us

Isolcore CZ panels are designed to be the world's most thinest and best performing insulation
They have ~20 times better insulation compared to traditional insulation.
Its Thermal conductivity of just 0.002 W/mK*, saves energy and costs like no other insulation
Ideallly used to insulated external walls, internl walls, Terraces floors and ceilings
Please note - For non-box quantities, pelase get in touch. Lead time 7-10 working days.
For 13mm, 20mm and 30mm vaccum insualtion panels, please get in touch
For Installation Manuals please contact us

Insulation Type	Vaccum Insulated panels
Brand	Isolcore
Material	Fibreglass Core
Thickness	10 mm
Thermal conductability (K-Value)	0.002 W/mK
Fire Rating	Class A2
Compressive Strength	140 - 180 kPa
Density	400 kg/m3

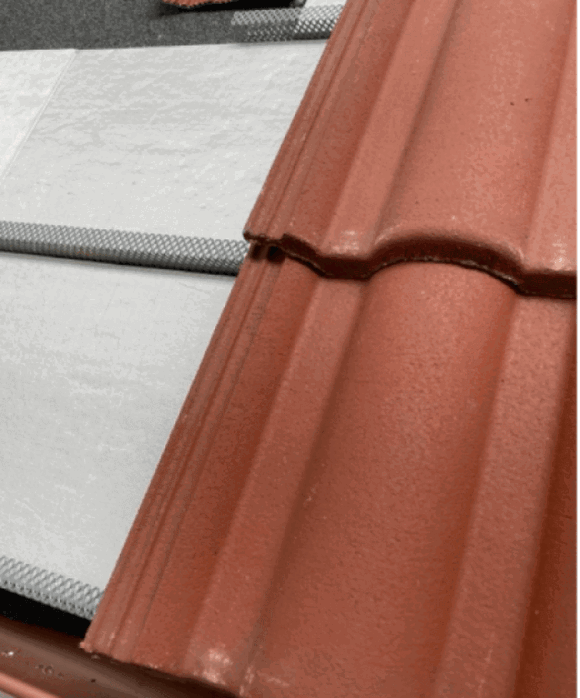

Applications	Roof, walls (internal and exterior), floor
Lead Time	7-10 working days

Download Datasheet
